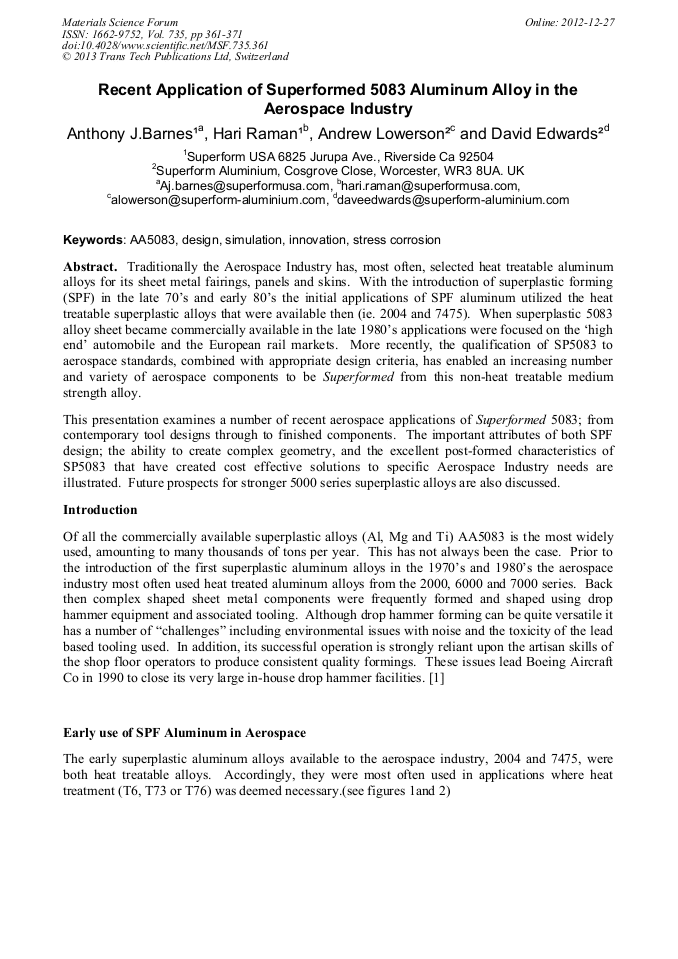

Recent Application of Superformed 5083 Aluminum Alloy in the Aerospace Industry

Abstract:

Traditionally the Aerospace Industry has, most often, selected heat treatable aluminum alloys for its sheet metal fairings, panels and skins. With the introduction of superplastic forming (SPF) in the late 70’s and early 80’s the initial applications of SPF aluminum utilized the heat treatable superplastic alloys that were available then (ie. 2004 and 7475). When superplastic 5083 alloy sheet became commercially available in the late 1980’s applications were focused on the ‘high end’ automobile and the European rail markets. More recently, the qualification of SP5083 to aerospace standards, combined with appropriate design criteria, has enabled an increasing number and variety of aerospace components to be Superformed from this non-heat treatable medium strength alloy. This presentation examines a number of recent aerospace applications of Superformed 5083; from contemporary tool designs through to finished components. The important attributes of both SPF design; the ability to create complex geometry, and the excellent post-formed characteristics of SP5083 that have created cost effective solutions to specific Aerospace Industry needs are illustrated. Future prospects for stronger 5000 series superplastic alloys are also discussed.

• Periodical: Materials Science Forum (Volume 735)
• Pages: 361-371
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.735.361
• Online since: December 2012
• Authors: Anthony J. Barnes, Hari Raman, Andrew Lowerson, David Edwards
• Keywords: AA5083 Aluminum Alloy, Design, Innovation, Simulation, Stress Corrosion

References

[1] Daniel G Sanders. Boeing Company Private Communication

[2] Supral 5000 Brochure Aluminum Building Panels Feb (1983)

[3] Alususse Formal 545 Brochure. Sept (1987)

[4] Airbus Approval of 'ALNOVI-1'Superplastic 5083 Aluminum Alloy Sheet Furakawa Review No26 (2004)

[5] Shumping Li, Mathilde Chobin,Andrew Heath; "New Developments in Superplastic Forming Simulation and Industrial Applications'. Key Engineering Materials VOL 433(2010) pp.211-217

DOI: 10.4028/www.scientific.net/kem.433.211

[6] C.C. Bampton, A.K. Ghosh, M.W. Mahoney "The Causes, Effects and Control of Cavitation" Proceedings Int.Conf. Cranfield, July (1985)

[7] B. Gershon, I. Eldor, I. Arbel & J. Milo. "Problems Encountered in SPF of Al 5083" Mat. Sc. Forum VOL 447-448 (2004) pp.259-264.

DOI: 10.4028/www.scientific.net/msf.447-448.259

[8] B.J. Dunwoody, RJ Stacey, AJ Barnes "Mechanical Properties of 5083 SPF after Superplastic Deformation" MRS. Vol 196 1990 pp.161-166.

DOI: 10.1557/proc-196-161

[9] Superform Aluminum 5083 Material Data Sheet-focus on Aerospace.

[10] John R. Bradley, John E. Carsley. "Past-Form Properties of SPF AA 5083 Al. Sheet" Conf. Advances in Superplastic and SPF. TMS (2004)

[11] Christopher B. Smith et.al. Key Engineering Materials VOL 433 (2010) pp.141-152.

[12] J.C. Chang, T.H. Chuang. "Degradation of Corrosion Resistance for 5083 after Thermal and SPF processes". JMEPEG (2000)

[13] Hari Raman, AJ Barnes, "Superplastic Diaphragm Forming" Key Engineering Materials VOL 433 (2010) pp.85-91.

DOI: 10.4028/www.scientific.net/kem.433.85

[14] NASA-Orbital Debris Program Office. "Micrometeoroid and orbital debris shielding" www.orbitaldebris.jsc.nasa.gov/project/shielding/html

[15] JR Davis, Ed., "Aluminum and Aluminum Alloys" ASM Specialty Handbook, ASM Int. 1993 p.33.

[16] R.Grimes et. al. "Development of Superplastic Properties in quasi Single Phase Alloys" Mat. Science Forum VOL 551-552 (2007) pp.357-364.

DOI: 10.4028/www.scientific.net/msf.551-552.357

[17] S.Spangel, A Burger. "Aleris Plate and Sheet Development for the Aircraft Industry" Aeromat 2011. Long Beach Ca
