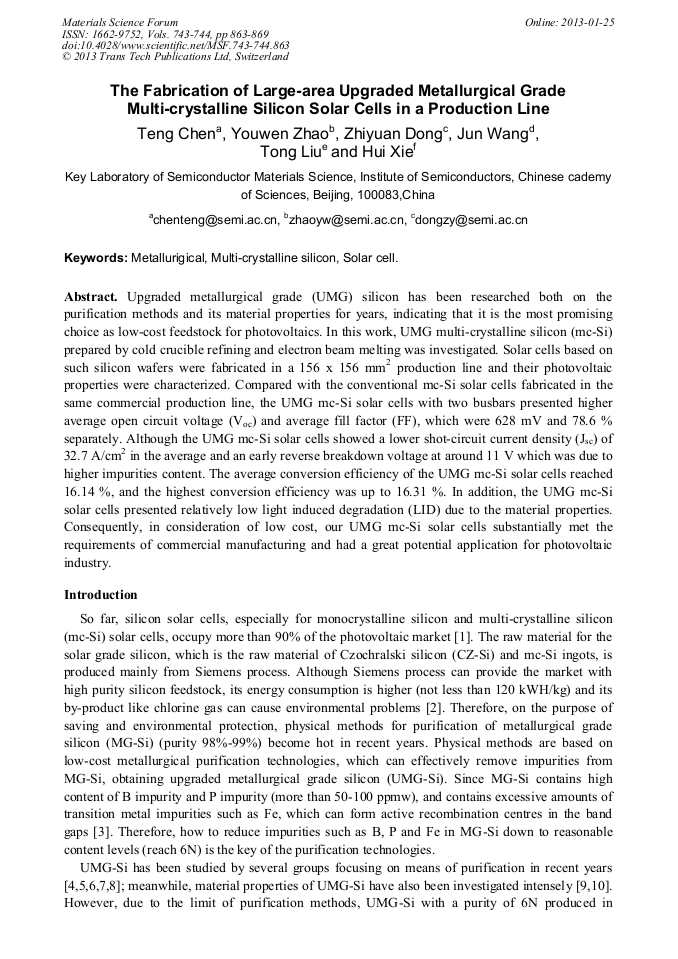

The Fabrication of Large-Area Upgraded Metallurgical Grade Multi-Crystalline Silicon Solar Cells in a Production Line

Abstract:

Upgraded metallurgical grade (UMG) silicon has been researched both on the purification methods and its material properties for years, indicating that it is the most promising choice as low-cost feedstock for photovoltaics. In this work, UMG multi-crystalline silicon (mc-Si) prepared by cold crucible refining and electron beam melting was investigated. Solar cells based on such silicon wafers were fabricated in a 156 x 156 mm² production line and their photovoltaic properties were characterized. Compared with the conventional mc-Si solar cells fabricated in the same commercial production line, the UMG mc-Si solar cells with two busbars presented higher average open circuit voltage (V_oc) and average fill factor (FF), which were 628 mV and 78.6 % separately. Although the UMG mc-Si solar cells showed a lower shot-circuit current density (J_sc) of 32.7 A/cm² in the average and an early reverse breakdown voltage at around 11 V which was due to higher impurities content. The average conversion efficiency of the UMG mc-Si solar cells reached 16.14 %, and the highest conversion efficiency was up to 16.31 %. In addition, the UMG mc-Si solar cells presented relatively low light induced degradation (LID) due to the material properties. Consequently, in consideration of low cost, our UMG mc-Si solar cells substantially met the requirements of commercial manufacturing and had a great potential application for photovoltaic industry.

• Periodical: Materials Science Forum (Volumes 743-744)
• Pages: 863-869
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.743-744.863
• Online since: January 2013
• Authors: Teng Chen, You Wen Zhao, Zhi Yuan Don, Jun Wang, Tong Liu, Hui Xie
• Keywords: Metallurigical, Multi-Crystalline Silicon (mc-Si), Solar Cell

References

[1] J. van der Geer, J.A.J. Hanraads, R.A. Lupton, The art of writing a scientific article, J. Sci. Commun. 163 (2000) 51-59.

[2] T. Surek, Crystal growth and materials research in photovoltaics: progress and challenges, Journal of Crystal Growth 275 (2005) 292-304.

DOI: 10.1016/j.jcrysgro.2004.10.093

[3] S. Pizzini, Towards solar grade silicon: Challenges and benefits for low cost photovoltaics, Solar Energy Materials and Solar Cells 94 (2010) 1528-1533.

DOI: 10.1016/j.solmat.2010.01.016

[4] S. Pizzini, C. Calligarich, On the effect of impurities on the photovoltaic behavior of solar grade silicon, Journal of The Electrochemical Society 131 (1984) 2128-2132.

DOI: 10.1149/1.2116033

[5] N. Yuge, M. Abe, K. Hanazawa, H. Baba, N. Nakamura, Y. Kato, Y. Sakaguchi, S. Hiwasa, F. Aratani, Purification of metallurgical-grade silicon up to solar grade, Progress in Photovoltaics: Research and Applications 9 (2001) 203-209.

DOI: 10.1002/pip.372

[6] C.P. Khattak, D.B. Joyce, F. Schmid, A simple process to remove boron from metallurgical grade silicon, Solar Energy Materials and Solar Cells 74 (2002) 77-89.

DOI: 10.1016/s0927-0248(02)00051-x

[7] G. Flamant, V. Kurtcuoglu, J. Murray, A. Steinfeld, Purification of metallurgical grade silicon by a solar process, Solar Energy Materials and Solar Cells 90 (2006) 2099-2106.

DOI: 10.1016/j.solmat.2006.02.009

[8] J. Degoulange, I. Périchaud, C. Trassya, S. Martinuzzi, Multicrystalline silicon wafers prepared from upgraded metallurgical feedstock, Solar Energy Materials and Solar Cells 92 (2008) 1269-1273.

DOI: 10.1016/j.solmat.2008.04.020

[9] T. Liu, Z. Dong, Y. Zhao, J. Wang, T. Chen, H. Xie, J. Li, H. Ni, D. Huo, Large scale purification of metallurgical silicon for solar cell by using electron beam melting, Journal of Crystal Growth 351 (2012) 19-22.

DOI: 10.1016/j.jcrysgro.2012.04.023

[10] B. Lim, M. Wolf, J. Schmidt, Carrier mobilities in multicrystalline silicon wafers made from UMG-Si, Physica Status Solidi C 8 (2011) 835-838.

DOI: 10.1002/pssc.201000144

[11] V. Osinniy, P. Bomholt, A.N. Larsen, E. Enebakk, A. -K. Søiland, R. Tronstad, Y. Safir, Factors limiting minority carrier lifetime in solar grade silicon produced by the metallurgical route, Solar Energy Materials and Solar Cells 95 (2011).

DOI: 10.1016/j.solmat.2010.09.017

[12] C. Alemany, C. Trassy, B. Pateyron, K.I. Li, Y. Delannoy, Refining of metallurgical-grade silicon by inductive plasma, Solar Energy Materials and Solar Cells 72 (2002) 41-48.

DOI: 10.1016/s0927-0248(01)00148-9

[13] Y. Delannoy, C. Alemany, K. -I. Li, P. Proulx, C. Trassy, Plasma-refining process to provide solar-grade silicon, Solar Energy Materials and Solar Cells 72 (2002) 69-75.

DOI: 10.1016/s0927-0248(01)00151-9

[14] A.F.B. Braga, S.P. Moreira, P.R. Zampieri, J.M. G. Bacchin, P.R. Mei, New processes for the production of solar-grade polycrystalline silicon: a review, Solar Energy Materials and Solar Cells 92 (2007) 418-424.

DOI: 10.1016/j.solmat.2007.10.003

[15] C. Modanese, M.D. Sabatino, A. -K. Søiland, K. Peter, L. Arnberg, Investigation of bulk and solar cell properties of ingots cast from compensated solar grade silicon, Progress in Photovoltaics: Research and Applications 19 (2011) 45-53.

DOI: 10.1002/pip.986

[16] D. Macdonald, A. Cuevas, Recombination in compensated crystalline silicon for solar cells, Journal of Applied Physics 109 (2011) 043704-1–043704-8.

DOI: 10.1063/1.3555588

[17] J. Schmidt, A.G. Aberle, R. Herzel, Investigation of carrier lifetime instabilities in Cz-grown silicon, Proceedings of the 26th IEEE Photovoltaic Specialists Conference, Anaheim, IEEE, New York, 1997, pp.13-18.

DOI: 10.1109/pvsc.1997.653914
