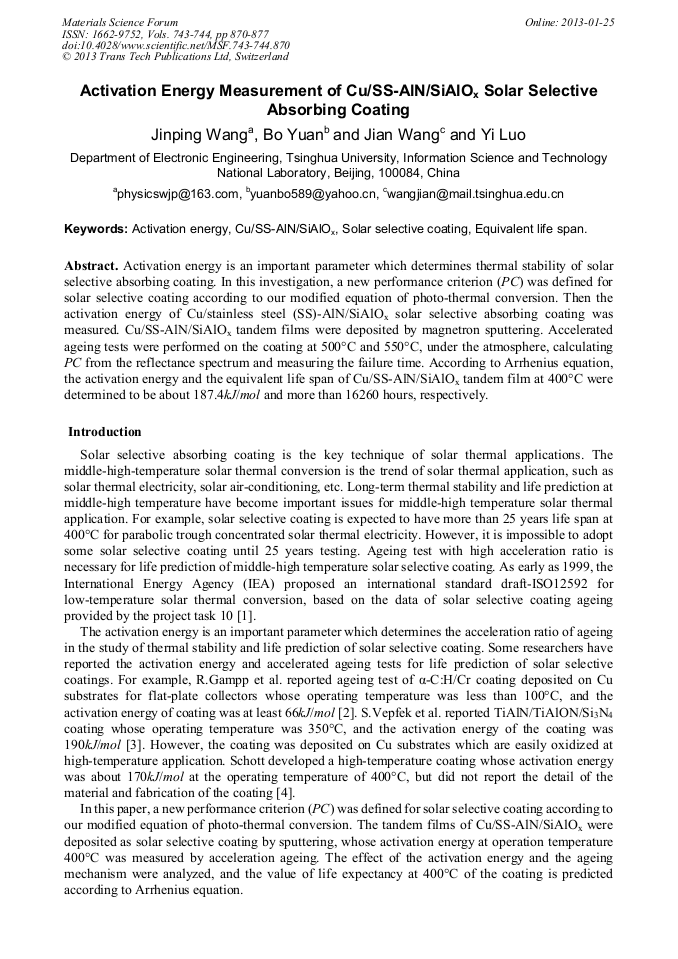

Activation Energy Measurement of Cu/SS-AlN/SiAlO_x Solar Selective Absorbing Coating

Abstract:

Activation energy is an important parameter which determines thermal stability of solar selective absorbing coating. In this investigation, a new performance criterion (PC) was defined for solar selective coating according to our modified equation of photo-thermal conversion. Then the activation energy of Cu/stainless steel (SS)-AlN/SiAlO_x solar selective absorbing coating was measured. Cu/SS-AlN/SiAlO_x tandem films were deposited by magnetron sputtering. Accelerated ageing tests were performed on the coating at 500°C and 550°C, under the atmosphere, calculating PC from the reflectance spectrum and measuring the failure time. According to Arrhenius equation, the activation energy and the equivalent life span of Cu/SS-AlN/SiAlO_x tandem film at 400°C were determined to be about 187.4kJ/mol and more than 16260 hours, respectively.

• Periodical: Materials Science Forum (Volumes 743-744)
• Pages: 870-877
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.743-744.870
• Online since: January 2013
• Authors: Jin Ping Wang, Bo Yuan, Jian Wang, Yi Luo
• Keywords: Activation Energy, Cu/SS-AlN/SiAlO_x, Equivalent Life Span, Solar Selective Coating

References

[1] S. Brunold, U. Frei, B. Carlsson, K.M. oller, M. K. ohl, Accelerated life testing of solar absorber coatings: testing procedure and results, Sol. Energy 68 (2000) 313-323.

DOI: 10.1016/s0038-092x(00)00034-7

[2] R. Gampp, P. Oelhafen, P. Gantenbein, S. Brunold, U. Frei, Accelerated ageing tests of chromium containing amorphous hydrogenated carbon coatings for solar collectors, Solar Energy Materials and Solar Cells 54 (1998) 369-377.

DOI: 10.1016/s0927-0248(98)00088-9

[3] H.C. Barshilia, N. Selvakumar, K.S. Rajam, J. Vac. Sci. Technol., A, Vac. Surf. Films, 25 (2007) 383.

[4] Alex Marker, Concentrating solar power-trough technology, SCHOTT North America, (2008).

[5] Qi-Chu Zhang, Recent progress in high-temperature solar selective coatings, Solar Energy Materials & Solar Cells, 62 (2000) 63-74.

DOI: 10.1016/s0927-0248(99)00136-1

[6] GB/T 17683. 1-1999, Solar energy-reference solar spectral irradiance at the ground at different receiving conditions-part 1: direct normal and hemispherical solar irradiance for air mass 1. 5.

DOI: 10.1520/e0891

[7] V.E. Dudley, G.J. Kolb, M. Sloan, and D. Kearney, Test results: SEGS LS-2 solar collector, 1994, Sand94-1884, Albuquerque, NM, Sandia National Laboratories.

DOI: 10.2172/70756

[8] Zhou Yipin, Zhao Yongjin, Zhang Yanjin, Arrhenius equation and activation energy, Journal of Shihezi Agricultural College, 25 (1995) 76-80.

[9] Information on http: /www. brukeroptics. com.

[10] Information on http: /www. schottsolar. com.

[11] Chen Hua, Research on high temperature oxidation and grain growth behaviors in austenitic stainless steels, Lanzhou University of Technology, (2011) 23-24.

[12] Yongfu Zhu, Kouji Mimura and Minoru Isshiki, Oxidation mechanism of copper at 623-1073K, materials transactions, 43 (2002) 2173-2176.

DOI: 10.2320/matertrans.43.2173

[13] Jei-Pil WANG and W. DCHO, Oxidation behavior of pure copper in oxygen and/or water vapor at intermediate temperature, ISIJ International, 49 (2009) 1926-(1931).

DOI: 10.2355/isijinternational.49.1926
