Design of Quasi-Planar Ridge SOI Waveguide Resonator for Integrated Optical Gyro

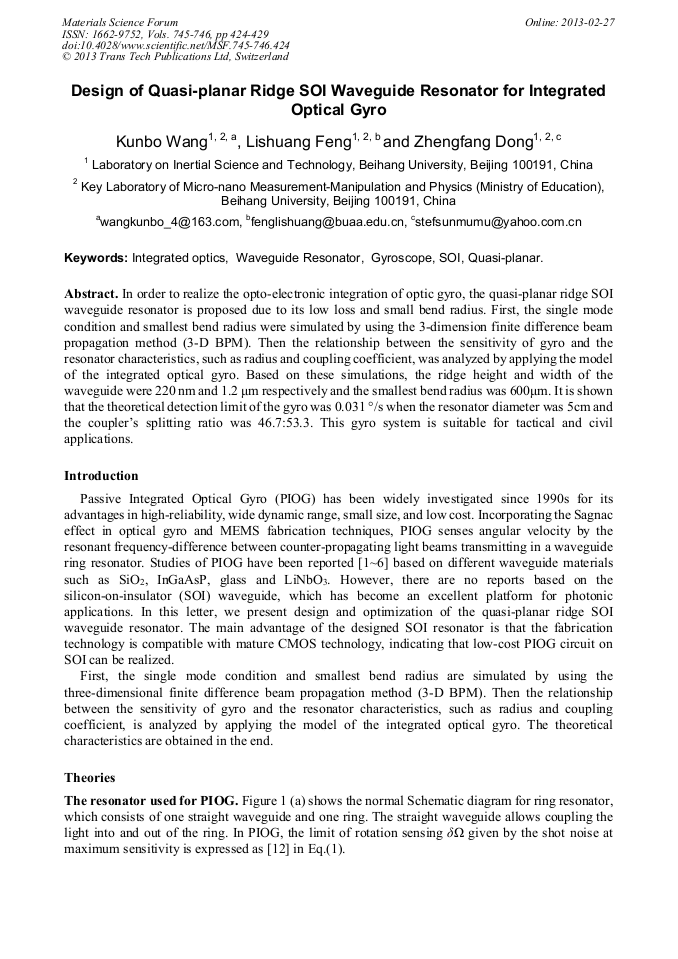

Abstract:

In order to realize the opto-electronic integration of optic gyro, the quasi-planar ridge SOI waveguide resonator is proposed due to its low loss and small bend radius. First, the single mode condition and smallest bend radius were simulated by using the 3-dimension finite difference beam propagation method (3-D BPM). Then the relationship between the sensitivity of gyro and the resonator characteristics, such as radius and coupling coefficient, was analyzed by applying the model of the integrated optical gyro. Based on these simulations, the ridge height and width of the waveguide were 220 nm and 1.2 μm respectively and the smallest bend radius was 600μm. It is shown that the theoretical detection limit of the gyro was 0.031 °/s when the resonator diameter was 5cm and the couplers splitting ratio was 46.7:53.3. This gyro system is suitable for tactical and civil applications.

• Periodical: Materials Science Forum (Volumes 745-746)
• Pages: 424-429
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.745-746.424
• Online since: February 2013
• Authors: Kun Bo Wang, Li Shuang Feng, Zheng Fang Dong
• Keywords: Gyroscope, Integrated Optics, Quasi-Planar, SOI, Waveguide Resonator

References

[1] H. Ma, X. Zhang, Z. Jin, D. Chun, Waveguide-type optical passive ring resonator gyro using phase modulation spectroscopy technique, Opt. Eng. 45(2006) 1-3.

DOI: 10.1117/1.2280645

[2] X. Zhang, P. Xu, Investigation of Back-Reflection of Ring Resonator in Resonator Optic Gyro, Acta Optic Sinica. 29(2009) 2302-2307.

DOI: 10.3788/aos20092908.2302

[3] H. Yu，C. Zhang，L. Feng, L. Hong, Research on Kerr-effect-induced noise of integrated optical gyroscope based on silicon on SiO2 waveguide resonator, Acta Optic Sinica. 31(2011) 1013003-1 - 1013003-8.

DOI: 10.3788/aos201131.1013003

[4] G. Li, K.A. Winick, B.R. Youmans, E.A.J., Vikjaer. Design, fabrication and characterization of an integrated optic passive resonator for optical gyroscopes, Proceedings of the Institute of Navigation's 60th Annual Meeting, 2004, 7-9.

[5] C. V. M. N. Ciminelli, Passaro, F.D. Olio, M.N. Armenise, Quality factor and finesse optimization in buried InGaAsP/InP ring resonators, J. Eur. Opt. Soc. 09032(2009) 1-10.

DOI: 10.2971/jeos.2009.09032

[6] C. Vannahme, H. Suche, S. Reza, R. Ricken, V. Quiring, W. Sohler, Integrated optical Ti: LiNbO3 ring resonator for rotation rate sensing, Proceedings of the European Conference on Integrated Optics (ECIO), Copenhagen, 2007, 25–27.

[7] Z. Zhou，X. Wang，J. Feng, Research progress and development trends of light source for silicon based micro-nano optoelectronic systems, Laser & Opt. Prog. 46( 2009) 28-35.

[8] G. T. Reed, G. Mashanovich, F. Y. Gardes. Silicon optical modulators, Nature Photon, 4(2010) 518-526.

DOI: 10.1038/nphoton.2010.179

[9] M. Asghari, A. V. Krishnamoorthy, Energy-efficient communication, Nature Photon, 5(2011) 268-270.

[10] L. W. Snyman, K. K. Ogudo, D. Foty, Development of a 0. 75 micron wavelength, all-silicon, CMOS based optical communication systems , Proc. of SPIE. 79430K (2011) 1-13.

DOI: 10.1117/12.873202

[11] L. Chen, K. Prestonb, M. Lipsonb, Silicon photonics for on-chip interconnects and telecommunications, Proc. of SPIE. 760509(2010) 1-11.

[12] H. Ma, Z. Jin, C. Ding, Y. Wang, Influence of Spectral Linewidth of Laser on Resonance Characteristics in Fiber Ring Resonator, Chi. J. Lasers. 30(2003) 731-734.

[13] U. Fischer, T. Zinke, J. R. Kropp, 0. 1 dB/cm Waveguide Losses in Single-Mode SOI Rib Waveguides, Photon. Technol. Lett. 8(1996) 647-648.

DOI: 10.1109/68.491567

[14] K. Solehmainen, T. Aalto, J. Dekker, Dry-Etched Silicon-on-Insulator Waveguides with Low Propagation and Fiber-Coupling Losses, J. Lightwave Technol. 23(2005) 3875-3880.

DOI: 10.1109/jlt.2005.857750

[15] S. Xiao, M. H. Khan, H. Shen, Compact silicon microring resonators with ultralow propagation loss in the C band, Opt. Express. 15(2007) 14467-14475.

DOI: 10.1364/oe.15.014467

[16] D. Dai, S. He, Analysis of Characteristics of Bent Rib Waveguides, J. Opt. Soc. Am. A. 21(2004) 113-121.

[17] M. A. Webster, R. M. Pafchek, G. Sukumaran, Low-loss quasi-planar ridge waveguides formed on thin silicon-on-insulator, Appl. Phy. Lett. 87(2005) 231108 1-3.

DOI: 10.1063/1.2139836

[18] M. A. Webster, R. M. Pafchek, A. Mitchell, Width Dependence of Inherent TM-Mode Lateral Leakage Loss in Silicon-On-Insulator Ridge Waveguides, Photon. Technol. Lett. 19(2007) 429-431.

DOI: 10.1109/lpt.2007.891979

[19] R. Pafchek, R. Tummidi, J. Li, Low-loss silicon-on-insulator shallow-ridge TE and TM waveguides formed using thermal oxidation, Appl. Opt. 48(2009) 958-963.

DOI: 10.1364/ao.48.000958
