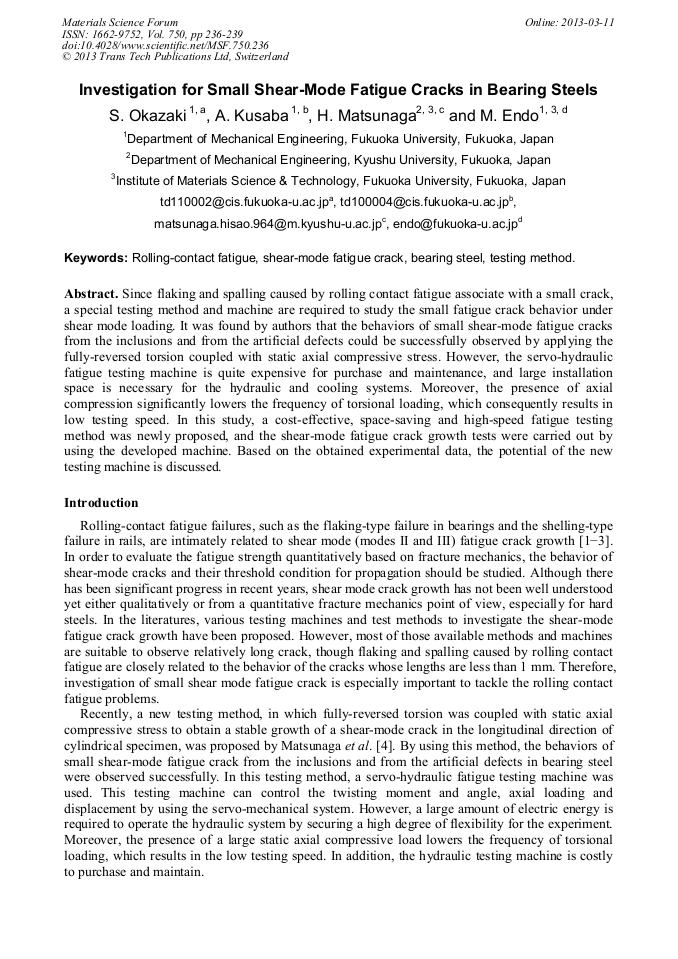

Investigation for Small Shear-Mode Fatigue Cracks in Bearing Steels

Abstract:

Flaking and spalling caused by rolling contact fatigue associate with a small crack, and a special testing method and machine are required to study the small fatigue crack behavior under shear mode loading. It was found by authors that the behaviors of small shear-mode fatigue cracks from the inclusions and the artificial defects could be successfully observed by applying the fully-reversed torsion coupled with static axial compressive stress. However, the servo-hydraulic fatigue testing machine is quite expensive for purchase and maintenance, and large installation space is necessary for the hydraulic and cooling systems. Moreover, the presence of axial compression significantly lowers the frequency of torsional loading, which consequently results in low testing speed. In this study, a cost-effective, space-saving and high-speed fatigue testing method was newly proposed, and the shear-mode fatigue crack growth tests were carried out by using the developed machine. Based on the obtained experimental data, the potential of the new testing machine is discussed.

You might also be interested in these eBooks

Advanced Materials Science and Technology (IFAMST-8)

View Preview

Info:

Periodical:

Materials Science Forum (Volume 750)

Pages:

236-239

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.750.236

Citation:

Cite this paper

Online since:

March 2013

Authors:

Saburo Okazaki, Atsushi Kusaba, Hisao Matsunaga, Masahiro Endo

Keywords:

Bearing Steel, Rolling Contact Fatigue (RCF), Shear-Mode Fatigue Crack, Testing Method

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. Beretta, M. Boniardi, M. Carboni and H. Desimone, Mode II fatigue failures at rail butt-welds, Engineering Failure Analysis, Vol. 12, (2005), 157-165.

DOI: 10.1016/j.engfailanal.2004.02.004

Google Scholar

[2] Y. Murakami, K. Takahashi and R. Kusumoto, Threshold and growth mechanism of fatigue cracks under mode II and III loadings, Fatigue Fract. Engng. Mater. Struct., Vol. 26, (2002), 523-531.

DOI: 10.1046/j.1460-2695.2003.00644.x

Google Scholar

[3] A. Otsuka, Y. Fujii and K. Maeda, A new testing method to obtain mode II fatigue crack growth characteristics of hard materials, Fatigue Fract. Engng. Mater. Struct., Vol. 27, (2004), 203-212.

DOI: 10.1111/j.1460-2695.2004.00747.x

Google Scholar

[4] H. Matsunaga, N. Shomura, S. Muramoto and M. Endo, Shear mode threshold for a small fatigue crack in a bearing steel, Fatigue Fract. Engng. Mater. Struct., Vol. 34, (2011), 72-82.

DOI: 10.1111/j.1460-2695.2010.01495.x

Google Scholar

[5] M.K. Kassir, and G.C. Sih, Three-dimensional stress distribution around an elliptical crack under arbitrary loadings, J. Appl. Mech. ASME, Vol. 33, (1966), 601-611.

DOI: 10.1115/1.3625127

Google Scholar
