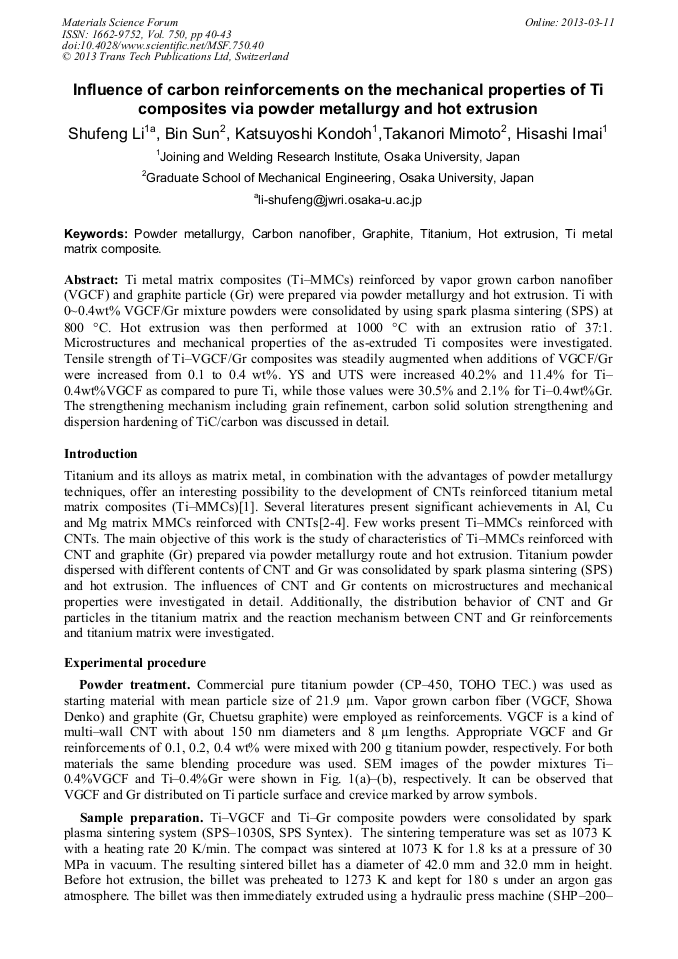

Influence of Carbon Reinforcements on the Mechanical Properties of Ti Composites via Powder Metallurgy and Hot Extrusion

Abstract:

Ti metal matrix composites (Ti–MMCs) reinforced by vapor grown carbon nanofiber (VGCF) and graphite particle (Gr) were prepared via powder metallurgy and hot extrusion. Ti with 0~0.4wt% VGCF/Gr mixture powders were consolidated by using spark plasma sintering (SPS) at 800 °C. Hot extrusion was then performed at 1000 °C with an extrusion ratio of 37:1. Microstructures and mechanical properties of the as-extruded Ti composites were investigated. Tensile strength of Ti–VGCF/Gr composites was steadily augmented when additions of VGCF/Gr were increased from 0.1 to 0.4 wt%. YS and UTS were increased 40.2% and 11.4% for Ti–0.4wt%VGCF as compared to pure Ti, while those values were 30.5% and 2.1% for Ti–0.4wt%Gr. The strengthening mechanism including grain refinement, carbon solid solution strengthening and dispersion hardening of TiC/carbon was discussed in detail.

• Periodical: Materials Science Forum (Volume 750)
• Pages: 40-43
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.750.40
• Online since: March 2013
• Authors: Shu Feng Li, Bin Sun, Katsuyoshi Kondoh, Takanori Mimoto, Hisashi Imai
• Keywords: Carbon Nanofiber, Graphite, Hot Extrusion, Powder Metallurgy (PM), Ti Metal Matrix Composite, Titanium

References

[1] Bakshi S.R., Lahiri D., Agarwal A., 2010. 55. 1 p.41–64.

[2] Kwon H, Estili M, Takagi K, Miyazaki T, Kawasaki A, Carbon 2009; 47: 3; 570–577.

[3] Chen WX, Tu JP, Wang LY, Gan HY, Xu ZD, Zhang XB, Carbon 2003; 41; 215–222.

[4] Li Q, Rottmair CA, Singer RF, Comp Sci Tech 2010; 70: 16; 2242–2247.

[5] Knacke K. O., Hesselmann K., New York: Springer–verlag, 1991. 264 p.2501–2104.

[6] John. D. Verhoeven, John Wiley & sons, Inc., Canada, 1975. p.138–146.
