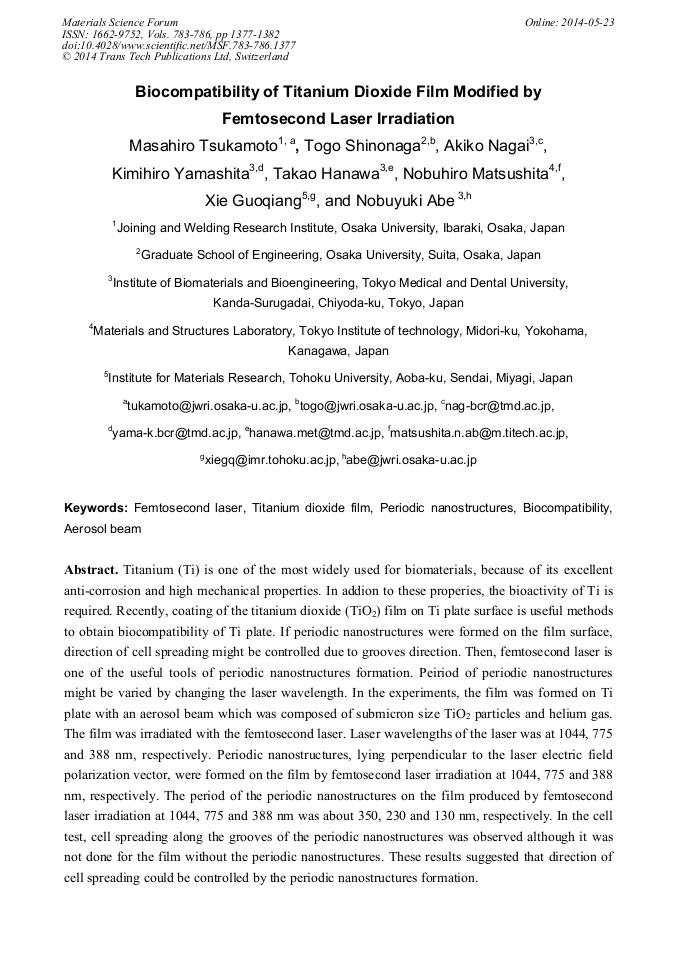

Biocompatibility of Titanium Dioxide Film Modified by Femtosecond Laser Irradiation

Abstract:

Titanium (Ti) is one of the most widely used for biomaterials, because of its excellent anti-corrosion and high mechanical properties. In addion to these properies, the bioactivity of Ti is required. Recently, coating of the titanium dioxide (TiO₂) film on Ti plate surface is useful methods to obtain biocompatibility of Ti plate. If periodic nanostructures were formed on the film surface, direction of cell spreading might be controlled due to grooves direction. Then, femtosecond laser is one of the useful tools of periodic nanostructures formation. Peiriod of periodic nanostructures might be varied by changing the laser wavelength. In the experiments, the film was formed on Ti plate with an aerosol beam which was composed of submicron size TiO₂ particles and helium gas. The film was irradiated with the femtosecond laser. Laser wavelengths of the laser was at 1044, 775 and 388 nm, respectively. Periodic nanostructures, lying perpendicular to the laser electric field polarization vector, were formed on the film by femtosecond laser irradiation at 1044, 775 and 388 nm, respectively. The period of the periodic nanostructures on the film produced by femtosecond laser irradiation at 1044, 775 and 388 nm was about 350, 230 and 130 nm, respectively. In the cell test, cell spreading along the grooves of the periodic nanostructures was observed although it was not done for the film without the periodic nanostructures. These results suggested that direction of cell spreading could be controlled by the periodic nanostructures formation

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 1377-1382
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.1377
• Online since: May 2014
• Authors: Masahiro Tsukamoto*, Togo Shinonaga, Akiko Nagai, Kimihiro Yamashita, Takao Hanawa, Nobuhiro Matsushita, Guo Qiang Xie, Nobuyuki Abe
• Keywords: Aerosol Beam, Biocompatibility, Femtosecond Laser, Periodic Nanostructures, Titanium Dioxide Film

References

[1] X. Liu, P.K. Chub, C. Ding, Surface modification of titanium, titanium alloys and related materials for biomedical applications, Materials Science and Engineering. R 47 (2004) 49-121.

DOI: 10.1016/j.mser.2004.11.001

[2] W. E. Yang, H. H. Huang, Improving the biocompatibility of titanium surface through formation of a TiO2 nano-mesh layer, Thin Solid Films. 518 (2010) 7545-7550.

DOI: 10.1016/j.tsf.2010.05.045

[3] L.H. Li, Y.M. Kong, H.W. Kim, Y.W. Kim, H.E. Kim, S.J. Heo, J.Y. Koak, Improved biological performance of Ti implants due to surface modification by micro-arc oxidation, Biomaterials. 25 (2004) 2867–2875.

DOI: 10.1016/j.biomaterials.2003.09.048

[4] J. Akedo, M. Ichiki, K. Kikuchi, R. Maeda, Jet molding system for realization of three-dimensional micro-structures, Sens. Actuators A. 69 (1998) 106-112.

DOI: 10.1016/s0924-4247(98)00059-4

[5] M. Tsukamoto, T. Fujihara, N. Aba, S. Miyake, M. Katto, T. Nakayama, J. Akedo, Hydroxyapatite Coating on Titanium Plate with an Ultra Fine Particle Beam, Jpn. J. Appl. Phys. 42 (2003) L 120-L 122.

DOI: 10.1143/jjap.42.l120

[6] J. Lu, M. P. Rao, N. C. MacDonald, D. Khang, T. J. Webster, Improved endothelial cell adhesion and proliferation on patterned titanium surfaces with rationally designed, micrometer to nanometer features, Acta Biomater. 4 (2008) 192-201.

DOI: 10.1016/j.actbio.2007.07.008

[7] M. Goto, T. Tsukahara, K. Sato, T. Kitamori, Micro- and nanometer-scale patterned surface in a microchannel for cell culture in microfluidic devices, Anal Bioanal Chem. 390 (2008) 817-823.

DOI: 10.1007/s00216-007-1496-4

[8] K. Matsuzaka, X.F. Walboomers, J.E. de Ruijter, J.A. Jansen, The effect of poly-L-lactic acid with parallel surface micro groove on osteoblast-like cells in vitro, Biomaterials. 20 (1999) 1293-1301.

DOI: 10.1016/s0142-9612(99)00029-0

[9] T. Shinonaga, M. Tsukamoto, S. Maruyama, N. Matsushita, T. Wada, X. Wang, H. Honda, M. Fujita, N. Abe, A. Inoue, Transformation of Surface Morphology by Femtosecond Laser Irradiation for Improving Bioactivity of the Ti-based Bulk Metallic Glass, The Review of Laser Engineering. 39 5 (2011).

DOI: 10.2184/lsj.39.347

[10] M. Tsukamoto, K. Asuka, H. Nakano, M. Hashida, M. Katto, N. Abe, M. Fujita, Periodic microstructures produced by femtosecond laser irradiation on titanium plate, Vacuum. 80 (2006) 1346-1350.

DOI: 10.1016/j.vacuum.2006.01.016

[11] M. Tsukamoto, T. Kayahara, H. Nakano, M. Hashida, M. Katto, M. Fujita, M. Tanaka, N. Abe, Microstructures formation on titanium plate by femtosecond laser ablation, J. Phys. Conf. Ser. 59 (2007) 666-669.

DOI: 10.1088/1742-6596/59/1/140

[12] K. Okamuro, M. Hashida, Y. Miyasaka, Y. Ikuta, S. Tokita, S. Sakabe, Laser fluence dependence of periodic grating structures formed on metal surfaces under femtosecond laser pulse irradiation, Phys. Rev. B 82. (2010) 165417-1 - 165417-5.

DOI: 10.1103/physrevb.82.165417

[13] S.K. Das, D. Dufft, A. Rosenfeld, J. Bonse, Femtosecond laser induced quasiperiodic nanostructures on TiO2 surfaces, J. Appl. Phys. 105 (2009) 084912-1 - 084912-5.

DOI: 10.1063/1.3117509

[14] D. Dufft, A. Rosenfeld, S.K. Das, J. Bonse, Femtosecond laser-induced periodic surface structures revisited: A comparative study on ZnO, J. Appl. Phys. 105 (2009) 034908-1 - 034908-9.

DOI: 10.1063/1.3074106

[15] N. Yasumaru, K. Miyazaki, J. Kiuchi, Femtosecond-laser-induced nanostructure formed on hard thin films of TiN and DLC, Appl. Phys. A: Mater. Sci. Process. 76 (2003) 983-985.

DOI: 10.1007/s00339-002-1979-2

[16] T. Shinonaga, M. Tsukamoto, N. Ryousuke, Y. Ito, A. Nagai, K. Yamashita, T. Hanawa, N. Matsushita, X. Guoqiang, N. Abe, Formation of Periodic Nanostructures on Titanium dioxide film by femtosecond laser irradiation, Trans. of JWRI. 41 1 (2012).

DOI: 10.2351/1.5062529
