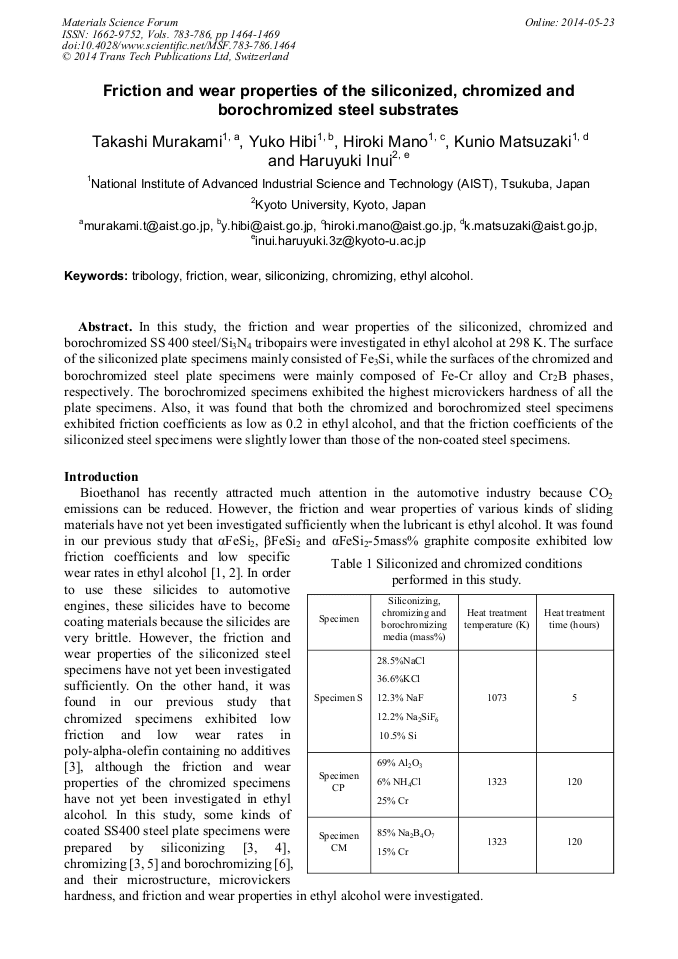

Friction and Wear Properties of the Siliconized, Chromized and Borochromized Steel Substrates

Abstract:

In this study, the friction and wear properties of the siliconized, chromized and borochromized SS 400 steel/Si₃N₄ tribopairs were investigated in ethyl alcohol at 298 K. The surface of the siliconized plate specimens mainly consisted of Fe₃Si, while the surfaces of the chromized and borochromized steel plate specimens were mainly composed of Fe-Cr alloy and Cr₂B phases, respectively. The borochromized specimens exhibited the highest microvickers hardness of all the plate specimens. Also, it was found that both the chromized and borochromized steel specimens exhibited friction coefficients as low as 0.2 in ethyl alcohol, and that the friction coefficients of the siliconized steel specimens were slightly lower than those of the non-coated steel specimens.

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 1464-1469
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.1464
• Online since: May 2014
• Authors: Takashi Murakami*, Yuko Hibi, Hiroki Mano, Kunio Matsuzaki, Haruyuki Inui
• Keywords: Chromizing, Ethyl Alcohol, Friction, Siliconizing, Tribology, Wear

References

[1] T. Murakami, Y. Hibi, H. Mano, K. Matsuzaki, H. Inui, Friction and wear properties of Fe-Si intermetallic compounds in ethyl alcohol, Intermetallics 20 (2012) 68-75.

DOI: 10.1016/j.intermet.2011.08.017

[2] T. Murakami, K. Matsuzaki, H. Inui, Microstructure, friction and wear properties of αFeSi2-graphite composite specimens, Tribol. Int. 67 (2013) 98-103.

DOI: 10.1016/j.triboint.2013.07.005

[3] T. Murakami, K. Matsuzaki, Y. Gomi, S. Sasaki and H. Inui, Microstructure and tribological properties of gray cast iron specimens coated by aluminizing, boronizing, chromizing and siliconizing, MRS Online Proceedings Library 1516 (2013) 115-120.

DOI: 10.1557/opl.2012.1726

[4] K. Tatemoto, Y. Ono, R.O. Suzuki, Silicide coating on refractory metals in molten salt, J. Phys. Chem. Solids 66 (2005) 526-529.

DOI: 10.1016/j.jpcs.2004.06.043

[5] S.Y. Lee, G.S. Kim, B. S. Kim, Mechanical properties of duplex layer formed on AISI 403 stainless steel by chromizing and boronizing treatment, Sur. Coat. Technol. 177-178 (2004) 178-184.

DOI: 10.1016/j.surfcoat.2003.07.009

[6] M. Aghaie-Khafri, M. Mohamadpour Nazar Abady, A Study of Chromo-Boronizing on DIN 1. 2714 Steel by Duplex Surface Treatment, JOM 64 (2012) 694-701.

DOI: 10.1007/s11837-012-0337-x

[7] M.Z. Huq, J.P. Celis, Fretting wear of multilayered (Ti, Al)N/TiN coatings in air of different relative humidity, Wear 225-229 (1999) 53-64.

DOI: 10.1016/s0043-1648(98)00348-2

[8] M. Shuaib, T.J. Davies, Wear behaviour of a REFEL SiC containing fluorides up to 900°C, Wear 249(2001) 20-30.

DOI: 10.1016/s0043-1648(00)00545-7
