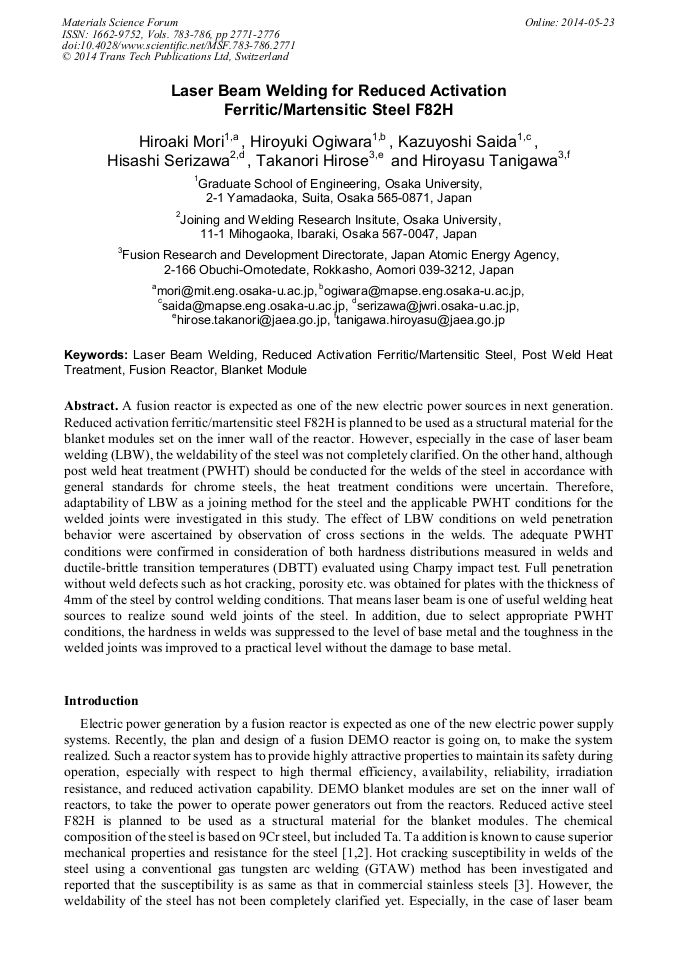

Laser Beam Welding for Reduced Activation Ferritic/Martensitic Steel F82H

Abstract:

A fusion reactor is expected as one of the new electric power sources in next generation. Reduced activation ferritic/martensitic steel F82H is planned to be used as a structural material for the blanket modules set on the inner wall of the reactor. However, especially in the case of laser beam welding (LBW), the weldability of the steel was not completely clarified. On the other hand, although post weld heat treatment (PWHT) should be conducted for the welds of the steel in accordance with general standards for chrome steels, the heat treatment conditions were uncertain. Therefore, adaptability of LBW as a joining method for the steel and the applicable PWHT conditions for the welded joints were investigated in this study. The effect of LBW conditions on weld penetration behavior were ascertained by observation of cross sections in the welds. The adequate PWHT conditions were confirmed in consideration of both hardness distributions measured in welds and ductile-brittle transition temperatures (DBTT) evaluated using Charpy impact test. Full penetration without weld defects such as hot cracking, porosity etc. was obtained for plates with the thickness of 4mm of the steel by control welding conditions. That means laser beam is one of useful welding heat sources to realize sound weld joints of the steel. In addition, due to select appropriate PWHT conditions, the hardness in welds was suppressed to the level of base metal and the toughness in the welded joints was improved to a practical level without the damage to base metal.

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 2771-2776
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.2771
• Online since: May 2014
• Authors: Hiroaki Mori*, Hiroyuki Ogiwara, Kazuyoshi Saida, Hisashi Serizawa, Takanori Hirose, Hiroyasu Tanigawa
• Keywords: Blanket Module, Fusion Reactor, Laser Beam Welding, Post Weld Heat Treatment, Reduced Activation Ferritic/Martensitic Steel

References

[1] M. Tamura, H. Hayakawa, M. Tanimura, A. Hishinuma and T. Kondo, Development of potential low activation ferritic and austenitic steels, Journal of Nuclear Materials, 141-143 (1986) 1067-1073.

DOI: 10.1016/0022-3115(86)90144-3

[2] T. Sawai, K. Shiba, A. Hishimura, Microstructure of welded and thermal-aged low activation steel F82H IEA heat, Journal of Nuclear Materials, 283-287 (2000) 657-661.

DOI: 10.1016/s0022-3115(00)00089-1

[3] H. Ogiwara, H. Mori, H. Tokuichi, K. Saida, K. Nishimoto, H. Tanigawa, Hot Cracking Susceptibility of F82H with Controlled Ta Content, Journal of Nuclear Materials, 417 (2011) 59-62.

DOI: 10.1016/j.jnucmat.2011.01.056

[4] H. Serizawa, S. Nakamura, M. Tanaka, Y. Kawahito, H. Tanigawa, S. Katayama, Effect of mechanical restraint on weldability of reduced activation ferritic/martensitic steel thick plates, Journal of Nuclear Materials, 417 (2011) 55-58.

DOI: 10.1016/j.jnucmat.2011.01.054

[5] S. Katayama, Y. Abe, M. Mizutani, Y. Kawahito, Development of Deep Penetration Welding Technology with High Brightness Laser under Vacuum, Physics Procedia, 12 (2011) 75-80.

DOI: 10.1016/j.phpro.2011.03.010
