The Effect of Shielded Metal Arc and Gas Tungsten Arc Welding Methods on 308L Stainless Steel Weldments

Shao Pin Lin; Ge Ping Yu; J.Y. Huang; H.J. Chen; R.C. Kuo; E Wen Huang; Jia Hong Huang

doi:10.4028/www.scientific.net/MSF.783-786.2753

Paper Titles

Micro-Tensile Behavior at a High Temperature in an AZ31 Magnesium Alloy Processed by ECAP
p.2726

Twinning-Induced Formation of Nanostructure in Commercial-Purity Titanium
p.2732

Thermal Joining with Zinc Based Solder – New Potentials for Structural Lightweight Design
p.2741

Microstructural Evolution in Dissimilar Joint of Al Alloy and Cu during Ultrasonic Welding
p.2747

The Effect of Shielded Metal Arc and Gas Tungsten Arc Welding Methods on 308L Stainless Steel Weldments
p.2753

Advanced TSV Filling Technology for 3-Dimensional Electronic Packaging
p.2758

Effects of Material Property and Structural Design on the Stress Reduction of the Joints in Electronics Devices
p.2765

Laser Beam Welding for Reduced Activation Ferritic/Martensitic Steel F82H
p.2771

Sources and Consequences of Residual Stresses due to Welding
p.2777

HomeMaterials Science ForumMaterials Science Forum Vols. 783-786The Effect of Shielded Metal Arc and Gas Tungsten...

The Effect of Shielded Metal Arc and Gas Tungsten Arc Welding Methods on 308L Stainless Steel Weldments

Abstract:

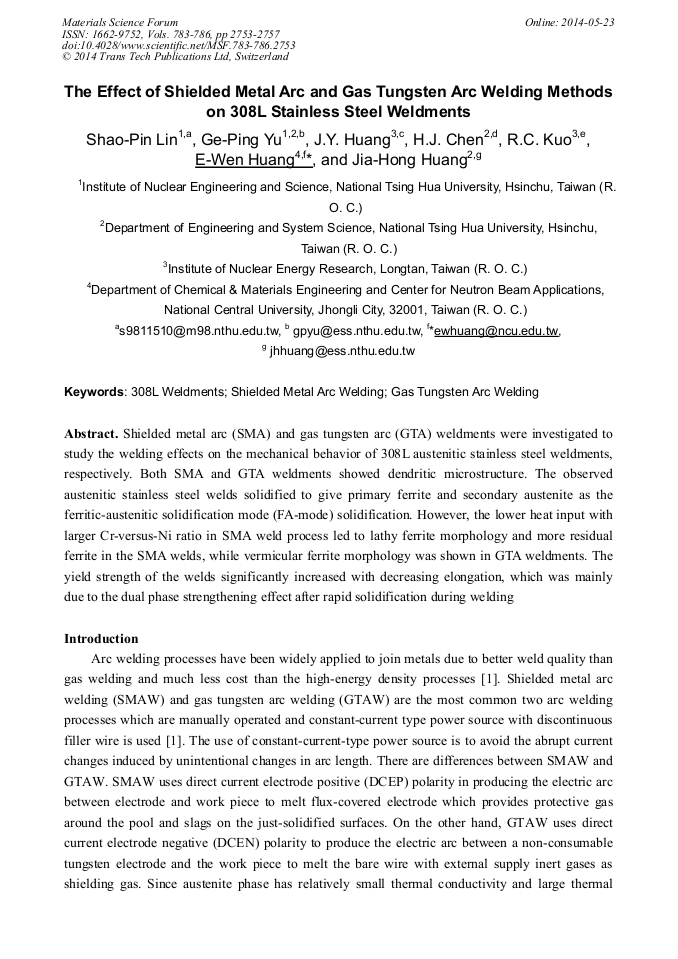

Shielded metal arc (SMA) and gas tungsten arc (GTA) weldments were investigated to study the welding effects on the mechanical behavior of 308L austenitic stainless steel weldments, respectively. Both SMA and GTA weldments showed dendritic microstructure. The observed austenitic stainless steel welds solidified to give primary ferrite and secondary austenite as the ferritic-austenitic solidification mode (FA-mode) solidification. However, the lower heat input with larger Cr-versus-Ni ratio in SMA weld process led to lathy ferrite morphology and more residual ferrite in the SMA welds, while vermicular ferrite morphology was shown in GTA weldments. The yield strength of the welds significantly increased with decreasing elongation, which was mainly due to the dual phase strengthening effect after rapid solidification during welding

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 783-786)

Pages:

2753-2757

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.783-786.2753

Citation:

Cite this paper

Online since:

May 2014

Authors:

Shao Pin Lin, Ge Ping Yu, J.Y. Huang, H.J. Chen, R.C. Kuo, E Wen Huang*, Jia Hong Huang

Keywords:

308L Weldments, Gas Tungsten Arc Welding, Shielded Metal Arc Welding

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Kuo, S., Welding metallurgy. 1987, New York: John Wiley & Sons, Inc.

Google Scholar

[2] Shankar, V., et al., Solidification cracking in austenitic stainless steel welds. Sadhana-Academy Proceedings in Engineering Sciences, 2003. 28: pp.359-382.

DOI: 10.1007/bf02706438

Google Scholar

[3] Tabatabaeipour, S.M. and F. Honarvar, A comparative evaluation of ultrasonic testing of AISI 316L welds made by shielded metal arc welding and gas tungsten arc welding processes. Journal of Materials Processing Technology, 2010. 210(8): pp.1043-1050.

DOI: 10.1016/j.jmatprotec.2010.02.013

Google Scholar

[4] Silva, C.C., et al., Microstructure, hardness and petroleum corrosion evaluation of 316L/AWS E309MoL-16 weld metal. Materials Characterization, 2009. 60(4): pp.346-352.

DOI: 10.1016/j.matchar.2008.09.017

Google Scholar

[5] Boyce, B.L., P.L. Reu, and C.V. Robino, The constitutive behavior of laser welds in 304L stainless steel determined by digital image correlation. Metallurgical and Materials Transactions a-Physical Metallurgy and Materials Science, 2006. 37A(8): pp.2481-2492.

DOI: 10.1007/bf02586221

Google Scholar
