Twinning-Induced Formation of Nanostructure in Commercial-Purity Titanium

Abstract:

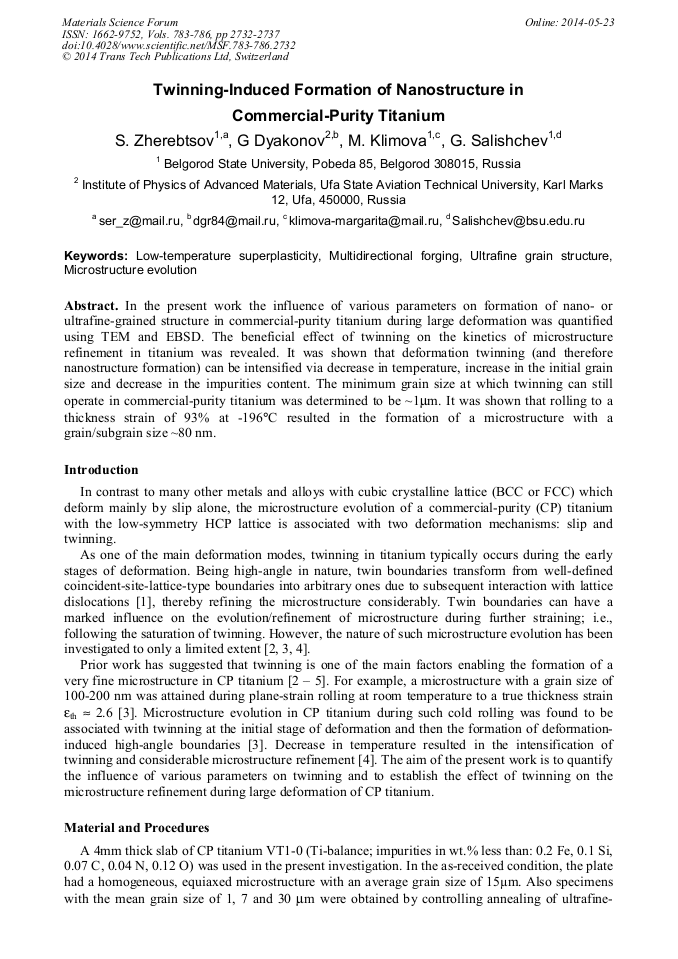

In the present work the influence of various parameters on formation of nanoor ultrafine-grained structure in commercial-purity titanium during large deformation was quantified using TEM and EBSD. The beneficial effect of twinning on the kinetics of microstructure refinement in titanium was revealed. It was shown that deformation twinning (and therefore nanostructure formation) can be intensified via decrease in temperature, increase in the initial grain size and decrease in the impurities content. The minimum grain size at which twinning can still operate in commercial-purity titanium was determined to be ~1μm. It was shown that rolling to a thickness strain of 93% at-196°C resulted in the formation of a microstructure with a grain/subgrain size ~80 nm.

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 2732-2737
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.2732
• Online since: May 2014
• Authors: Sergey V. Zherebtsov*, Grigory Dyakonov, M. Klimova, Gennady A. Salishchev
• Keywords: Low-Temperature Superplasticity, Microstructure Evolution, Multidirectional Forging, Ultrafine Grain Structure

References

[1] G. Salishchev et al., Changes in misorientations of grain boundaries in titanium during deformation, Mater. Charact., 61 (2010) 732-739.

DOI: 10.1016/j.matchar.2010.04.005

[2] Y.B. Chun et al., Effect of deformation twinning on microstructure and texture evolution during cold rolling of CP-titanium, Mater. Sci. Eng. 398A (2005) 209-219.

DOI: 10.1016/j.msea.2005.03.019

[3] S.V. Zherebtsov et al., Evolution of grain and subgrain structure during cold rolling of commercial-purity titanium, Mater. Sci. Eng. 528A (2011) 3474-3479.

DOI: 10.1016/j.msea.2011.01.039

[4] S.V. Zherebtsov et al., Formation of nanostructures in commercial-purity titanium via cryorolling, Acta Mater. 61 (2013) 1167-1178.

DOI: 10.1016/j.actamat.2012.10.026

[5] V.A. Moskalenko, A.R. Smirnov, A.V. Moskalenko, Cryomechanically obtained nanocrystalline titanium: microstructure and mechanical properties, Low. Temp. Phys. 35 (2009) 905-907.

DOI: 10.1063/1.3266928

[6] S. Zherebtsov et al., Strength and ductility-related properties of ultrafine grained two-phase titanium alloy produced by warm multiaxial forging, Mater. Sci Eng. 536A (2012) 190-196.

DOI: 10.1016/j.msea.2011.12.102

[7] J.W. Christian, S. Mahajan, Deformation twinning, Prog. Mater. Sci. 39 (1995) 1-157.

[8] M.A. Meyers, O. Vohringer, V.A. Lubarda, The onset of twinning in metals: a constitutive description. Acta Mater. 49 (2001) 4025-4039.

DOI: 10.1016/s1359-6454(01)00300-7
