Hybrid Fiber Laser – Arc Welding of High Strength Low Alloy Steel

Abstract:

High strength low alloy (HSLA) grade 80 (HSLA-80) steel with a thickness of 9.1-mm was successfully welded in a single pass using a 5-kW fiber laser combined with an arc welding process. It was found that the maximum gap size in the Y-groove butt joint configuration should remain below 0.2 mm for a 9.1-mm section thickness. Sound butt joints with no welding cracks but some minor microporosity were successfully obtained. However, an underfill defect was frequently observed on the top surface of the weldments. Underfilling could be mitigated through increasing the filler wire addition so as to exceed the groove volume; however, due to significant evaporation and expulsion of the molten pool at the high laser power density, the underfill defect would be difficult to fully eliminate. At slow cooling rates, slight softening in the heat affected zone (HAZ) was present in the mid-thickness region but its elimination is possible at high welding speeds.

You might also be interested in these eBooks

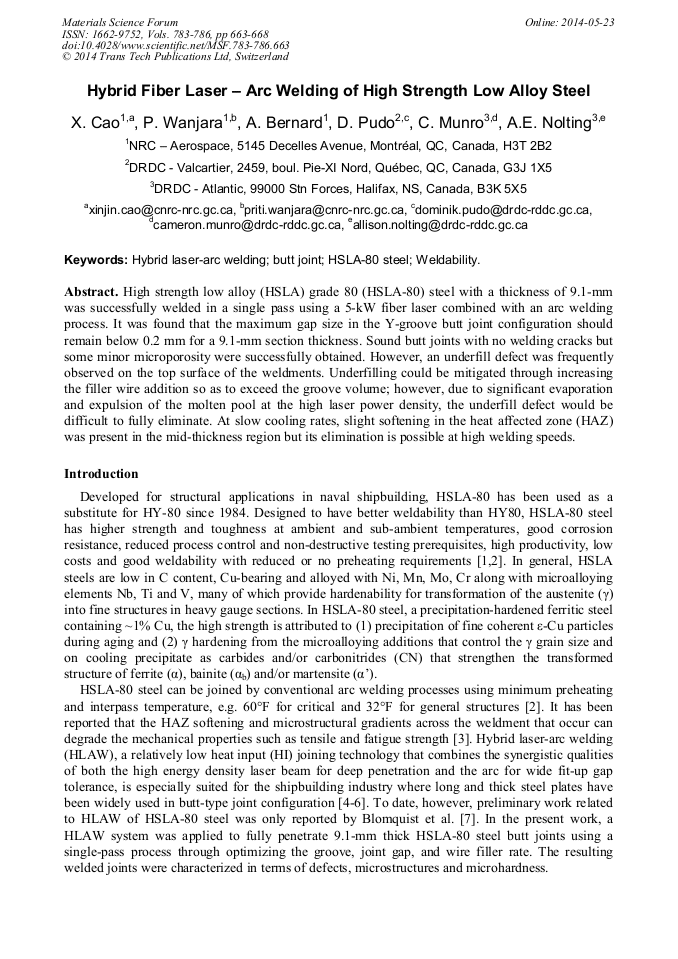

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 783-786)

Pages:

663-668

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.783-786.663

Citation:

Cite this paper

Online since:

May 2014

Authors:

Xin Jin Cao*, Priti Wanjara, A. Bernard, Dominik Pudo, Cameron Munro, Allison E. Nolting

Keywords:

Butt Joint, HSLA-80 Steel, Hybrid Laser-Arc Welding, Weldability

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] S. Das, A. Ghosh, S. Chatterjee and P.R. Rao: Mater. Charact. Vol. 50 (2003), pp.305-315.

Google Scholar

[2] E.J. Czyryca and M.G. Vassilaros: R&D Report in Naval Surface Warfare Center, CARDEROCKDIV-SME-92/64 (1993).

Google Scholar

[3] W. Xu, D. Westerbaan, S.S. Nayak, D.L. Chen, F. Goodwin and Y. Zhou: Mater. Des. Vol. 43 (2013), pp.373-383.

Google Scholar

[4] X. Cao, P. Wanjara, J. Huang, C. Munro, and A. Nolting: Mater. Des. Vol. 32 (2011), p.3399–3413.

Google Scholar

[5] A. Nolting, C. Munro, X. Cao, and P. Wanjara: Can. Metall. Q. Vol. 51 (3) (2012), pp.336-345.

Google Scholar

[6] C. Munro, A. Nolting, X. Cao and P. Wanjara: Mater. Sci. Forum Vols. 706-709 (2012), pp.2992-2997.

Google Scholar

[7] P.A. Blomquist, C. Chretien, E. Oller, B.M. Marx, in: 28th Int. Congress On Application of Lasers & Electro-Optics (ICALEO), Paper # 1807, Orlando, Fl., 2-5 Nov. (2009).

Google Scholar

[8] M. Shome and O.N. Mohanty: Metall. Mater. Trans. A Vol. 37A (2006), pp. °59-2169.

Google Scholar

[9] P.R. Howell: Defense Technical Information Center ADA222105 (1990).

Google Scholar

[10] R.A. Weber, B.R. Somers and E.J. Kaufmann: USACERL Technical Report 96/104 in US Army Corps of Engineers (1996).

Google Scholar
