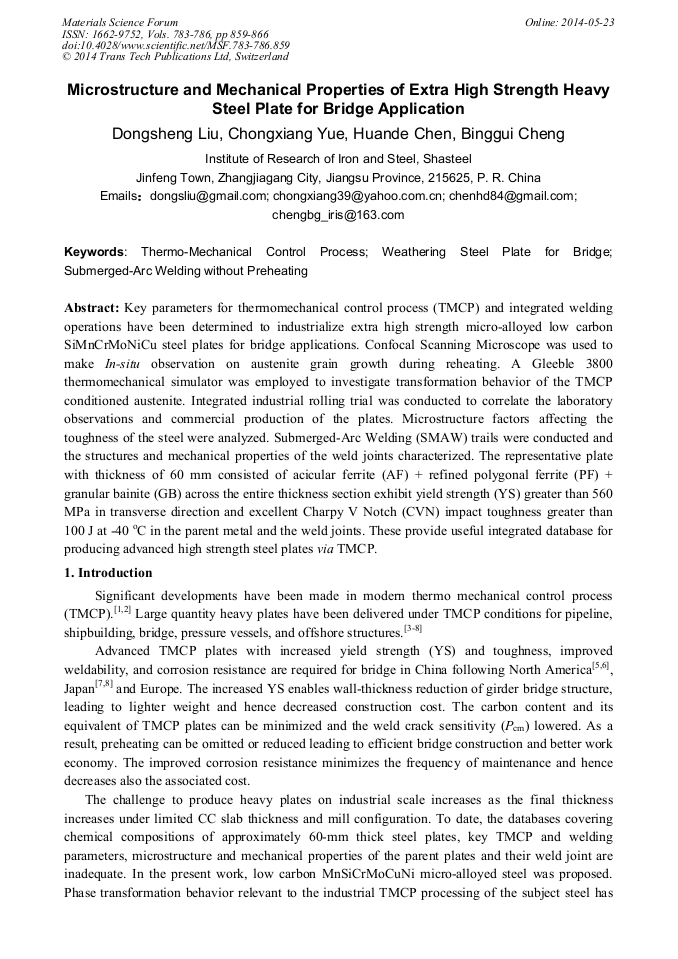

Microstructure and Mechanical Properties of Extra High Strength Heavy Steel Plate for Bridge Application

Abstract:

Key parameters for thermomechanical control process (TMCP) and integrated welding operations have been determined to industrialize extra high strength micro-alloyed low carbon SiMnCrMoNiCu steel plates for bridge applications. Confocal Scanning Microscope was used to make In-situ observation on austenite grain growth during reheating. A Gleeble 3800 thermomechanical simulator was employed to investigate transformation behavior of the TMCP conditioned austenite. Integrated industrial rolling trial was conducted to correlate the laboratory observations and commercial production of the plates. Microstructure factors affecting the toughness of the steel were analyzed. Submerged-Arc Welding (SMAW) trails were conducted and the structures and mechanical properties of the weld joints characterized. The representative plate with thickness of 60 mm consisted of acicular ferrite (AF) + refined polygonal ferrite (PF) + granular bainite (GB) across the entire thickness section exhibit yield strength (YS) greater than 560 MPa in transverse direction and excellent Charpy V Notch (CVN) impact toughness greater than 100 J at-40 °C in the parent metal and the weld joints. These provide useful integrated database for producing advanced high strength steel plates via TMCP. Keywords: Thermo-Mechanical Control Process;Weathering Steel Plate for Bridge; Submerged-Arc Welding without Preheating

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 859-866
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.859
• Online since: May 2014
• Authors: Dong Sheng Liu*, Chong Xiang Yue, Huan De Chen, Bing Gui Cheng
• Keywords: Submerged-Arc Welding without Preheating, Thermo-Mechanical Control Process, Weathering Steel Plate for Bridge

References

[1] D. Schmidt, R. Dehmel, G. Horn, Cooling technologies for high-strength plate production, Stahl Eisen, Issue 8, 128(2008) 25-30.

[2] N. Shikanai, S. Mitao, and S. Endo, Recent development in microstructure control technologies through the Thermo-Mechanical Control Process (TMCP) with JFE steel's high-performance plates, JFE Technical Report, Issue 1(2008)1-6.

[3] V. Schwinn, J. Bauer, P. Flüss, H. -J Kirsch, and E. Amoris, Recent developments and applications of TMCP steel plates, Revue de Métallurgie, Issue 5, 108(2011) 283-294.

DOI: 10.1051/metal/2011054

[4] W. Schütz, and F. Schröter, Development of heavy steel plate for Mayflower Resolution, special purpose vessel for erection of offshore wind tower, Mat. Sci. Techn., 21(2005)590-596.

DOI: 10.1179/174328405x38339

[5] D. Q, Bai, T. Nelson, R. Bodnar, M. Cooke, S. Scumpu, Development of high-performance steels for bridge applications at SSAB North America, Iron Steel Technol., Issue 10, 6(2009) 65-74.

[6] C.R. Kayser, J.A. Swanson, D.G. Linzell, Characterization of material properties of HPS-485W (70W) TMCP for bridge girder applications, Journal of bridge engineering，Issue 1, 11 (2006) 99-108.

DOI: 10.1061/(asce)1084-0702(2006)11:1(99)

[7] K. Nishimura, K. Matsui, N. Tsumura, High performance steel plates for bridge construction-high strength steel plates with excellent weldability realizing advanced design for rationalized fabrication of bridges, JFE Technical Report, No. 5 (2005).

[8] K. Homma, M. Tanaka, K. Matsuoka, T. Kasuya, H. Kawasaki, Development of application technologies for bridge high-performance steel, BHS. Nippon Steel Technical Report, No. 97 Issue 1 (2008) 51-57.

[9] D. Liu, Q. Li, T. Emi, Microstructure and mechanical properties in hot-rolled extra high yield strength steel plates for offshore structure and shipbuilding, Metall. Mater. Trans. A, 42A (2011) 1349-1361.

DOI: 10.1007/s11661-010-0458-1

[10] S.H. Mousava Anijdan, and S. Yue, The effect of cooling rate, and cool deformation through strain-induced transformation, on microstructure evolution and mechanical properties of microalloyed steels, Metall. Mater. Trans. A, 43A (2012) 1140-1162.

DOI: 10.1007/s11661-011-0958-7

[11] I. Nerea, J. Denis, L. Mitra, Phase transformation study in Nb-Mo microalloyed steels using dilatometry and EBSD quantification, Metall. Mater. Trans. A, 44A (2013) 3352-3563.

DOI: 10.1007/s11661-013-1738-3

[12] D. Liu, B. Cheng, M. Luo, Microstructure and impact fracture behavior of HAZ of F460 heavy ship plate with high strength and toughness, Acta Metall Sin, 47 (2011) 1222-1240.
