Dilatometer Analysis of the One Step Quenching and Partitioning Process in a 1.5%Si Steel

Article Preview

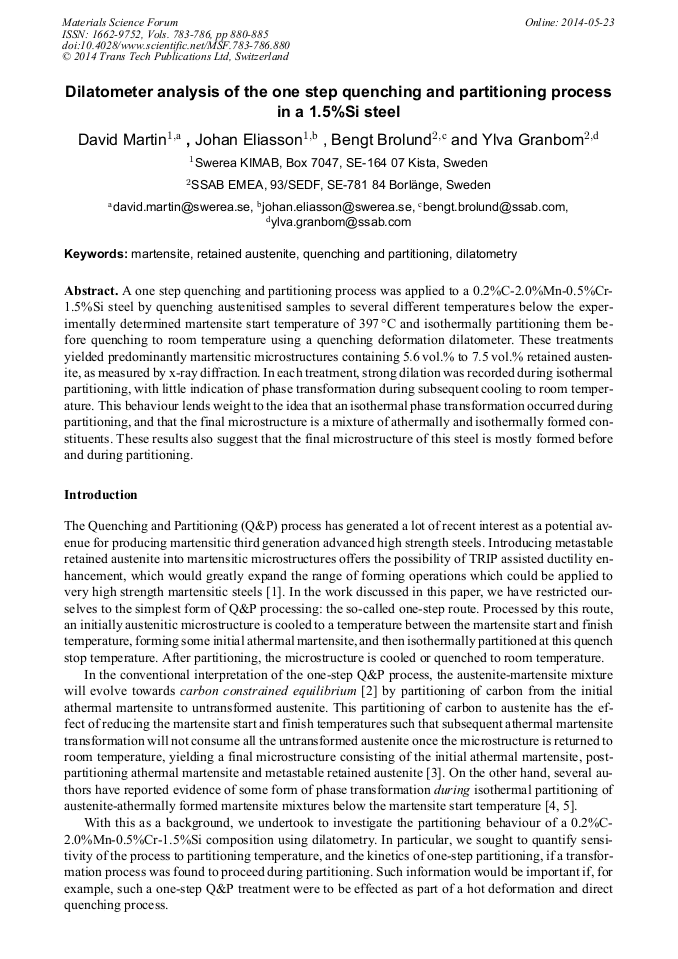

Abstract:

A one step quenching and partitioning process was applied to a 0.2%C-2.0%Mn-0.5%Cr-1.5%Si steel by quenching austenitised samples to several different temperatures below the experimentallydetermined martensite start temperature of 397 °C and isothermally partitioning them beforequenching to room temperature using a quenching deformation dilatometer. These treatmentsyielded predominantly martensitic microstructures containing 5.6 vol.% to 7.5 vol.% retained austenite,as measured by x-ray diffraction. In each treatment, strong dilation was recorded during isothermalpartitioning, with little indication of phase transformation during subsequent cooling to room temperature.This behaviour lends weight to the idea that an isothermal phase transformation occurred duringpartitioning, and that the final microstructure is a mixture of athermally and isothermally formed constituents.These results also suggest that the final microstructure of this steel is mostly formed beforeand during partitioning.

You might also be interested in these eBooks

Info:

Periodical:

Materials Science Forum (Volumes 783-786)

Pages:

880-885

Citation:

Online since:

May 2014

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2014 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] D. Edmonds, K. He, F. Rizzo, B. D. Cooman, D. Matlock, and J. Speer, ``Quenching and partitioning martensite -a novel steel heat treatment, Materials Science and Engineering: A, vol. 438 - 440, pp.25-34, (2006).

DOI: 10.1016/j.msea.2006.02.133

Google Scholar

[2] M. Hillert and J. Ågren, ``Reply to comments on On the definition of paraequilibrium and orthoequilibrium", ', Scripta Materialia, vol. 52, pp.87-88, (2005).

DOI: 10.1016/j.scriptamat.2004.08.026

Google Scholar

[3] J. Speer, D. Matlock, B. D. Cooman, and J. Schroth, ``Carbon partitioning into austenite after martensite transformation, Acta Materialia, vol. 51, pp.2611-2622, (2003).

DOI: 10.1016/s1359-6454(03)00059-4

Google Scholar

[4] D. Kim, J. Speer, H. Kim, and B. De Cooman, ``Observation of an isothermal transformation during quenching and partitioning processing, Metallurgical and Materials Transactions A, vol. 40A, pp.2048-2060, (2009).

DOI: 10.1007/s11661-009-9891-4

Google Scholar

[5] M. C. Somani, L. P. Karjalainen, D. A. Porter, and D. K. Misra, ``Evaluation of the behaviour and properties of a high-Si steel processed using direct quenching and partitioning, Materials Science Forum, vol. 706-709, pp.2824-2829, (2012).

DOI: 10.4028/www.scientific.net/msf.706-709.2824

Google Scholar

[6] S. W. Ooi, Y. R. Cho, J. R. Oh, and H. K. D. H. Bhadeshia, ``Carbon enirchment in residual austenite during martensitic transformation, in ICOMAT-08 (G. B. Olson, D. S. Lieberman, and A. Saxena, eds. ), pp.179-185, TMS (The Minerals, Metals & Materials Society), (2009).

DOI: 10.1002/9781118803592.ch25

Google Scholar

[7] D. H. Kim, J. Speer, and B. De Cooman, ``Isothermal transformation of a CMnSi steel below the Ms temperature, Metallurgical and Materials Transactions A, vol. 42A, pp.1575-1585, (2011).

DOI: 10.1007/s11661-010-0557-z

Google Scholar
