The Development and Application of High-Performance Ultra-High Strength Stainless Steel Subject to Marine Environment

Abstract:

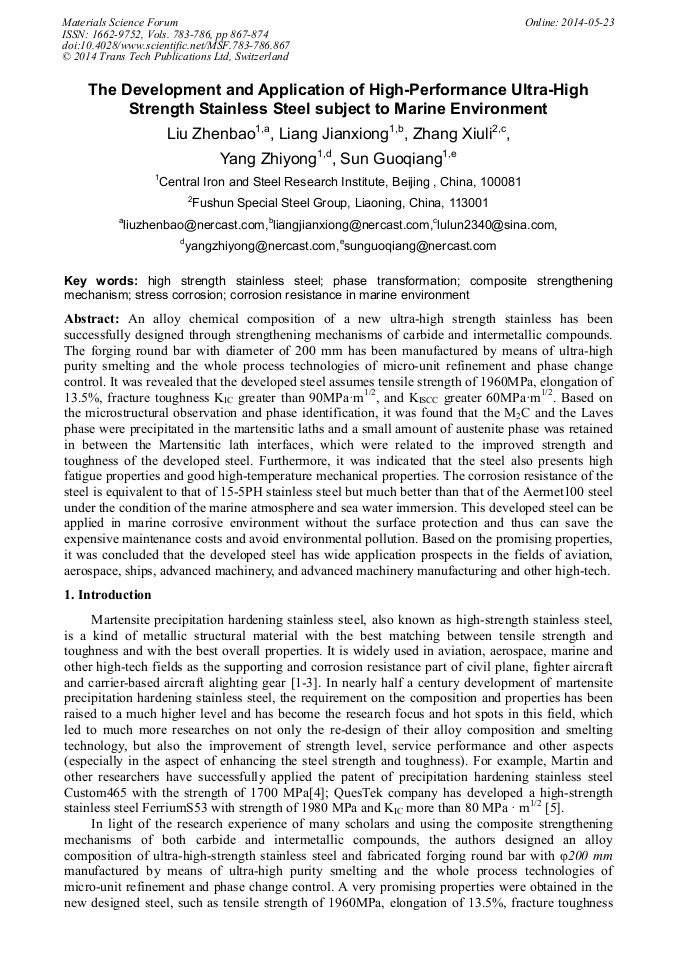

An alloy chemical composition of a new ultra-high strength stainless has been successfully designed through strengthening mechanisms of carbide and intermetallic compounds. The forging round bar with diameter of 200 mm has been manufactured by means of ultra-high purity smelting and the whole process technologies of micro-unit refinement and phase change control. It was revealed that the developed steel assumes tensile strength of 1960MPa, elongation of 13.5%, fracture toughness K_IC greater than 90MPa·m^1/2, and K_ISCC greater 60MPa·m^1/2. Based on the microstructural observation and phase identification, it was found that the M₂C and the Laves phase were precipitated in the martensitic laths and a small amount of austenite phase was retained in between the Martensitic lath interfaces, which were related to the improved strength and toughness of the developed steel. Furthermore, it was indicated that the steel also presents high fatigue properties and good high-temperature mechanical properties. The corrosion resistance of the steel is equivalent to that of 15-5PH stainless steel but much better than that of the Aermet100 steel under the condition of the marine atmosphere and sea water immersion. This developed steel can be applied in marine corrosive environment without the surface protection and thus can save the expensive maintenance costs and avoid environmental pollution. Based on the promising properties, it was concluded that the developed steel has wide application prospects in the fields of aviation, aerospace, ships, advanced machinery, and advanced machinery manufacturing and other high-tech.

• Periodical: Materials Science Forum (Volumes 783-786)
• Pages: 867-874
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.783-786.867
• Online since: May 2014
• Authors: Zhen Bao Liu*, Jian Xiong Liang, Xiu Li Zhang, Zhi Yong Yang, Guo Qiang Sun
• Keywords: Composite Strengthening Mechanism, Corrosion Resistance in Marine Environment, High Strength Stainless Steel, Phase Transformation, Stress Corrosion

References

[1] R.K. Wilson, Maraging Steels-Recent Development and Applications, TMSAIME, Warrendale, PA, (1988).

[2] X.C. Zhao, G.H. Huang, Develop and Tide of Stainless Steel in overseas, Metal Material of Overseas. 5(1980)1-10.

[3] Z.B. Liu W.S. Song, Z.Y. Yang, et al, Effect of aging on microstructure and mechanical properties of a ultra-high strength maraging stainless steel, Transactions of Materials and Heat Treatment. 26(2005) 52-55.

[4] James W. Martin, Theodore Kosa, Bradford A. Dulmaine U.S. Patents 5, 681, 528(1997).

[5] Charles J. Kuehmann, Gregory B. Olson, Herng-Jeng Jon U.S. Patents7, 160, 399(2007).

[6] Lee P. Bendel, Timothy A. Sardel U.S. Patent5, 000, 912. (1991).

[7] Lee P. Bendel, Timothy A. Sardel, Lawrence P. Trozzo, U.S. Patents 5651843(1996).

[8] R.A. Zykova, Ya.I. Spektor, Yu.M. Politaev, Effect of Titanium on the Structure and Properties of Maraging Tool Steel 05Kh12N6D2SGTMF, Translated from Metallovedenie i Termicheskaya Obrabotka Metallov. 9 (1986)48-51.

DOI: 10.1007/bf00742752

[9] V. Seetharman, M. Sundararaman, R. Krishnan, Precipitation Hardening in a PH 13-8 Mo Stainless Steel, Materials Science and Engineering. 47(1981) 1-11.

DOI: 10.1016/0025-5416(81)90034-3

[10] W.M. Garrison, J.A. Brooks, The thermal and mechanical stability of aystenite in low carbon martensitic steel PH13-8, Materials Scinece and Engineering. A149(1991)65-72.

[11] J.X. Liang, W.S. Song, X.C. Zhao, STUDY OF FERRITIC AGING STAINLESS STEEL (σ0. 2≥880MPa) HAVING SEA WATER CORROSION RESISTANCE, IRON AND STEEL, 2(2001) 149-153.

[12] D.T. Peters and R. Cupp, The Kinetics of Aging Reactions in 18 Pct Ni Maraging Steel, Trans. AIME . 236 (1966) 1420-1425.

[13] R.E. Miner, J.K. Janckson ,D.F. Gibbons, Internal Friction in 18 Pct Ni Maraging Steel, Trans. AIME. 236(1966): 1565-1571.

[14] D.J. Abson and J.A. Whiteman, Precipitation from iron-base alloys containing cobalt, Journal of The Iron and Steel Institute. 208 (1970)594-600.

[15] L.E. Alekseeva, G.I. Koritskaya, and E.I. Talalakina, Stabilization of Small Deformations of Maraging Steels by Steels Relaxation, Metallovedenie i Termicheskaya Obrabotka Metallov. 12 (1987)12-15.

DOI: 10.1007/bf00707583

[16] S.V. Grachev, A.S. Sheyn, S.V. Pavlova, N.A. Rundkvist, Influence of Quenching Programmes on Phase Compostistion and Effectiveness of Subsequent Aging of Maraging Steels, Phys. Met. Metall. 66 (1988) 151-157.

[17] T. Maki and C. M Wayman, Acta Metall. 25(1977) 681-689.

[18] M. Bowkett, S. R Keown and D. R Harries, Quench- and deformation-induced structure in two austenitic stainless steels, Metal Science. 16 (1982) 499-517.

DOI: 10.1179/030634582790427082

[19] J.J. Irani,D. Dulieu, Precipitation in austenitic stainless steels containing tantalum, Journal of the iron and steel institute. 9 (1966) 1229-1238.

[20] R. W K HONEYCOMBE, Some strengthening mechanisms in alloy steels，Metallurgical Developments in High Alloy Steels, Special Report86, The Iron and steel Ins, 1964.

[21] R. AYER，ER P. MACHMEI, On the characteristic of M2C carbide in the peak hardening regime of Aermat100 steel, Metall and Mater Trans, 9A(1998)903-905.

DOI: 10.1007/s11661-998-0280-1

[22] V. K VASUDEVAN，S. J KIM，C. M WAYMAN, Precipitation reactions and strengthening behavior in 18 Wt Pct nickel maraging steels, Metall Trans. 2lA(1990)2655-2668.

DOI: 10.1007/bf02646061

[23] R.F. DECKER, S. FLOREEN, Maraging steel the first 30 years, In maraging steel: recent developments and application, Huntington West Virginia: The Minerals, Meatls & Materials Society, (1988).

[24] V.K. VASUDEVAN, S.J. KIM, C.M. WAYMAN, Precipitation reactions and strengthening behavior in 18 Wt Pct nickel maraging steels, Metall Trans. 21A(1900)2655-2661.

DOI: 10.1007/bf02646061
