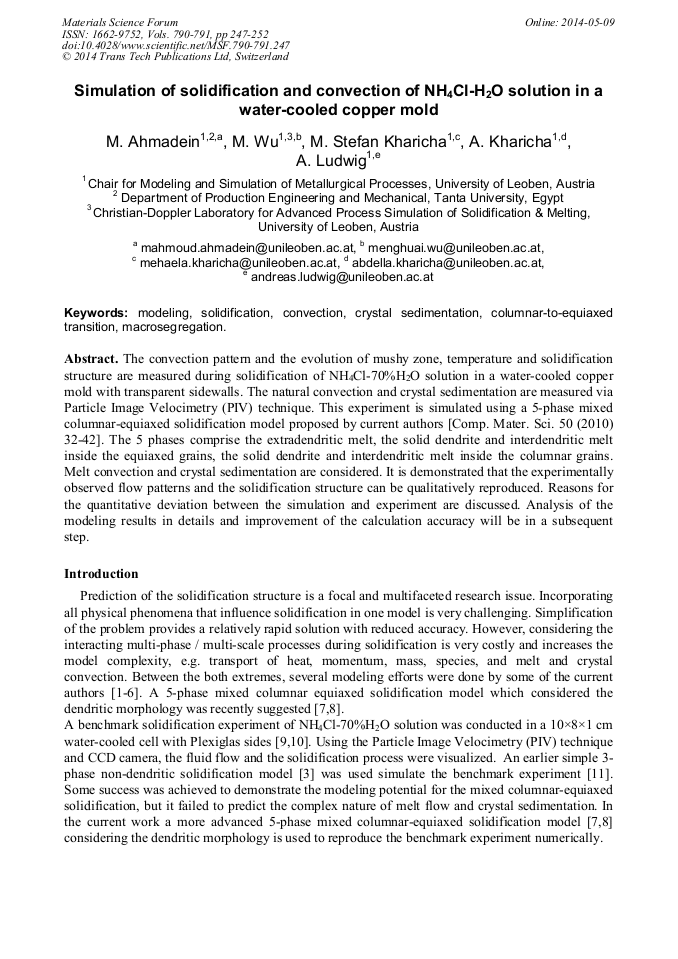

Simulation of Solidification and Convection of NH₄Cl-H₂O Solution in a Water-Cooled Copper Mold

Abstract:

The convection pattern and the evolution of mushy zone, temperature and solidification structure are measured during solidification of NH₄Cl-70%H₂O solution in a water-cooled copper mold with transparent sidewalls. The natural convection and crystal sedimentation are measured via Particle Image Velocimetry (PIV) technique. This experiment is simulated using a 5-phase mixed columnar-equiaxed solidification model proposed by current authors [Comp. Mater. Sci. 50 (2010) 32-4]. The 5 phases comprise the extradendritic melt, the solid dendrite and interdendritic melt inside the equiaxed grains, the solid dendrite and interdendritic melt inside the columnar grains. Melt convection and crystal sedimentation are considered. It is demonstrated that the experimentally observed flow patterns and the solidification structure can be qualitatively reproduced. Reasons for the quantitative deviation between the simulation and experiment are discussed. Analysis of the modeling results in details and improvement of the calculation accuracy will be in a subsequent step.

• Periodical: Materials Science Forum (Volumes 790-791)
• Pages: 247-252
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.790-791.247
• Online since: May 2014
• Authors: Mahmoud Ahmadein*, Meng Huai Wu, Mehaela Stefan Kharicha, Abdella Kharicha, Andreas Ludwig
• Keywords: Columnar-To-Equiaxed Transition, Convection, Crystal Sedimentation, Macrosegregation, Modeling, Solidification

References

[1] T. Wang, S. Yao, X. Zhang, J. Jin, M. Wu, A. Ludwig, B. Pustal, A. Bührig-Polaczek, Modeling of the thermo-solutal convection, shrinkage flow, and grain movement during globular equiaxed solidification in a multi-phase system: I. Three-phase flow model, Acta Metall. Sinica 42 (2006).

DOI: 10.1179/136404605225022874

[2] T. Wang, T. Li, Z. Cao, J. Jin, T. Grimming, A. Bührig-Polaczek, M. Wu, A. Ludwig, Modeling of the thermo-solutal convection, shrinkage flow, and grain movement during globular equiaxed solidification in a multi-phase system: II. Application of model, Acta Metall. Sinica 42 (2006).

DOI: 10.1002/3527603506.ch23

[3] M. Wu, A. Ludwig, A three-phase model for mixed columnar-equiaxed solidification, Metall. Mat. Trans. A 37A (2006) 1613-1631.

DOI: 10.1007/s11661-006-0104-0

[4] M. Wu, A. Ludwig, Using three-phase deterministic model for the columnar-to-equiaxed transition, Metall. Mat. Trans. A 38A (2007) 1465-1475.

DOI: 10.1007/s11661-007-9175-9

[5] M. Wu, A. Ludwig, Modeling Equiaxed Solidification with Melt Convection and Grain Sedimentation – I: Model Description, Acta Mater. 57 (2009) 5621-5631.

DOI: 10.1016/j.actamat.2009.07.056

[6] M. Wu, A. Ludwig, Modeling Equiaxed Solidification with Melt Convection and Grain Sedimentation – II: Model Verification, Acta Mater. 57 (2009) 5632-5644.

DOI: 10.1016/j.actamat.2009.07.067

[7] M. Wu, A. Fjeld and A. Ludwig, Modelling Mixed Columnar-Equiaxed Solidification with Melt Convection and Grain Sedimentaion – Part I: Model Description, Comp. Mater. Sci. 50 (2010) 32-42.

DOI: 10.1016/j.commatsci.2010.07.005

[8] M. Wu, A. Ludwig, A. Fjeld, Modelling Mixed Columnar-Equiaxed Solidification with Melt Convection and Grain Sedimentaion – Part II: Illustrative Modelling Results and Parameter Studies, Comp. Mater. Sci. 50 (2010) 43-58.

DOI: 10.1016/j.commatsci.2010.07.006

[9] M. Stefan Kharicha, S. Eck, L. Könözsy, A. Kharicha, A. Ludwig, Experimental and numerical investigations of NH4Cl solidification, Part 1: Experimental results, Int. J. Cast Metal Res., 22 (2009) 168-171.

DOI: 10.1179/136404609x368000

[10] A. Kharicha, M. Stefan-Kharicha, A. Ludwig, M. Wu, Simultaneous observation of melt flow and motion of equiaxed crystals during solidification using a dual phase particle image velocimetry technique. Part I: stage characterization of melt flow and equiaxed crystal motion, Metall. Mater. Trans. A 44 (2013).

DOI: 10.1007/s11661-012-1414-z

[11] L. Könözsy, S. Eck, M. Stefan Kharicha, M. Wu, A. Ludwig, Experimental and numerical investigations of NH4Cl solidification, Part 2: Numerical results, Int. J. Cast Metal Res., 22 (2009) 172-174.

DOI: 10.1179/136404609x367605

[12] J. Hunt, Steady-State Columnar and Equiaxed Growth of Dendrites and Eutectic, Mater. Sci. Eng. 65 (1984) 75-83.

DOI: 10.1016/0025-5416(84)90201-5

[13] M. Martorano, C. Beckermann, Ch-A. Gandin, A solutal interaction mechanism for the columnar-to-equiaxed transition in alloy solidification, Metall. Mater. Trans. A 34 (2003) 1657-1674.

DOI: 10.1007/s11661-003-0311-x

[14] Ph. Thevoz, M. Rappaz, Modeling of Equiaxed Microstructure Formation in Casting, Metall. Trans. A 20(1989) 311-322.

DOI: 10.1007/bf02670257

[15] M. Rappaz, Ch. -A. Gandin, Probabilistic Modelling of Microstructure Formation in Solidification Processes, Acta Metal Mater. 41 (1993) 345-360.

DOI: 10.1016/0956-7151(93)90065-z

[16] M. Ahmadein, B. Pustal, R. Berger, E. Subasic, A. Bührig-Polaczek, Grain nucleation parameters for aluminum alloys: experimental determination and model validation, Metall. Mater. Trans. A 40 (2009) 646-653.

DOI: 10.1007/s11661-008-9738-4

[17] M. Ahmadein, M. Wu, J.H. Li, P. Schumacher, Prediction of the as-cast structure of Al-4. 0 Wt. Pct. Cu ingots, A. Ludwig, Metall. Mater. Trans. A 44 (2013) 2895–2903.

DOI: 10.1007/s11661-012-1606-6

[18] C. Beckermann, C.Y. Wang, Equiaxed dendritic solidification with convection: Part III. Comparison with NH4CI-H2O experiments, Metall. Mat. Trans. A, 27 (1996) 2784-2795.

DOI: 10.1007/bf02652371

[19] M. Wu, M. Ahmadein, A. Kharicha, A. Ludwig, JH. Li, P. Schumacher, 13th MCWASP, Schladming: Austria, IOP Conf. Ser.: Mater. Sci. Eng., 33, art. no. 012075, (2012).

DOI: 10.1088/1757-899x/33/1/012075

[20] A. Kharicha, M Stefan-Kharicha, M. Wu, A. Ludwig, Exploration of the double-diffusive convection during dendritic solidification with a combined volume-averaging and cellular-automaton model, 13th MCWASP, Schladming: Austria, IOP Conf. Ser.: Mater. Sci. Eng., 33, art. no. 012115, (2012).

DOI: 10.1088/1757-899x/33/1/012115

[21] C. Beckermann, R. Viskanta, Double-diffusive convection due to melting, Int. J. Heat Mass Transfer 31 (1988) 2077-(2089).

DOI: 10.1016/0017-9310(88)90118-4
