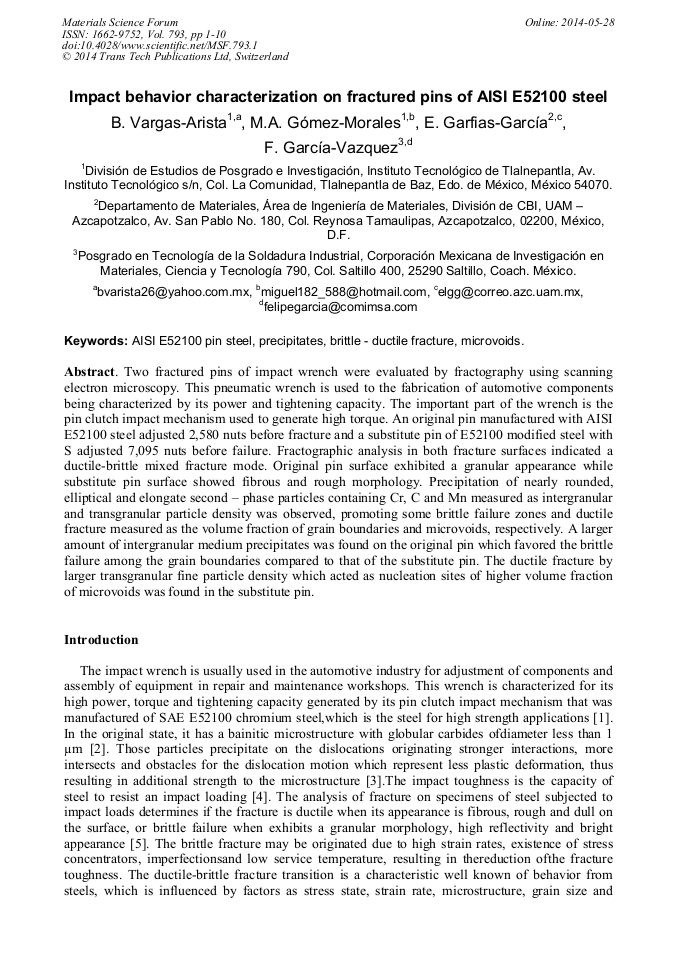

Impact Behavior Characterization on Fractured Pins of AISI E52100 Steel

Abstract:

Two fractured pins of impact wrench were evaluated by fractography using scanning electron microscopy. This pneumatic wrench is used to the fabrication of automotive components being characterized by its power and tightening capacity. The important part of the wrench is the pin clutch impact mechanism used to generate high torque. An original pin manufactured with AISI E52100 steel adjusted 2,580 nuts before fracture and a substitute pin of E52100 modified steel with S adjusted 7,095 nuts before failure. Fractographic analysis in both fracture surfaces indicated a ductile-brittle mixed fracture mode. Original pin surface exhibited a granular appearance while substitute pin surface showed fibrous and rough morphology. Precipitation of nearly rounded, elliptical and elongate second – phase particles containing Cr, C and Mn measured as intergranular and transgranular particle density was observed, promoting some brittle failure zones and ductile fracture measured as the volume fraction of grain boundaries and microvoids, respectively. A larger amount of intergranular medium precipitates was found on the original pin which favored the brittle failure among the grain boundaries compared to that of the substitute pin. The ductile fracture by larger transgranular fine particle density which acted as nucleation sites of higher volume fraction of microvoids was found in the substitute pin.

You might also be interested in these eBooks

Structural and Chemical Characterization of Metals, Alloys and Compounds II

View Preview

Info:

Periodical:

Materials Science Forum (Volume 793)

Pages:

1-10

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.793.1

Citation:

Cite this paper

Online since:

May 2014

Authors:

B. Vargas-Arista*, M.A. Gómez-Morales, E. Garfias-García, F. García-Vázquez

Keywords:

AISI E52100 pin Steel, Brittle - Ductile Fracture, Microvoids, Precipitates

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] H. Chandler, Heat Treater´s Guide Practices and Procedures for Irons and Steels, ASM International, United States of America (1995) 428, 575.

Google Scholar

[2] E. Kerscher, K.H. Lang, Influence of thermal and thermomechanical treatments on the fatigue limit of a bainitic high strength bearing steel, Proc. Eng. 2 (2010) 1731-1739.

DOI: 10.1016/j.proeng.2010.03.186

Google Scholar

[3] X.Z. Yuan, H.S. Song, H.Y. Wang, J. Liu, M.A. Guo, Effect of pre-deformation on the age hardening of a 385 niobium-microalloyed steel, Mater.Lett. 59 (2005) 2048–2051.

DOI: 10.1016/j.matlet.2005.02.014

Google Scholar

[4] D.R. Askeland, P.P. Phulé, Ciencia e ingeniería de los materiales, International Thomson Editores, México, D.F, (2004) 260-263.

Google Scholar

[5] G.E. Dieter, Mechanical Metallurgy, second Ed., McGraw Hill Book Co, United Kingdom, (1988) 471-500.

Google Scholar

[6] R.T. Kiepura, B.R. Sanders, Fractography ASM Handbook Vol. 12, ASM International, United States of America, (2009) 12-71, 63-65, 105-106.

Google Scholar

[7] E. Poursaeidi, M.R. Mohammadi, Failure analysis of lock - pin in a gas turbine engine, Eng. Failure Analysis, 15 (2008) 847-855.

DOI: 10.1016/j.engfailanal.2007.11.015

Google Scholar

[8] B. Vargas-Arista, C. Ángeles-Chávez, A. Albiter, J.M. Hallen, Metallurgical Investigation of the aging process on tensile fracture welded joins in pipeline steel, Mater. Charact., 60 (2009) 1561-1568.

DOI: 10.1016/j.matchar.2009.09.007

Google Scholar

[9] R. Cao, G. Li, X.Y. Fang, J. Song, J.H. Chen, Investigation on the effects of microstructure on the impact and fracture toughness of a C-Mn steel with various microstructures, Mater. Sci. Eng. A, 564 (2013) 509-524.

DOI: 10.1016/j.msea.2012.11.120

Google Scholar

[10] M.J. Balart, C.L. Davis, M. Strangwood, Fracture behaviour in medium-carbon Ti-V-N and V-N microalloyed ferritic-pearlitic and bainiting forging steels with enhanced machinability, Mater. Sci. Eng. A. 328 (2002) 48-57.

DOI: 10.1016/s0921-5093(01)01679-3

Google Scholar

[11] J. Blach, L. Falat, P. Sevc, Fracture characteristics of thermally exposed 9Cr-1Mo steel after tensile and impact testing at room temperature, Eng. Failure Analysis. 16 (2009) 1397-1403.

DOI: 10.1016/j.engfailanal.2008.09.003

Google Scholar

[12] B. Vargas-Arista, J.M. Hallen, A. Albiter, C. Angeles-Chavez, Degradation of impact fracture during accelerated aging of weld metal on microalloyed steel, Rev. Metal. Madrid. 44 (2008) 485-492.

DOI: 10.3989/revmetalm.0747

Google Scholar
