Microstructural Evolution during Isothermal Annealing of a Cold-Rolled Al-Mn-Fe-Si Alloy with Different Microchemistry States

Ke Huang; Yan Jun Li; Knut Marthinsen

doi:10.4028/www.scientific.net/MSF.794-796.1163

Paper Titles

The Evolution of Microstructure and Texture during Thermomechanical Processing of Al-Mg-Si-Cu Alloy
p.1141

Influence of Alloying Elements and Processing in AA 8006-Alloys on Microstructure and Properties of Rolled Products
p.1147

Effects of Cu or Li Addition and Multi-Step Aging Conditions on the Bake-Hardenability of an Al-Mg-Si Alloy
p.1152

Experimental and Numerical Investigations of the Plastic Deformation during Multi-Pass Asymmetric and Symmetric Rolling of High-Strength Aluminum Alloys
p.1157

Microstructural Evolution during Isothermal Annealing of a Cold-Rolled Al-Mn-Fe-Si Alloy with Different Microchemistry States
p.1163

Effect of Zr Addition on Recrystallization Behavior of Extruded Al-Mg-Si Alloys Containing Mn
p.1169

Serration and Reversion Treatment in Al-Zn Alloys
p.1175

Characterisation of Al-Cu and Al-Mg-Si Free-Cutting Alloys
p.1181

Effect of Extensive Isothermal Rolling on Microstructure and Mechanical Properties of an Al-Mg-Sc Alloy
p.1187

HomeMaterials Science ForumMaterials Science Forum Vols. 794-796Microstructural Evolution during Isothermal...

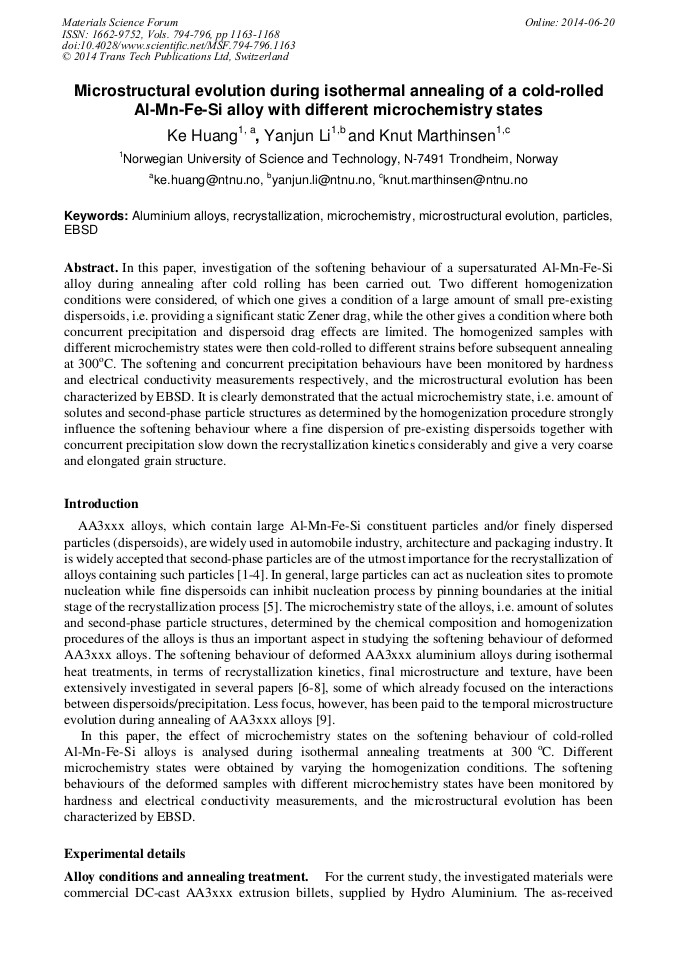

Microstructural Evolution during Isothermal Annealing of a Cold-Rolled Al-Mn-Fe-Si Alloy with Different Microchemistry States

Abstract:

In this paper, investigations of the softening behaviour of a supersaturated Al-Mn-Fe-Si alloy during annealing after cold rolling have been carried out. Two different homogenization conditions were considered, of which one gives a condition of a large amount of small pre-existing dispersoids, i.e. providing a significant static Zener drag, while the other gives a condition where both concurrent precipitation and dispersoid drag effects are limited. The homogenized samples with different microchemistry states were then cold-rolled to different strains before subsequent annealing at 300°C. The softening and concurrent precipitation behaviours have been monitored by hardness and electrical conductivity measurements respectively, and the microstructural evolution has been characterized by EBSD. It is clearly demonstrated that the actual microchemistry state, i.e. amount of solutes and second-phase particle structures as determined by the homogenization procedure strongly influence the softening behaviour where a fine dispersion of pre-existing dispersoids together with concurrent precipitation slow down the recrystallization kinetics considerably and give a very coarse and elongated grain structure.
