The Evolution of Microstructure and Texture during Thermomechanical Processing of Al-Mg-Si-Cu Alloy

Abstract:

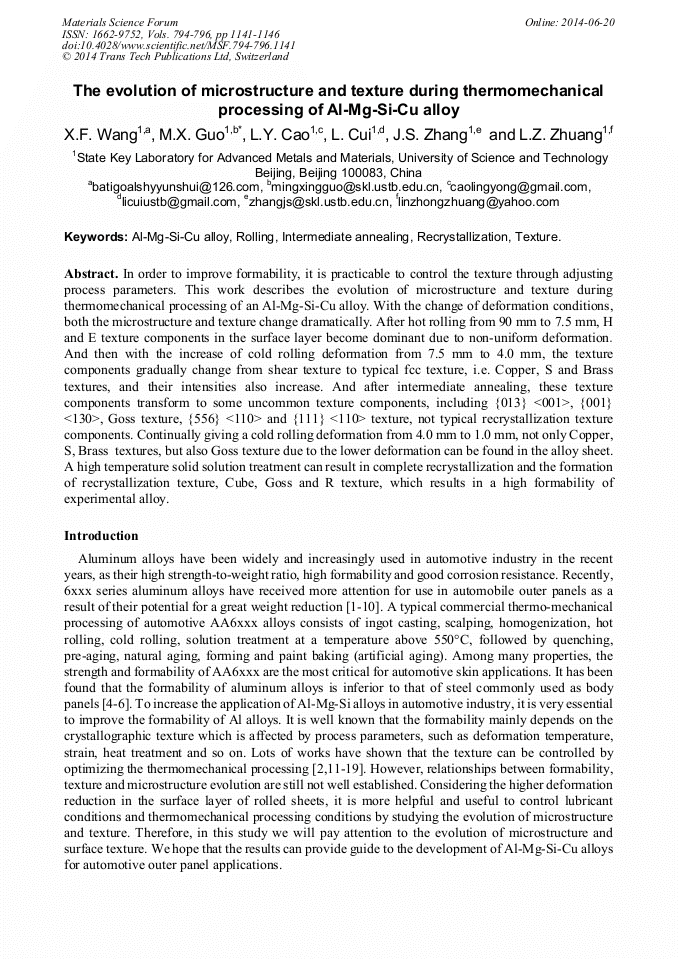

In order to improve formability, it is practicable to control the texture through adjusting process parameters. This work describes the evolution of microstructure and texture during thermomechanical processing of Al-Mg-Si-Cu alloy. With the change of deformation conditions, both the microstructure and texture change dramatically. After hot rolling from 90 mm to 7.5 mm, H and E texture components in the surface layer become dominant due to non-uniform deformation. And then with the increasing of cold rolling deformation from 7.5 mm to 4.0 mm, the texture components gradually change from shear texture to typical fcc texture, i.e. Copper, S and Brass textures, and their intensities also increase. And these texture components transform to some uncommon texture components after intermediate annealing, including {013}<001>, {001}<130>, Goss texture, {556}<110> and {111}<110> texture, not as the typical recrystallization texture components. Continually giving a cold rolling deformation from 4.0 mm to 1.0 mm, not only Copper, S, Brass textures, but also Goss texture due to the lower deformation can be found in the alloy sheet. The high temperature solid solution treatment can result in the complete recrystallization and the formation of recrystallization texture, Cube, Goss and R texture, which results in the high formability of experimental alloy.

• Periodical: Materials Science Forum (Volumes 794-796)
• Pages: 1141-1146
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.794-796.1141
• Online since: June 2014
• Authors: Xiao Feng Wang, Ming Xing Guo*, Ling Yong Cao, Li Cui, Ji Shan Zhang, Lin Zhong Zhuang
• Keywords: Rolling , Al-Mg-Si-Cu Alloy, Intermediate Annealing, Recrystallization, Texture

References

[1] G.B. Burger, A.K. Gupta, P.W. Jeffrey, D.J. Lloyd, Microstructural control of aluminum sheet used in automotive applications, Mater. Charact. 35 (1995) 23-39.

DOI: 10.1016/1044-5803(95)00065-8

[2] O. Engler, J. Hirsch, Texture control by thermomechanical processing of AA6xxx Al-Mg-Si sheet alloys for automotive applications-a review, Mater. Sci. Eng. A336 (2002) 249-262.

DOI: 10.1016/s0921-5093(01)01968-2

[3] J. Hirsch, Automotive Trends in Aluminium-The European Perspective, Mater. Sci. Forum. 28 (2004) 15-23.

[4] J. Sidor, A. Miroux, R. Petrov, L. Kestens, Microstructural and crystallographic aspects of conventional and asymmetric rolling processes, Acta Mater. 56 (2008) 2495-2507.

DOI: 10.1016/j.actamat.2008.01.042

[5] J. Sidor, R. Petrov and L. Kestens, Deformation, recrystallization and plastic anisotropy of asymmetrically rolled aluminum sheets, Mater. Sci. Eng. A528 (2010) 413-424.

DOI: 10.1016/j.msea.2010.09.023

[6] J. Sidor, A. Miroux, R. Petrov, L. Kestens, Controlling the plastic anisotropy in asymmetrically rolled aluminium sheets, Philos. Mag. 88 (2008) 3779-3792.

DOI: 10.1080/14786430802064659

[7] O. Engler, H.C. Kim, M.Y. Huh, Formation of {111} fibre texture in recrystallised aluminium sheet, Mater. Sci. Technol. 17 (2001) 75-86.

DOI: 10.1179/026708301101508990

[8] H.O. Asbeck, H. Mecking, Influence of friction and geometry of deformation on texture inhomogeneities during rolling of Cu single crystals as an example, Mater. Sci. Eng. A34 (1978) 111-119.

DOI: 10.1016/0025-5416(78)90041-1

[9] C.S. Lee, B.J. Duggan, A simple theory for the development of inhomogeneous rolling textures, Metall. Mater. Trans. 22A (1991) 2637-2643.

DOI: 10.1007/bf02851357

[10] M.Y. Huh, Y.S. Cho, O. Engler, Effect of lubrication on the evolution of microstructure and texture during rolling and recrystallization of copper, Mater. Sci. Eng. A247 (1998) 152-164.

DOI: 10.1016/s0921-5093(97)00772-7

[11] F.J. Humphreys, M. Hatherly, Recrystallization and related annealing phenomena, second ed., Pergamon, Oxford, (2004).

[12] O. Engler, K. Lücke, Mechanisms of recrystallization texture formation in aluminium alloys, Scripta Metall. Mater. 27 (1992) 1527-1532.

DOI: 10.1016/0956-716x(92)90139-6

[13] O. Engler, Nucleation and growth during recrystallisation of aluminium alloys investigated by local texture analysis, Mater. Sci. Technol. 12 (1996) 859-872.

DOI: 10.1179/mst.1996.12.10.859

[14] D. D. Roger, Recrystallization and texture, Prog. Mater. Sci. 42 (1997) 39-58.

[15] W. Truszkowski, J. Krol, B. Major, Inhomogeneity of rolling texture in fcc metals, Metall. Mater. Trans. 11A (1980) 749-758.

DOI: 10.1007/bf02661204

[16] X. M. Zhang, H. H. Jiang, Y. Q. Xiao, Influence of lubricants on deformation textures in high purity Al, The Chinese Journal of Nonferrous Metals. 11 (2001) 785-790.

[17] H. Inoue, T. Takasugi, Texture Control for improving deep drawability in rolled and annealed aluminum alloy sheets, Mater Trans. 48 (2007) 2014-(2022).

DOI: 10.2320/matertrans.l-mra2007871

[18] Y.S. Liu, S.B. Kang, H.S. Ko, Texture and plastic anisotropy of Al-Mg-0. 3Cu-1. 0Zn alloys, Scripta Mater. 37 (1997) 411-417.

DOI: 10.1016/s1359-6462(97)00102-4

[19] H.E. Vatne, O. Engler, E. Nes, Influence of particles on recrystallisation textures and microstructures of aluminium alloy 3103, Mater. Sci. Technol. 13 (1997) 93-102.

DOI: 10.1179/mst.1997.13.2.93

[20] O. Engler, H.E. Vatne, E. Nes, The roles of oriented nucleation and oriented growth on recrystallization texture in commercial purity aluminium, Mater. Sci. Eng. A205 (1996) 187-198.

DOI: 10.1016/0921-5093(95)09879-8
