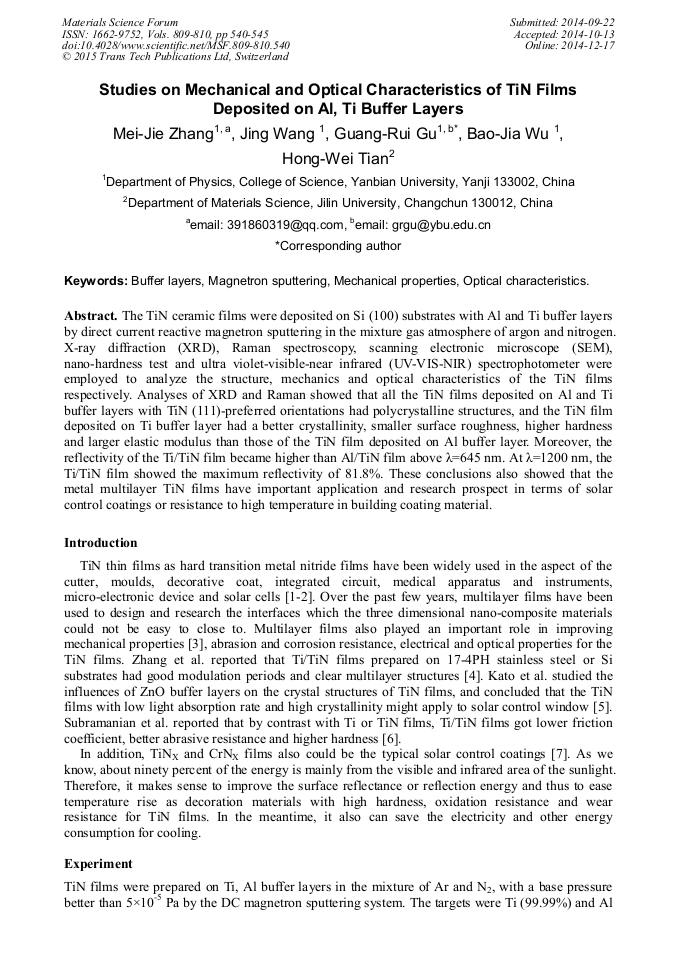

Studies on Mechanical and Optical Characteristics of TiN Films Deposited on Al, Ti Buffer Layers

Abstract:

The TiN ceramic films were deposited on Si (100) substrates with Al and Ti buffer layers by direct current reactive magnetron sputtering in the mixture gas atmosphere of argon and nitrogen. X-ray diffraction (XRD), Raman spectroscopy, scanning electronic microscope (SEM), nanohardness test and ultra violet-visible-near infrared (UV-VIS-NIR) spectrophotometer were employed to analyze the structure, mechanics and optical characteristics of the TiN films respectively. Analyses of XRD and Raman showed that all the TiN films deposited on Al and Ti buffer layers with TiN (111)-preferred orientations had polycrystalline structures, and the TiN film deposited on Ti buffer layer had a better crystallinity, smaller surface roughness, higher hardness and larger elastic modulus than those of the TiN film deposited on Al buffer layer. Moreover, the reflectivity of the Ti/TiN film became higher than Al/TiN film above λ=645 nm. At λ=1200 nm, the Ti/TiN film showed the maximum reflectivity of 81.8%. These conclusions also showed that the metal multilayer TiN films have important application and research prospect in terms of solar control coatings or resistance to high temperature in building coating material.

• Periodical: Materials Science Forum (Volumes 809-810)
• Pages: 540-545
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.809-810.540
• Online since: December 2014
• Authors: Mei Jie Zhang, Jing Wang, Guang Rui Gu*, Bao Jia Wu, Hong Wei Tian
• Keywords: Buffer Layer, Magnetron Sputtering, Mechanical Property, Optical Characteristics

References

[1] M. Tao, D. Udeshi, S. Agarwal, E. Maldonado and W.P. Kirk, Negative Schottky barrier between titanium and n-type Si(001) for low-resistance ohmic contacts, Solid State Electron. 48 (2004) 335-338.

DOI: 10.1016/s0038-1101(03)00316-2

[2] G.B. Smith, A. Ben-David and P.D. Swift, A new type of TiN coating combining broad band visible transparency and solar control, Renew. Energ. 22 (2001) 79-84.

DOI: 10.1016/s0960-1481(00)00071-9

[3] F. Vaz, P. Cerqueira, L. Rebouta, S.M.C. Nascimento, E. Alves, Ph. Goudeau, J.P. Riviere, K. Pischow and J.D. Rijk, Structural, optical and mechanical properties of coloured TiNxOy thin films, Thin Solid Films. 447–448 (2004) 449-454.

DOI: 10.1016/s0040-6090(03)01123-4

[4] Q. Zhang, Y.X. Leng, F. Qi, T. Tao and N. Huang, Mechanical and corrosive behavior of Ti/TiN multilayer films with different modulation periods, Phys. Res. B, 257 (2007) 411-415.

DOI: 10.1016/j.nimb.2007.01.085

[5] K. Kato, H. Omoto and A. Takamatsu and T. Tomioka, Crystal orientation control of polycrystalline TiN thin films using ZnO under layers deposited by magnetron sputtering, Appl. Surf. Sci. 258 (2011) 687-694.

DOI: 10.1016/j.apsusc.2011.07.098

[6] B. Subramanian, R. Ananthakumar and M. Jayachandran, Structural and tribological properties of DC reactive magnetron sputtered titanium/titanium nitride (Ti/TiN) multilayered coatings, Surf. Coat. Technol. 205 (2011) 3485-3492.

DOI: 10.1016/j.surfcoat.2022.129223

[7] E. Ando and S. Suzuki, Optical and mechanical properties of Cr and CrNx films by dc magnetron sputtering, Journal of Non-Crystalline Solids. 218 (1997) 68-73.

DOI: 10.1016/s0022-3093(97)00197-x

[8] P.W. Shum, K.Y. Li and Z.F. Zhou, Structural and mechanical properties of titanium–aluminium–nitride films deposited by reactive close-field unbalanced magnetron sputtering, Surf. Coat. Technol. 185 (2004) 245-253.

DOI: 10.1016/j.surfcoat.2003.12.011

[9] W. Spengler and R. Kaiser, First and second order Raman scattering in transition metal compounds, Solid State Commun. 18 (1976) 881-884.

DOI: 10.1016/0038-1098(76)90228-3

[10] C.P. Constable, J. Yarwood and W. –D Münz, Raman microscopic studies of PVD hard coatings, Surf. Coat. Technol. 116-119 (1999) 155-159.

DOI: 10.1016/s0257-8972(99)00072-9

[11] P. Perlin, A. Polian and T. Suski, Raman cattering studies of aluminium nitride at high pressure, Phys. Rev.B. 47 (1993) 2874-2877.

DOI: 10.1103/physrevb.47.2874

[12] D. Yang, R. Jonnalagadda and B.R. Rogers, Texture and surface roughness of PRCVD aluminum films, Thin Solid Films. 332 (1998) 312-318.

DOI: 10.1016/s0040-6090(98)01034-7

[13] X.H. Xiu, H.S. Wu and Z.H. Jin, Studies of the structure and surface roughness of AlN thin film, Rare metal materials and engineering. 29 (2000) 394-397. (In Chinese).

[14] M. Oden, H. Ljungcrantz and L. Hultman, Characterization of the induced plastic zone in a single crystal TiN(001) film by nanoindentation and transmission electron microscopy, Mater. Res. 12 (1997) 2134-2142.

DOI: 10.1557/jmr.1997.0286

[15] X. Li, D. Diao and B. Bhushan, Fracture mechanisms of thin amorphous carbon films in nanoindentation, Acta Mater. 45 (1997) 4453-4461.

DOI: 10.1016/s1359-6454(97)00143-2

[16] P. Patsalas, C. Charitidis and S. Logothetidis, The effect of substrate temperature and biasing on the mechanical properties and structure of sputtered titanium nitride thin films, Surface and Coatings Technology. 125 (2000) 335-340.

DOI: 10.1016/s0257-8972(99)00606-4

[17] V. Chawla, R. Jayaganthan and R. Chandra, Structural characterizations of magnetron sputtered nanocrystalline TiN thin films, Mater Charact. 59 (2008) 1015-1020.

DOI: 10.1016/j.matchar.2007.08.017

[18] T. An, H.W. Tian, M. Wen and W.T. Zheng, Structures and mechanical properties of TiN/SiNx multilayer films deposited by magnetron sputtering at different N2/Ar gas flow ratios, Vacuum. 82 (2008) 1187-1190.

DOI: 10.1016/j.vacuum.2008.02.004

[19] W. Spengler, R. Kaiser and H. Bilz, Resonant Raman scattering in a superconducting transition metal compound TiN, Solid State Commun. 17 (1975) 19-22.

DOI: 10.1016/0038-1098(75)90325-7
