HomeMaterials Science ForumMaterials Science Forum Vols. 809-810Effect of Additives on the Formation of SmCo...

Effect of Additives on the Formation of SmCo Magnetic Nanoparticles by Chemical Synthesis

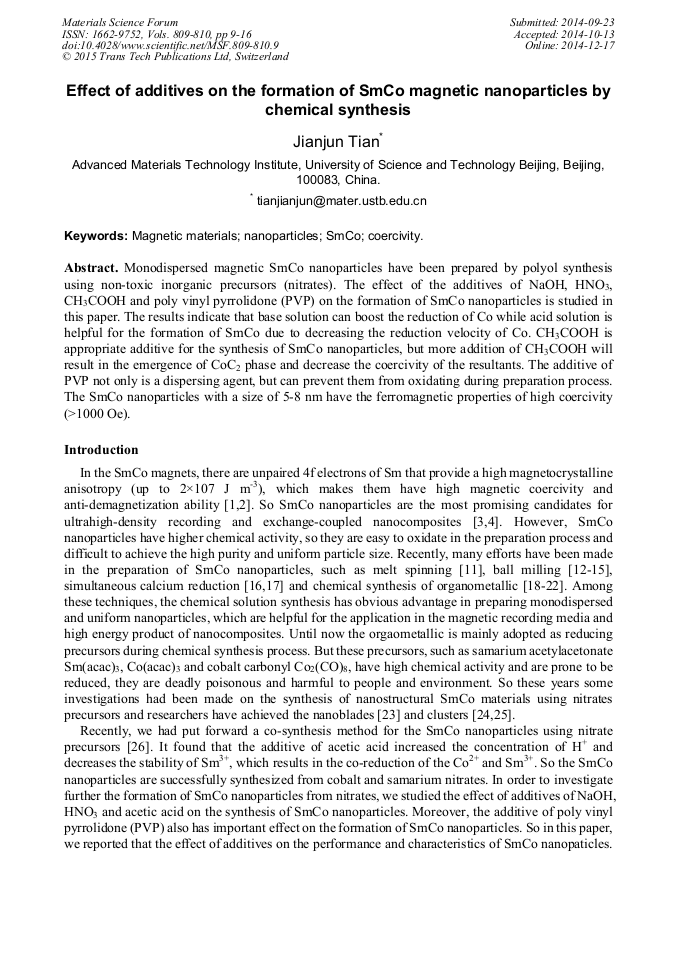

Article Preview

Abstract:

Monodispersed magnetic SmCo nanoparticles have been prepared by polyol synthesis using non-toxic inorganic precursors (nitrates). The effect of the additives of NaOH, HNO₃, CH₃COOH and poly vinyl pyrrolidone (PVP) on the formation of SmCo nanoparticles is studied in this paper. The results indicate that base solution can boost the reduction of Co while acid solution is helpful for the formation of SmCo due to decreasing the reduction velocity of Co. CH₃COOH is appropriate additive for the synthesis of SmCo nanoparticles, but more addition of CH₃COOH will result in the emergence of CoC₂ phase and decrease the coercivity of the resultants. The additive of PVP not only is a dispersing agent, but can prevent them from oxidating during preparation process. The SmCo nanoparticles with a size of 5-8 nm have the ferromagnetic properties of high coercivity (>1000 Oe).

You might also be interested in these eBooks

2014 China Functional Materials Technology and Industry Forum

Info:

Periodical:

Materials Science Forum (Volumes 809-810)

Pages:

9-16

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.809-810.9

Citation:

Cite this paper

Online since:

December 2014

Authors:

Jian Jun Tian*

Keywords:

Coercivity, Magnetic Materials, Nanoparticle, SmCo

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] A. Masseboeuf, A. Marty, P. Bayle-Guillemaud, C. Gatel, E. Snoeck, Quantitative observation of magnetic flux distribution in new magnetic films for future high density recording media, Nano Lett. 9 (2009) 2803-2806.

DOI: 10.1021/nl900800q

[2] N. Honda, K. Ouchi, S. Iwasaki, Design consideration of ultrahigh-density perpendicular magnetic recording media, IEEE Trans. Magn. 38 (2002) 1615-1621.

DOI: 10.1109/tmag.2002.1017744

[3] V. Karanasos, I. Panagiotopoulos, D. Niarchos, H. Okumura, G. C. Hadjipanayis, Optimization of CoPt/B nanocomposite films for ultrahigh-density recording media, J. Appl. Phys. 90 (2001) 3112-3114.

DOI: 10.1063/1.1391412

[4] H. Zeng, J. Li, J.P. Liu, Z.L. Wang, S. Sun, Exchange-coupled nanocomposite magnets by nanoparticle self-assembly, Nature 420 (2002) 395-398.

DOI: 10.1038/nature01208

[5] Y. Liu, Y.Q. Wu, M.J. Kramer, Y. Choi, J.S. Jiang, Z.L. Wang, J.P. Liu, Microstructure analysis of a SmCo/Fe exchange spring bilayer, Appl. Phys. Lett. 93 (2008) 192502.

DOI: 10.1063/1.2978325

[6] S. Sun, C. B. Murray, D. Weller, L. Folks, A. Moser, Monodisperse FePt nanoparticles and ferromagnetic FePt nanocrystal superlattices, Science 287 (2000) 1989-(1992).

DOI: 10.1126/science.287.5460.1989

[7] S. Bae, K. Shin, J. Jeong, J. Kim, Feasibility of FePt longitudinal recording media for ultrahigh density recording, J. Appl. Phys. 87 (2000) 6953-6955.

DOI: 10.1063/1.372897

[8] D. Weller, A. Moser, Thermal effect limits in ultrahigh-density magnetic recording, IEEE Trans. Magn. 35 (1999) 4423-4439.

DOI: 10.1109/20.809134

[9] S. P. Gubin, Y. A. Koksharov, G. B. Khomutov, G.Y. Yurkov, Magnetic nanoparticles: preparation, structure, properties, Russ. Chem. Rev. 74 (2005) 489-520.

DOI: 10.1070/rc2005v074n06abeh000897

[10] N. G. Akdogan, G. C. Hadjipanayis, D. J. Sellmyer, Anisotropic Sm-(Co, Fe) nanoparticles by surfactant-assisted ball milling, J. Appl. Phys. 105 (2009) 07A710.

DOI: 10.1063/1.3067851

[11] W. Manrakhan, L. Withanawasam, X. Meng-Burany, G. Wei, G.C. Hadjipanayis, Melt-spun Sm(CoFeCuZr)zMx (M = B or C) nanocomposite magnets, IEEE Trans. Magn. 33 (1997) 3898-3900.

DOI: 10.1109/20.619608

[12] V. M. Chakka, B. Altuncevahir, Z. Q. Jin, Y. Li, J. P. Liu, Magnetic nanoparticles produced by surfactant-assisted ball milling, J. Appl. Phys. 99 (2006) 08E912.

DOI: 10.1063/1.2170593

[13] Y. Wang, Y. Li, C. Rong, J. P. Liu, Sm-Co hard magnetic nanoparticles prepared by surfactant-assisted ball milling, Nanotechnology 18, (2007) 465701.

DOI: 10.1088/0957-4484/18/46/465701

[14] B. Z. Cui, W. F. Li, G. C. Hadjipanayis, Formation of SmCo5 single-crystal submicron flakes and textured polycrystalline nanoflakes, Acta Materialia 59 (2011) 563-571.

DOI: 10.1016/j.actamat.2010.09.060

[15] A M. Gabay, N. G. Akdogan, M. Marinescu, J. F. Liu, G. C. Hadjipanayis, Rare earth-cobalt hard magnetic nanoparticles and nanoflakes by high-energy milling, J. Phys.: Condens. Matter 22 (2010) 164213.

DOI: 10.1088/0953-8984/22/16/164213

[16] Y. Hou, Z. Xu, S. Peng, C. Rong, J. P. Liu, S. Sun, A facile synthesis of SmCo5 magnets from Core/Shell Co/Sm2O3 nanoparticles, Adv. Mater. 19 (2007) 3349-3352.

DOI: 10.1002/adma.200700891

[17] Y. Hou, S. Sun, C. Rong, J. P. Liu, SmCo5/Fe nanocomposites synthesized from reductive annealing of oxide nanoparticles, Appl. Phys. Lett. 91 (2007) 153117.

DOI: 10.1063/1.2799170

[18] K. Ono, Y. Kakefuda, R. Okuda, Y. Ishii, S. Kamimura, A. Ki-tamura, M. Oshima, Organometallic synthesis and magnetic properties of ferromagnetic Sm-Co nanoclusters, J. Appl. Phys. 91 (2002) 8480-8482.

DOI: 10.1063/1.1456407

[19] H. Gu, B. Xu, J. Rao, R. K. Zheng, X. X. Zhang, K. K. Fung, C. Y. C. Wong, Chemical synthesis of narrowly dispersed SmCo5 nanoparticles, J. Appl. Phys. 93 (2003) 7589-7591.

DOI: 10.1063/1.1537697

[20] Y. Li, X. L. Zhang, R. Qiu, K. Y. Soo, Synthesis and investigation of SmCo5 magnetic nanoparticles, Colloids and Surfaces A: Physicochem. Eng. Aspects. 621 (2008) 313-314.

DOI: 10.1016/j.colsurfa.2007.04.150

[21] S. Tokonami, M. Kinjo, M. Inokuchi, N. Toshima, Fabrication of SmCo5 Alloy Magnetic Nanoparticles by Assistance of Copper and Their Magnetic Properties, Chem. Lett. 38 (2009) 682-683.

DOI: 10.1246/cl.2009.682

[22] T. Matsushita, T. Iwamoto, M. Inokuchi, N. Toshima, Novel ferromagnetic materials of SmCo5 nanoparticles in single-nanometer size: chemical syntheses and characterizations, Nanotechnology 21 (2010) 095603.

DOI: 10.1088/0957-4484/21/9/095603

[23] C. N. Chinnasamy, J. Y. Huang, L. H. Lewis, B. Latha, C. Vitto-ria, V. G. Harris, Direct chemical synthesis of high coercivity air-stable SmCo nanoblades, Appl. Phys. Lett. 93 (2008) 032505.

DOI: 10.1063/1.2963034

[24] P. Saravanan, K. S. Rao, D. Mishra, A. Perumal, V. Chandrasekaran, One-Step Synthesis of Sm-Co Spherical Granules via Superhydride Reduction, Adv. Sci. Lett. 3 (2010) 49-52.

DOI: 10.1166/asl.2010.1082

[25] P. Saravanan, G. VenkataRamana, K. S. Rao, B. Sreedhar, V. T. P. Vinod, V. Chandrasekaran, Structural and magnetic properties of self-assembled Sm-Co spherical aggregates, J. Magn. Magn. Mater. 323 (2011) 2083-(2089).

DOI: 10.1016/j.jmmm.2011.03.011

[26] J.J. Tian, S.G. Zhang, X.H. Qu, D.A. Pan, M.X. Zhang, Co-reduction synthesis of uniform ferromagnetic SmCo nanoparticles, Mater. Lett. 68 (2012) 212-214.

DOI: 10.1016/j.matlet.2011.10.076

[27] S. E. Skrabalak, B. J. Wiley, M. Kim, E. V. Formo, Y. Xia, On the polyol synthesis of silver nanostructures: Glycolaldehyde as a reducing agent, Nano Lett. 8 (2008) 2077-(2081).

DOI: 10.1021/nl800910d

[28] M. H. Kim, B. Lim, E. P. Lee, Y. Xia, Polyol synthesis of Cu2O nanoparticles: use of chloride to promote the formation of a cubic morphology, J. Mater. Chem. 18 (2008) 4069-4073.

DOI: 10.1039/b805913f

[29] V. G. Harris, Y. Chen, A. Yang, S. Yoon, Z. Chen, A. Geiler, C. N. Chinnasamy, L. H. Lewis, C. Vittoria, High coercivity cobalt carbide nanoparticles processed via polyol reaction: a new permanent magnet material, J. Phys. D: Appl. Phys. 43 (2010).

DOI: 10.1088/0022-3727/43/16/165003
