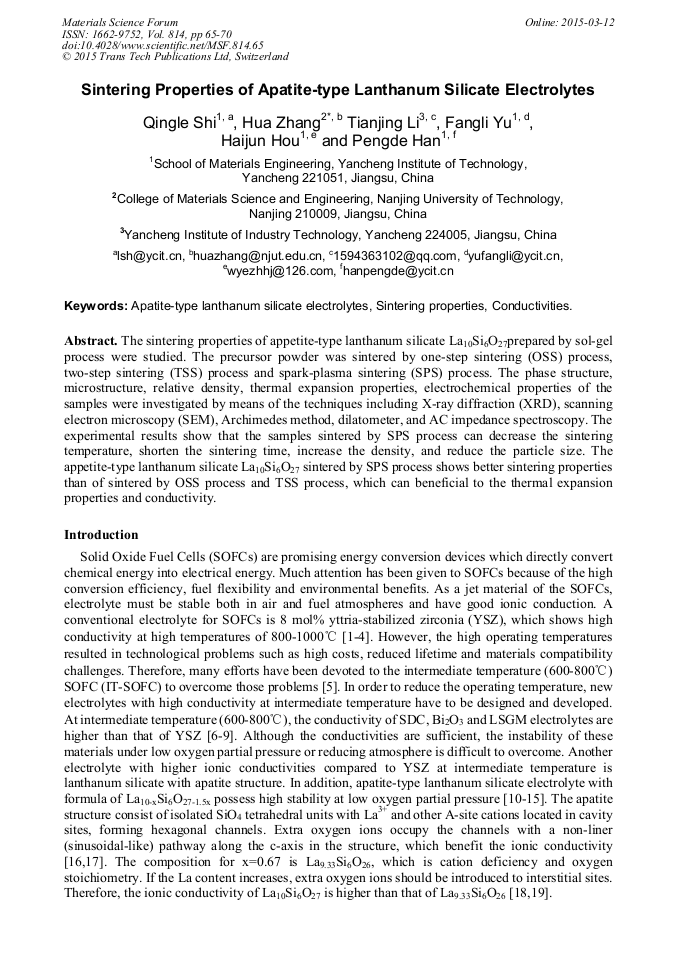

Sintering Properties of Apatite-Type Lanthanum Silicate Electrolytes

Abstract:

The sintering properties of appetite-type lanthanum silicate La₁₀Si₆O₂₇prepared by sol-gel process were studied. The precursor powder was sintered by one-step sintering (OSS) process, two-step sintering (TSS) process and spark-plasma sintering (SPS) process. The phase structure, microstructure, relative density, thermal expansion properties, electrochemical properties of the samples were investigated by means of the techniques including X-ray diffraction (XRD), scanning electron microscopy (SEM), Archimedes method, dilatometer, and AC impedance spectroscopy. The experimental results show that the samples sintered by SPS process can decrease the sintering temperature, shorten the sintering time, increase the density, and reduce the particle size. The appetite-type lanthanum silicate La₁₀Si₆O₂₇ sintered by SPS process shows better sintering properties than of sintered by OSS process and TSS process, which can beneficial to the thermal expansion properties and conductivity.

• Periodical: Materials Science Forum (Volume 814)
• Pages: 65-70
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.814.65
• Online since: March 2015
• Authors: Qing Le Shi, Hua Zhang*, Tian Jing Li, Fang Li Yu, Hai Jun Hou, Peng De Han
• Keywords: Apatite-Type Lanthanum Silicate Electrolytes, Conductivities, Sintering Properties

References

[1] T. Talebi, M. Haji, B. Raissi and A. Maghsoudipour, YSZ electrolyte coating on NiO YSZ composite by electrophoretic deposition for solid oxide fuel cells (SOFCs), Int. J. Hydrogen. Energ. 35 (2010) 9455-9459.

DOI: 10.1016/j.ijhydene.2010.05.021

[2] Y. Gong, W.J. Ji, B. Xie and H.Q. Wang, Effect of YSZ electrolyte surface modification on the performance of LSM/YSZ composite cathode, Solid State Ionics 192 (2011) 505-509.

DOI: 10.1016/j.ssi.2010.05.055

[3] V.V. Lakshmi, R. Bauri, A.S. Gandhi and S. Paul, Synthesis and characterization of nanocrystalline ScSZ electrolyte for SOFCs, Int. J. Hydrogen. Energ. 36 (2011) 14936-14942.

DOI: 10.1016/j.ijhydene.2011.02.139

[4] H.G. Shi, R. Ran and Z.P. Shao, Wet powder spraying fabrication and performance optimization of IT-SOFCs with thin-film ScSZ electrolyte, Int. J. Hydrogen. Energ. 37 (2012) 1125-1132.

DOI: 10.1016/j.ijhydene.2011.02.077

[5] J. Huang, F. Xie, C. Wang and Z. Mao, Development of solid oxide fuel cell materials for intermediate-to-low temperature operation, Int. J. Hydrogen. Energ. 37 (2012) 877-883.

DOI: 10.1016/j.ijhydene.2011.04.030

[6] J. Hormes, M. Pantelouris and G.B. Balazs, X-ray absorp-tion near edge structure (XANES) measurements of ceria-based solid electrolytes, Solid State Ionics 136-137 (2000) 945-954.

DOI: 10.1016/s0167-2738(00)00533-6

[7] O. Monnereau, L. Tortet and P. Llewellyn, Synthesis of Bi2O3 by Controlled Transformation Rate Thermal Analysis: a New Route for This Oxide, Solid State Ionics 157 (2003) 163-169.

DOI: 10.1016/s0167-2738(02)00204-7

[8] P. Datta, P. Majewski and F. Aldinger, Synthesis and microstructural characterization of Sr- and Mg-substituted LaGaO3 solid electrolyte Mater, Chem. Phys. 102 (2007) 240-244.

DOI: 10.1016/j.matchemphys.2006.12.010

[9] D. Marrero-López, J.C. Ruiz-Morales and J. Peña-Martínez, Influence of phase segregation on the bulk and grain boundary conductivity of LSGM electrolytes, Solid State Ionics 186 (2011) 44-52.

DOI: 10.1016/j.ssi.2011.01.015

[10] S. Nakayama, M. Sakamato, Electrical properties of new type high oxide ionic conductor RE10Si6O27 (RE = La, Pr, Nd, Sm, Gd, Dy), J. Eur. Ceram. Soc. 18 (1998) 1413-1418.

DOI: 10.1016/s0955-2219(98)00032-6

[11] J.E.H. Sansom, A. Najib and P. R Slater, Oxide ion conductivity in mixed Si/Ge-based apatite-type systems, Solid State Ionics 175 (2004) 353-355.

DOI: 10.1016/j.ssi.2003.12.030

[12] H. Yoshioka, Oxide ionic conductivity of apatite-type lanthanum silicates, J. Alloy Compd. 408-412 (2006) 649-652.

DOI: 10.1016/j.jallcom.2004.12.180

[13] B. Li, J. Liu, Y.X. Hu and Z.X. Huang, Preparation and characterization of La9. 33Si6O26 powders by molten salt method for solid electrolyte application, J. Alloy Compd. 509 (2011) 3172-3176.

DOI: 10.1016/j.jallcom.2010.10.215

[14] M.M. Vieira, J.C. Oliveira and A.L. Shaula, Lanthanum silicate thin films for SOFC electrolytes synthesized by magnetron sputtering and subsequent annealing, Surf. Coat. Tech. 206 (2012) 3316-3322.

DOI: 10.1016/j.surfcoat.2012.01.042

[15] C. Tian, J. Liu, J. Cai and Y Zeng, Direct synthesis of La9. 33Si6O26 ultrafine powder via sol-gel self-combustion method, J. Alloy Compd. 458 (2008) 378-382.

DOI: 10.1016/j.jallcom.2007.03.128

[16] J.E.H. Sansom, D. Richings and P. R. Slater, A powder neutron diffraction study of the oxide-ion-conducting apatite-type phases, La9. 33Si6O26 and La8Sr2Si6O26, Solid State Ionics 139 (2001) 205-210.

DOI: 10.1016/s0167-2738(00)00835-3

[17] S. Nakayama, H. Yoshikatsu and K Yuki, Effects of cation- or oxide ion-defect on conductivities of apatite-type La-Ge-O system ceramics, Solid State Ionics 170 (2004) 219-223.

DOI: 10.1016/j.ssi.2004.02.023

[18] S. Nakayama, M. Sakamoto, Ionic conductivities of apatite-type LaX(GeO4)6O1. 5X−12 (X=8-9. 33) polycrystal, s J. Mater. Sci. Lett. 20 (2001) 1627-1629.

[19] B. Li, W. Liu, W. Pan, Synthesis and electrical properties of apatite-type La10Si6O27, J. Power Sources 195 (2010) 2196-2201.

DOI: 10.1016/j.jpowsour.2009.10.088

[20] Q. Zhu, T. Jin and Y. Wang, Thermal expansion behavior and chemical compatibility of BaxSr1−xCo1−yFeyO3−δ with 8YSZ and 20GDC, Solid State Ionics 177 (2006) 1199-1204.

DOI: 10.1016/j.ssi.2006.04.029
