Fabrication of Silica Monoliths with Hierarchically Porous Structure from Freeze-Drying

Abstract:

This paper provides a novel route to prepare silica monoliths with hierarchical porous structure via freeze drying. In this method, macroporous silica monoliths were first produced by freeze-drying and calcination. By adjusting the concentration of cetyltrimethylammonium bromide in ethylsilicate, a layer of mesoporous thin film was attached on the macroporous silica monolith. The structural characterization of the hierarchical porous monoliths were studied by field emission scanning electron microscopy, mercury porosimeter and nitrogen adsorption-desorption techniques (BET). It turned out that the pore distribution of the obtained monoliths was ranged from 3.72 nm to 23.21nm and the maximum specific surface area calculated from BET was about 288 m^2/g, which indicated the existence of hierarchical structure in the obtained material.

You might also be interested in these eBooks

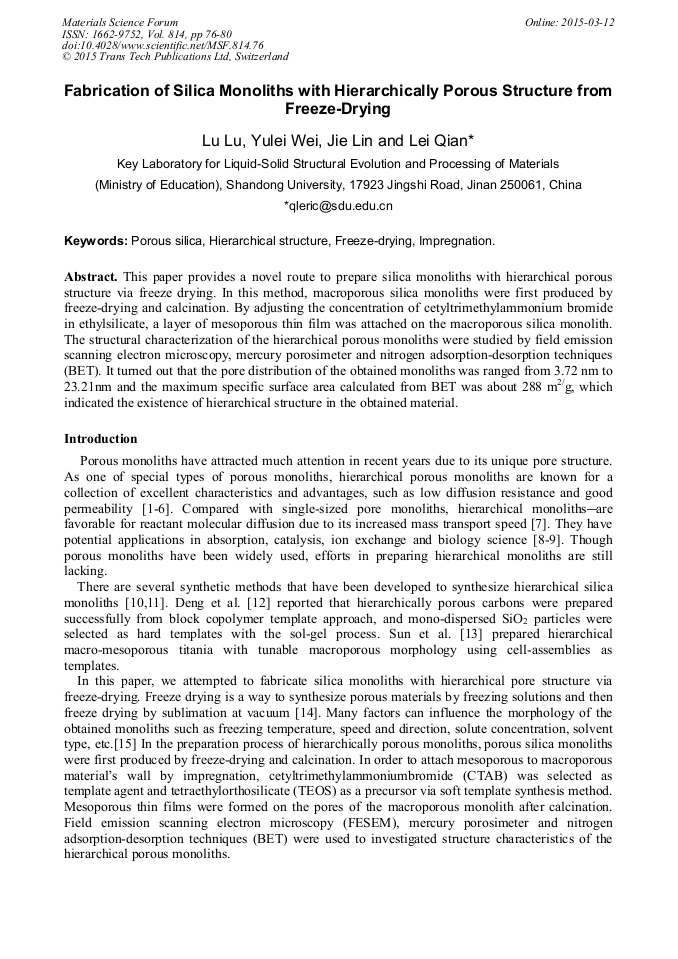

View Preview

Info:

Periodical:

Materials Science Forum (Volume 814)

Pages:

76-80

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.814.76

Citation:

Cite this paper

Online since:

March 2015

Authors:

Lu Lu, Yu Lei Wei, Jie Lin, Lei Qian*

Keywords:

Freeze-Drying, Hierarchical Structure, Impregnation, Porous Silica

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] R. T. Olsson, M. A. S. A. Samir, G. Salazar-Alvarez, L. Belova, V. Ström, L. A. Berglund, O. Ikkala, J. Nogués, U.W. Gedde, Making flexible magnetic aerogels and stiff magnetic nanopaper using cellulose nanofibrils as templates, Nature Nanotech. 5 (2010).

DOI: 10.1038/nnano.2010.155

Google Scholar

[2] J. Guo, W. Yang, C. C. Wang, Magnetic colloidal supraparticles：Design, fabrication and biomedical applications, Adv. Mater. 25 (2013) 5196-5214.

DOI: 10.1002/adma.201301896

Google Scholar

[3] J. Zhou, W. Wu, D. Caruntu, M. H. Yu, A. Martin, J. F. Chen, C. J. Oconnor, W. L. Zhou, Synthesis of porous magnetic hollow silica nanospheres for nanomedicine application, J. Phys. Chem. C. 111 (2007) 17473-17477.

DOI: 10.1021/jp074123i

Google Scholar

[4] A. Dyal, K. Loos, M. Noto, S.W. Chang, C. Spagnoli, K. V. P. M. Shafi, A. Ulman, M. Cowman, R. A. Gross, J. Am, Activity of Candida rugosa lipase immobilized on γ-Fe2O3 magnetic nanoparticles, Chem. Soc. 125 (2003) 1684-1685.

DOI: 10.1021/ja021223n

Google Scholar

[5] J. S. Seo, D. Whang, H. Lee, A homochiral metal–organic porous material for enantioselective separation and catalysis, Nature， 404 (2000) 982-986.

DOI: 10.1038/35010088

Google Scholar

[6] B. D. Terris, T. Thomson, Nanofabricated and self-assembled magnetic structures as data storage media, Phys. D: Appl. Phys. 8 (2005) R199.

DOI: 10.1088/0022-3727/38/12/r01

Google Scholar

[7] Z. Y. Yuan, B. L. Su, Insights into hierarchically meso–macroporous structured materials, J. Mater. Chem. 16 (2006) 663-677.

DOI: 10.1039/b512304f

Google Scholar

[8] S. Besson, T. Gacoin, C. Ricolleau, Phase diagram for mesoporous CTAB-silica films prepared under dynamic conditions, J. Mater. Chem. 13 (2003) 404-409.

DOI: 10.1039/b206698j

Google Scholar

[9] P. Innocenzi, L. Malfatti, T. Kidchob, Order-Disorder in Self-Assembled Mesostructured Silica Films: A Concepts Review, J. Mater. Chem. 21 (2009) 2555-2564.

DOI: 10.1021/cm900288x

Google Scholar

[10] Y. F. Zhu, J. L. Shi, H. R. Chen, W. H. Shen, X. P. Dong, A facile method to synthesize novel hollow mesoporous silica spheres and advanced storage property, Micropor Mesopor Mater. 84 (2005) 218–222.

DOI: 10.1016/j.micromeso.2005.05.001

Google Scholar

[11] Z. K. Sun, Y. H. Deng, J. Wei, D. Gu, B. Tu, D. Y. Zhao, Hierarchically ordered macro-/mesoporous silica monolith: tuning macropore entrance size for size-selective adsorption of proteins, Chem Mater. 23 (2011) 2176-2184.

DOI: 10.1021/cm103704s

Google Scholar

[12] Y. H. Deng, C. Liu, T. Yu, Facile Synthesis of Hierarchically Porous Carbons from Dual Colloidal Crystal/Block Copolymer Template Approach, Chem Mater. 19 (2007) 3271—3277.

DOI: 10.1021/cm070600y.s001

Google Scholar

[13] X. H. Sun, C. Zheng, M. Q. Qian, Bioin spired Synthesis of Hierarchical Macro-Mesoporous Titania wim Tunable M acroporous M orphology Using Cell-Assemblies as Macrotemplates, Chem Commun. 31 (2009) 4750-4752.

DOI: 10.1039/b908294h

Google Scholar

[14] L. Qian, H. F. Zhang, Controlled freezing and freeze drying: a versatile route for porous and micro‐/nano‐structured materials, J. Chem. Technol. Biotechnol. 86 (2011) 172-184.

DOI: 10.1002/jctb.2495

Google Scholar
