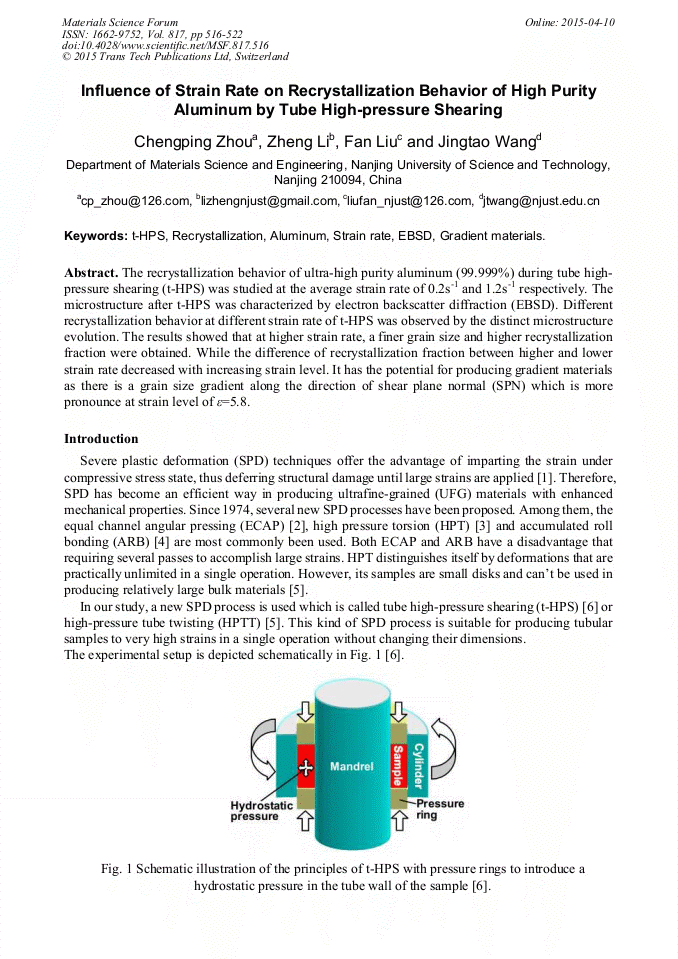

Influence of Strain Rate on Recrystallization Behavior of High Purity Aluminum by Tube High-Pressure Shearing

Abstract:

The recrystallization behavior of ultra-high purity aluminum (99.999%) during tube high-pressure shearing (t-HPS) was studied at the average strain rate of 0.2s^-1 and 1.2s^-1 respectively. The microstructure after t-HPS was characterized by electron backscatter diffraction (EBSD). Different recrystallization behavior at different strain rate of t-HPS was observed by the distinct microstructure evolution. The results showed that at higher strain rate, a finer grain size and higher recrystallization fraction were obtained. While the difference of recrystallization fraction between higher and lower strain rate decreased with increasing strain level. It has the potential for producing gradient materials as there is a grain size gradient along the direction of shear plane normal (SPN) which is more pronounce at strain level of ε=5.8.

• Periodical: Materials Science Forum (Volume 817)
• Pages: 516-522
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.817.516
• Online since: April 2015
• Authors: Cheng Ping Zhou*, Zheng Li, Fan Liu, Jing Tao Wang
• Keywords: Aluminium, EBSD, Gradient Materials, Recrystallization, Strain Rate, T-HPS

References

[1] M. Arzaghi et al: Acta Mater. Vol. 60 (2012), p.4393.

[2] V. Segal: Mater. Sci. Eng. A Vol. 271 (1999), p.322.

[3] J. Languillaume et al: Acta Metall Mater. Vol. 41 (1993), p.2953.

[4] Y. Saito et al: Acta Mater. Vol. 47 (1999), p.579.

[5] L. Tóth et al: Scripta Mater. Vol. 60 (2009), p.175.

[6] J. Wang et al: Scripta Mater. Vol. 67 (2012), p.810.

[7] A. Pougis et al: Scripta Mater. Vol. 72-73(2014), p.59.

[8] D. Ponge et al: Acta Mater. Vol. 46 (1998), p.69.

[9] Y. Cao et al: Mater. Sci. Eng. A Vol. 585 (2013), p.71.

[10] H. Jazaeri et al: Acta Mater. Vol. 52 (2004), p.3251.

[11] F. J. Humphreys et al, in: Recrystallization and related annealing phenomena, Elsevier publication, Oxford (2004).

[12] D. Ponge et al: Scripta Mater. Vol. 37 (1997), p.1769.

[13] W. Skrotzki et al: Acta Mater. Vol. 55 (2007), p.2211.

[14] F. Montheillet et al: J. Phys. Status. Solidi. A Vol. 189 (2002), p.51.

[15] B. Eghbali: Mater. Sci. Eng. A Vol. 527 (2010), p.3402.

[16] T. Sakai et al: Acta Metall. Mater. Vol. 32 (1984), p.189.

[17] H. Miura et al: Scripta Mater. Vol. 48 (2003), p.1501.
