HomeMaterials Science ForumMaterials Science Forum Vol. 817Indenter Size Effect on the Reversible Incipient...

Indenter Size Effect on the Reversible Incipient Plasticity of Al (001) Surface Studied via Quasicontinuum Simulations

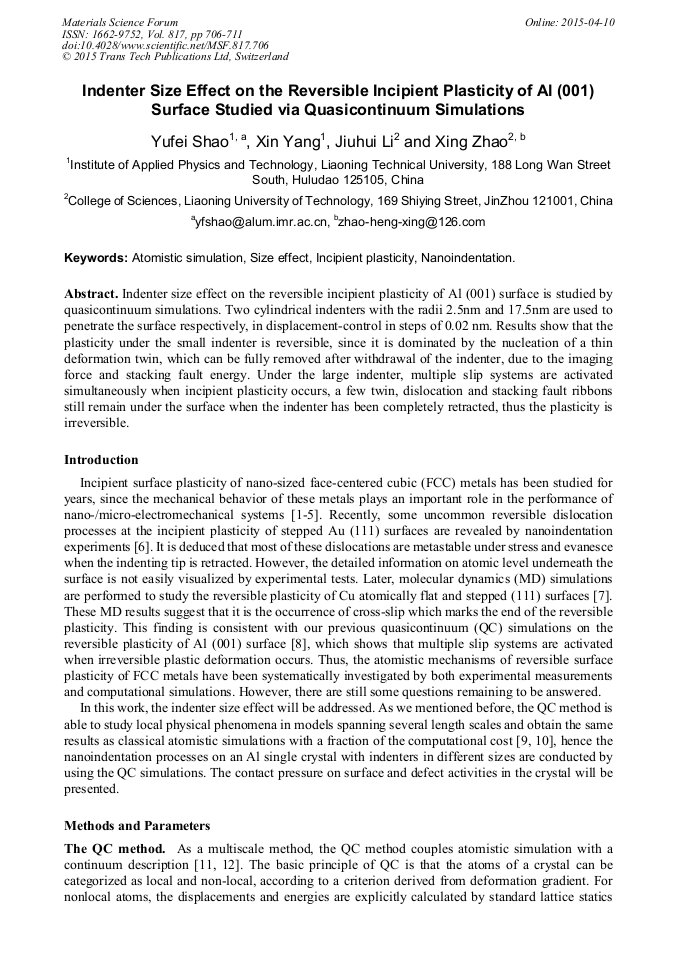

Article Preview

Abstract:

Indenter size effect on the reversible incipient plasticity of Al (001) surface is studied by quasicontinuum simulations. Two cylindrical indenters with the radii 2.5nm and 17.5nm are used to penetrate the surface respectively, in displacement-control in steps of 0.02 nm. Results show that the plasticity under the small indenter is reversible, since it is dominated by the nucleation of a thin deformation twin, which can be fully removed after withdrawal of the indenter, due to the imaging force and stacking fault energy. Under the large indenter, multiple slip systems are activated simultaneously when incipient plasticity occurs, a few twin, dislocation and stacking fault ribbons still remain under the surface when the indenter has been completely retracted, thus the plasticity is irreversible.

You might also be interested in these eBooks

Basic Research of Materials

Info:

Periodical:

Materials Science Forum (Volume 817)

Pages:

706-711

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.817.706

Citation:

Cite this paper

Online since:

April 2015

Authors:

Yu Fei Shao, Xin Yang, Jiu Hui Li, Xing Zhao

Keywords:

Atomistic Simulation, Incipient Plasticity, Nanoindentation, Size Effect

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] C. L. Kelchner, S. J. Plimpton, J. C. Hamilton, Dislocation nucleation and defect structure during surface indentation, Phys. Rev. B. 58 (1998) 11085-11088.

DOI: 10.1103/physrevb.58.11085

[2] O. Rodríguez de la Fuente, J. A. Zimmerman, M. A. González, J. de la Figuera, J. C. Hamilton, Woei Wu Pai, J. M. Rojo, Dislocation Emission around Nanoindentations on a (001) fcc Metal Surface Studied by Scanning Tunneling Microscopy and Atomistic Simulations, Phys. Rev. Lett. 88 (2001).

DOI: 10.1103/physrevlett.88.036101

[3] J. Knap,M. Ortiz, Effect of Indenter-Radius Size on Au(001) Nanoindentation, Phys. Rev. Lett. 90 (2003) 226102.

DOI: 10.1103/physrevlett.90.226102

[4] S. H. Kim, D. B. Asay, M. T. Dugger, Nanotribology and MEMS, nanotoday. 2 (2007) 22-29.

[5] J. Jin, S. A. Shevlin, Z. X. Guo, Multiscale simulation of onset plasticity during nanoindentation of Al (001) surface, Acta Mater. 56 (2008) 4358-4368.

DOI: 10.1016/j.actamat.2008.04.064

[6] V. Navarro, O. Rodrı´guez de la Fuente, A. Mascaraque, J. M. Rojo, Uncommon Dislocation Processes at the Incipient Plasticity of Stepped Gold Surfaces, Phys. Rev. Lett. 100 (2008) 105504.

DOI: 10.1103/physrevlett.100.105504

[7] G. Ziegenhain,H. M. Urbassek, Reversible plasticity under nanoindentation of atomically flat and stepped surfaces of fcc metals, Phil. Mag. Lett. 89 (2009) 717–723.

DOI: 10.1080/09500830903272900

[8] Y. F. Shao, X. Zhao, J. H. Li, S. Q. Wang, Multiscale simulations on the reversible plasticity of Al (001) surface under a nano-sized indenter, Comput. Mater. Sci. 67 (2013) 346–352.

DOI: 10.1016/j.commatsci.2012.09.028

[9] E. B. Tadmor, M. Ortiz, R. Phillips, Quasicontinuum analysis of defects in solids, Philos. Mag. A. 73 (1996) 1529-1563.

DOI: 10.1080/01418619608243000

[10] E. B. Tadmor, R. Phillips, M. Ortiz, Mixed Atomistic and Continuum Models of Deformation in Solids, Langmuir. 12 (1996) 4529-4534.

DOI: 10.1021/la9508912

[11] V. B. Shenoy, R. Miller, E. B. Tadmor, R. Phillips, M. Ortiz, Quasicontinuum Models of Interfacial Structure and Deformation, Phys. Rev. Lett. 80 (1998) 742-745.

DOI: 10.1103/physrevlett.80.742

[12] V. B. Shenoy, R. Miller, E. B. Tadmor, D. Rodney, R. Phillips, M. Ortiz, An adaptive finite element approach to atomic-scale mechanics the quasicontinuum method, J Mech. Phys. Solids. 47 (1999) 611-642.

DOI: 10.1016/s0022-5096(98)00051-9

[13] M. S. Daw,M. I. Baskes, Embedded-atom method: Derivation and application to impurities, surfaces, and other defects in metals, Phys. Rev. B. 29 (1984) 6443-6453.

DOI: 10.1103/physrevb.29.6443

[14] R. E. Miller,E. B. Tadmor, The Quasicontinuum Method: Overview, applications and current directions, J. Computer-Aided Mater. Design. 9 (2002) 203-239.

[15] A. F. Voter,S. P. Chen, Accurate interatomic potentials for Ni, Al and Ni_3Al, Mater. Res. Soc. Symp. Proc. 82 (1987) 175-180.

[16] J. Li, AtomEye: an efficient atomistic configuration viewer, Modeling Simul. Mater. Sci. Eng. 11 (2003) 173-177.

DOI: 10.1088/0965-0393/11/2/305

[17] J. D. Honeycutt,H. C. Andersen, Molecular Dynamics Study of Melting and Freezing of Small Lennard-Jones Clusters., J. Phys. Chem. 91 (1987) 4950-4963.

DOI: 10.1021/j100303a014

[18] E. B. Tadmor, R. Miller, R. Phillips, Nanoindentation and incipient plasticity, J. Mater. Res. 14 (1999) 2233-2250.

DOI: 10.1557/jmr.1999.0300

[19] K. J. Van Vliet, J. Li, T. Zhu, S. Yip, S. Suresh, Quantifying the early stages of plasticity through nanoscale experiments and simulations, Phys. Rev. B. 67 (2003) 104105.

DOI: 10.1103/physrevb.67.104105

[20] D. Saraev,R. E. Miller, Atomic-scale simulations of nanoindentation-induced plasticity in copper crystals with nanometer-sized nickel coatings, Acta Mater. 54 (2006) 33-45.

DOI: 10.1016/j.actamat.2005.08.030

[21] V. Dupont,F. Sansoz, Quasicontinuum study of incipient plasticity under nanoscale contact in nanocrystalline aluminum, Acta Mater. 56 (2008) 6013-6026.

DOI: 10.1016/j.actamat.2008.08.014
