Ohmic Contact on n-Type 3C-SiC Activated with SiO2 Encapsulation

Fan Li; Yogesh Sharma; Dean Hamilton; Craig Fisher; Michael R. Jennings; Susan Burrows; Philip  Andrew Mawby

doi:10.4028/www.scientific.net/MSF.821-823.395

Paper Titles

Tuning Optoelectronic Properties of 4H-SiC QDs Using -H, -OH and -F Surface Functionalisation
p.375

SiC Device Manufacturing: How Processing Impacts the Material and Device Properties
p.381

Basal Plane Dislocations Created in 4H-SiC Epitaxy by Implantation and Activation Anneal
p.387

Estimation of Phosphorus-Implanted 4H-SiC Layer Recrystallization by Electron-Back-Scattering Diffraction Pattern Analysis
p.391

Ohmic Contact on n-Type 3C-SiC Activated with SiO₂ Encapsulation
p.395

Al⁺ Ion Implanted On-Axis <0001> Semi-Insulating 4H-SiC
p.399

Shallow and Deep Levels in Al⁺-Implanted p-Type 4H-SiC Measured by Thermal Admittance Spectroscopy
p.403

Distribution of Secondary Defects and Electrical Activation after Annealing of Al-Implanted SiC
p.407

Process Compatibility of Heavily Nitrogen Doped Layers Formed by Ion Implantation in Silicon Carbide Devices
p.411

HomeMaterials Science ForumMaterials Science Forum Vols. 821-823Ohmic Contact on n-Type 3C-SiC Activated with SiO2...

Ohmic Contact on n-Type 3C-SiC Activated with SiO₂ Encapsulation

Abstract:

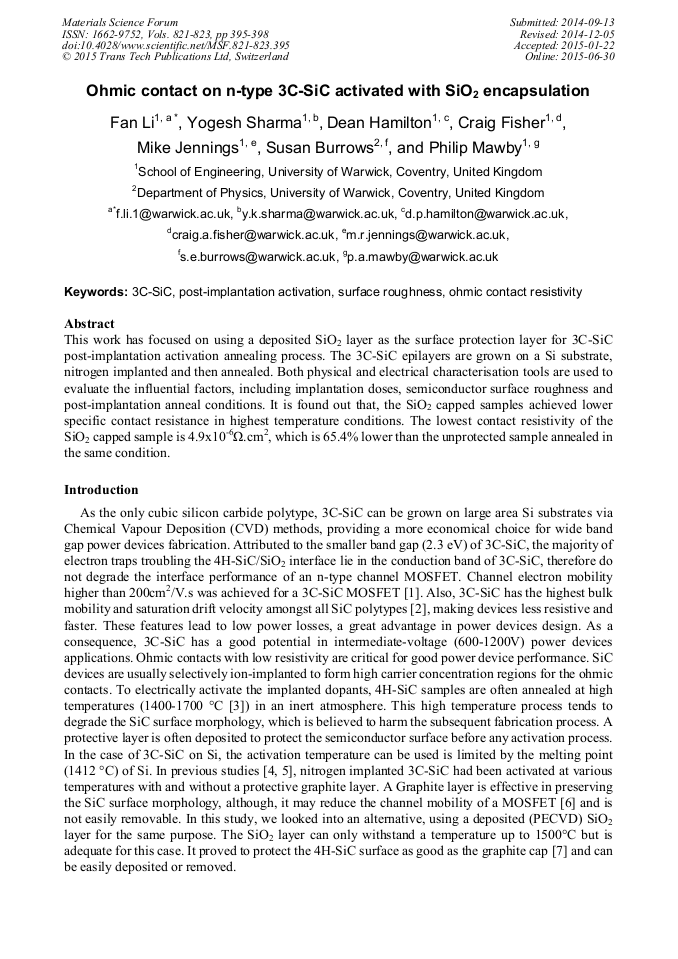

This work has focused on using a deposited SiO₂ layer as the surface protection for 3C-SiC post-implantation activation annealing process. The 3C-SiC epilayers are grown on a Si substrate, nitrogen implanted and then annealed. Both physical and electrical characterisation tools are used to evaluate the influential factors, including implantation doses, semiconductor surface roughness and post-implantation anneal conditions. It is found out that, the SiO₂ capped samples achieved lower specific contact resistance in highest temperature conditions. The lowest contact resistivity of the SiO₂ capped sample is 4.9x10^-6Ω.cm², which is 65.4% lower than the unprotected sample annealed in the same condition.

You might also be interested in these eBooks

Silicon Carbide and Related Materials 2014

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 821-823)

Pages:

395-398

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.821-823.395

Citation:

Cite this paper

Online since:

June 2015

Authors:

Fan Li*, Yogesh Sharma, Dean Hamilton, Craig Fisher, Michael R. Jennings, Susan Burrows, Philip Andrew Mawby

Keywords:

3C-SiC, Ohmic Contact Resistivity, Post-Implantation Activation, Surface Roughness

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] L. Kin Kiong, Y. Ishida, T. Ohshima, K. Kojima, Y. Tanaka, T. Takahashi, Electron Device Letters. 24(2003) 466-468.

DOI: 10.1109/led.2003.815006

Google Scholar

[2] H. Nagasawa, M. Abe, K. Yagi, T. Kawahara, N. Hatta, Physical Status Solid (b). 245(2008) 1272-1280.

Google Scholar

[3] M. Li, A. C. Ahyi, X. Zhu, Z. Chen, T. Isaacs-Smith, J. R. Williams, Journal of Electronic Materials. 39(2010) 540-544.

Google Scholar

[4] A. Bazin, J. Michaud, C. Autret-Lambert, F. Cayrel, T. Chassagne, M. Portail, Materials Science and Engineering: B. 171(2010) 120-126.

DOI: 10.1016/j.mseb.2010.03.084

Google Scholar

[5] X. Song, J. Biscarrat, J. -F. Michaud, F. Cayrel, M. Zielinski, T. Chassagne, Nuclear Instruments and Methods in Physics Research. B269(2011) 2020-(2025).

Google Scholar

[6] H. Naik, K. Tang, and T. P. Chow, Material Science Forum. 615-617(2009) 773-776.

Google Scholar

[7] F. Zhao, M. M. Islam, and C. -F. Huang, Materials Letters. 64(2010) 2593-2596.

Google Scholar
