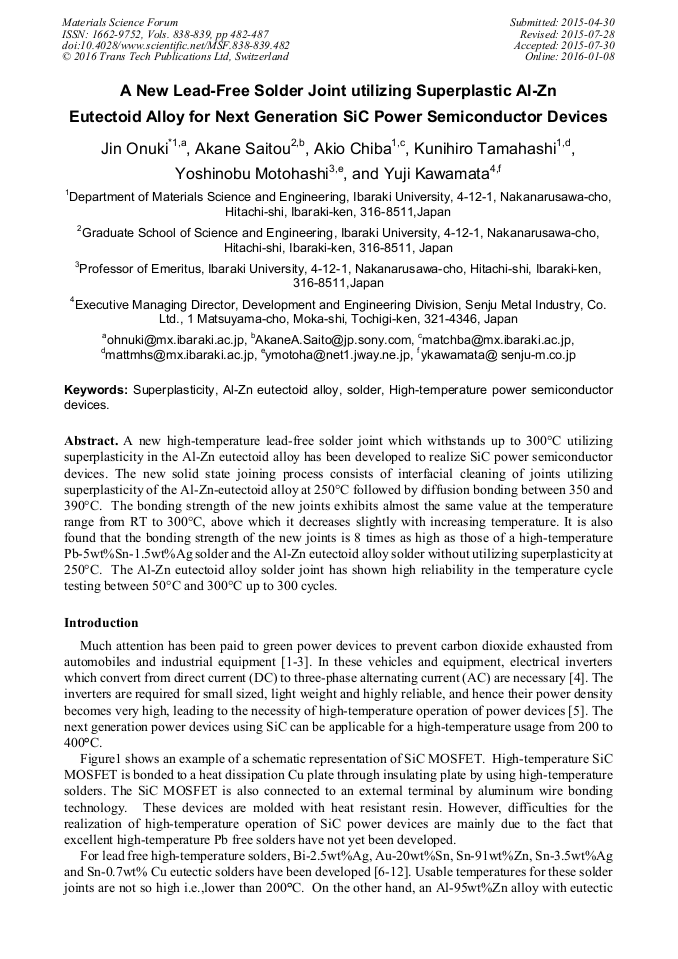

A New Lead-Free Solder Joint Utilizing Superplastic Al-Zn Eutectoid Alloy for Next Generation SiC Power Semiconductor Devices

Abstract:

A new high-temperature lead-free solder joint which withstands up to 300°C utilizing superplasticity in the Al-Zn eutectoid alloy has been developed to realize SiC power semiconductor devices. The new solid state joining process consists of interfacial cleaning of joints utilizing superplasticity of the Al-Zn-eutectoid alloy at 250°C followed by diffusion bonding between 350 and 390°C. The bonding strength of the new joints exhibits almost the same value at the temperature range from RT to 300°C, above which it decreases slightly with increasing temperature. It is also found that the bonding strength of the new joints is 8 times as high as those of a high-temperature Pb-5wt%Sn-1.5wt%Ag solder and the Al-Zn eutectoid alloy solder without utilizing superplasticity at 250°C. The Al-Zn eutectoid alloy solder joint has shown high reliability in the temperature cycle testing between 50°C and 300°C up to 300 cycles.

• Periodical: Materials Science Forum (Volumes 838-839)
• Pages: 482-487
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.838-839.482
• Online since: January 2016
• Authors: Jin Onuki*, Akane Saitou, Akio Chiba, Kunihiro Tamahashi, Yoshinobu Motohashi, Yuji Kawamata
• Keywords: Al-Zn-Eutectoid Alloy Solder, High-Temperature Power Semiconductor Devices, Superplasticity
