Preparation and Conductivity of Carbon Fiber Coated with Silver

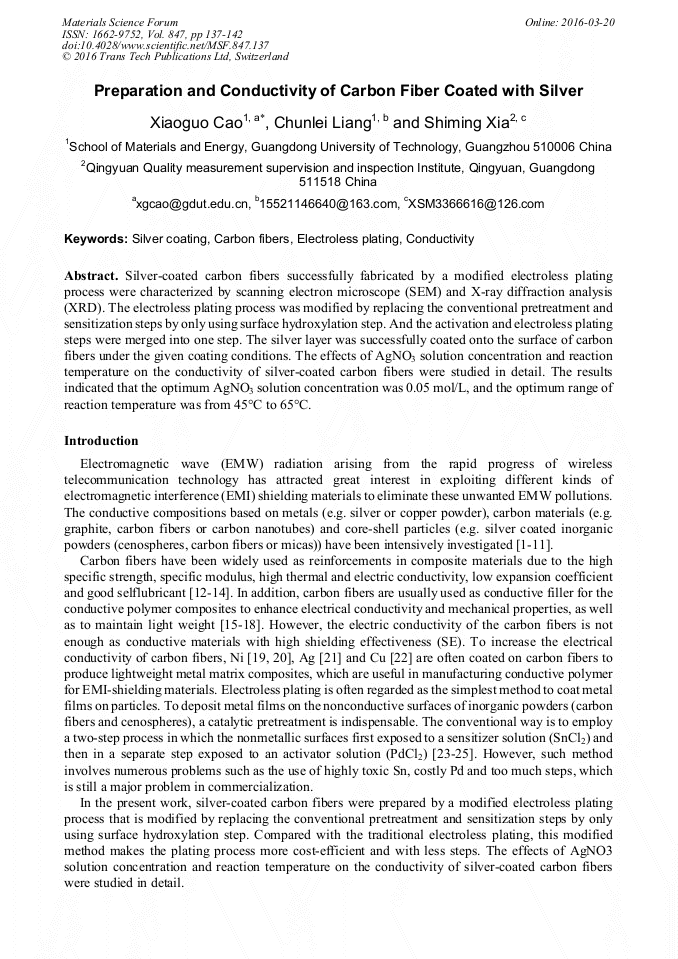

Article Preview

Abstract:

Silver-coated carbon fibers successfully fabricated by a modified electroless plating process were characterized by scanning electron microscope (SEM) and X-ray diffraction analysis (XRD). The electroless plating process was modified by replacing the conventional pretreatment and sensitization steps by only using surface hydroxylation step. And the activation and electroless plating steps were merged into one step. The silver layer was successfully coated onto the surface of carbon fibers under the given coating conditions. The effects of AgNO₃ solution concentration and reaction temperature on the conductivity of silver-coated carbon fibers were studied in detail. The results indicated that the optimum AgNO₃ solution concentration was 0.05 mol/L, and the optimum range of reaction temperature was from 45°C to 65°C.

You might also be interested in these eBooks

Materials and Technologies for Energy Supply and Environmental Engineering

Info:

Periodical:

Materials Science Forum (Volume 847)

Pages:

137-142

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.847.137

Citation:

Cite this paper

Online since:

March 2016

Authors:

Xiao Guo Cao*, Chun Lei Liang, Shi Ming Xia

Keywords:

Carbon Fibers, Conductivity, Electroless Plating, Silver Coating

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] D.I. Petukhov, M.N. Kirikova, A.A. Bessonov, M.J.A. Bailey, Nickel and copper conductive patterns fabricated by reactive inkjet printing combined with electroless plating. Materials Letters 132 (2014) 302-306.

DOI: 10.1016/j.matlet.2014.06.109

[2] X. Cong, P. Yan, Q. Xia, Z. Du, Modified fillers of carbon series conductive organic coatings. Materials Research Innovations 19 (2015) 362-365.

DOI: 10.1179/1432891714z.0000000001110

[3] B. -S. Yim, J. -M. Kim, Characteristics of Isotropically Conductive Adhesive (ICA) Filled with Carbon Nanotubes (CNTs) and Low-Melting-Point Alloy Fillers. Materials Transactions 51 (2010) 2329-2331.

DOI: 10.2320/matertrans.m2010301

[4] X.G. Cao, H.Y. Zhang, Preparation of silver-coated copper powder and its oxidation resistance research. Powder Technology 226 (2012) 53-56.

DOI: 10.1016/j.powtec.2012.04.012

[5] W. Wang, Q. Li, Y. Li, H. Xu, J. Zhai, Electroless Ag coating of fly ash cenospheres using polyaniline activator. Journal of Physics D-Applied Physics 42 (2009).

DOI: 10.1088/0022-3727/42/21/215306

[6] X.G. Cao, H.Y. Zhang, Investigation into conductivity of silver-coated cenosphere composites prepared by a modified electroless process. Applied Surface Science 264 (2013) 756-760.

DOI: 10.1016/j.apsusc.2012.10.116

[7] S.R. Mahapatra, V. Sridhar, D.K. Tripathy, Impedance analysis and electromagnetic interference shielding effectiveness of conductive carbon black reinforced microcellular EPDM rubber vulcanizates. Polymer Composites 29 (2008) 465-472.

DOI: 10.1002/pc.20421

[8] N. Yousefi, X. Sun, X. Lin, X. Shen, J. Jia, B. Zhang, B. Tang, M. Chan, J. -K. Kim, Highly Aligned Graphene/Polymer Nanocomposites with Excellent Dielectric Properties for High-Performance Electromagnetic Interference Shielding. Advanced Materials 26 (2014).

DOI: 10.1002/adma.201305293

[9] I. Tavman, I. Krupa, M. Omastova, M. Sarikanat, I. Novak, K. Sever, I. Ozdemir, Y. Seki, S. Podhradska, D. Moskova, E. Erbay, F. Guner, Effects of conductive graphite filler loading on physical properties of high-density polyethylene composite. Polymer Composites 33 (2012).

DOI: 10.1002/pc.22230

[10] X.G. Cao, H.Y. Zhang, Study of Pretreatment Techniques and Characterization of Electroless Silver on Cenospheres. Electronic Materials Letters 8 (2012) 519-522.

DOI: 10.1007/s13391-012-2055-5

[11] Y.N. Ko, H.Y. Koo, J.H. Kim, Y.C. Kang, Characteristics of silver-glass composite powders as the silver electrode for Si solar cells. Journal of Alloys and Compounds 491 (2010) 584-588.

DOI: 10.1016/j.jallcom.2009.11.008

[12] S. Chand, Carbon fibers for composites. Journal of Materials Science 35 (2000) 1303-1313.

[13] Z. Hua, Y. Liu, G. Yao, L. Wang, J. Ma, L. Liang, Preparation and Characterization of Nickel-Coated Carbon Fibers by Electroplating. Journal of Materials Engineering and Performance 21 (2012) 324-330.

DOI: 10.1007/s11665-011-9958-4

[14] W. Li, L. Liu, B. Shen, Y. Wu, W. Hu, Effect of Cu-coated short carbon fibers on the mechanical and electrical properties of the epoxy composites. Macromolecular Research 20 (2012) 366-371.

DOI: 10.1007/s13233-012-0041-2

[15] C. Zhang, L. Wang, J. Wang, C. -a. Ma, Self-assembly and conductive network formation of vapor-grown carbon fiber in a poly(vinylidene fluoride) melt. Carbon 46 (2008) 2053-(2058).

DOI: 10.1016/j.carbon.2008.08.018

[16] W. Thongruang, R.J. Spontak, C.M. Balik, Correlated electrical conductivity and mechanical property analysis of high-density polyethylene filled with graphite and carbon fiber. Polymer 43 (2002) 2279-2286.

DOI: 10.1016/s0032-3861(02)00043-5

[17] H.W. He, J.L. Wang, K.X. Li, Thermal properties of carbon fibre/epoxy composites modified by novolac resin. Materials Research Innovations 17 (2013) 425-429.

DOI: 10.1179/1433075x13y.0000000087

[18] Y. XueLing, S. Jinru, C. JingLiang, B. Dongqiao, Direct current resistance testing methods of carbon fibre reinforced polymer. Materials Research Innovations 19 (2015) 64-69.

DOI: 10.1179/1432891715z.0000000001338

[19] J. Li, Y. Wang, J. Tang, Y. Wang, T. Wang, L. Zhang, G. Zheng, Direct growth of mesoporous carbon-coated Ni nanoparticles on carbon fibers for flexible supercapacitors. Journal of Materials Chemistry A 3 (2015) 2876-2882.

DOI: 10.1039/c4ta05668j

[20] B. -J. Kim, W. -K. Choi, M. -K. Um, S. -J. Park, Effects of nickel coating thickness on electric properties of nickel/carbon hybrid fibers. Surface & Coatings Technology 205 (2011) 3416-3421.

DOI: 10.1016/j.surfcoat.2010.12.007

[21] J.M. He, Y.D. Huang, AFM characterization of interphase properties of silver-coated carbon fibre reinforced epoxy composites. Polymers & Polymer Composites 14 (2006) 123-133.

DOI: 10.1177/096739110601400201

[22] B.B. Singh, M. Balasubramanian, Processing and properties of copper-coated carbon fibre reinforced aluminium alloy composites. Journal of Materials Processing Technology 209 (2009) 2104-2110.

DOI: 10.1016/j.jmatprotec.2008.05.002

[23] J. Rams, A. Urena, M.D. Escalera, M. Sanchez, Electroless nickel coated short carbon fibres in aluminium matrix composites. Composites Part a-Applied Science and Manufacturing 38 (2007) 566-575.

DOI: 10.1016/j.compositesa.2006.02.010

[24] S. Shukla, S. Seal, S. Schwarz, D. Zhou, Synthesis and characterization of nanocrystalline silver coating of fly ash cenosphere particles by electroless process. Journal of Nanoscience and Nanotechnology 1 (2001) 417-424.

DOI: 10.1166/jnn.2001.063

[25] Y. -j. Hu, H. -y. Zhang, X. -l. Cheng, F. Li, T. -l. Chen, Electroless plating of silver on cenosphere particles and the investigation of its corrosion behavior in composite silicon rubber. Applied Surface Science 257 (2011) 2813-2817.

DOI: 10.1016/j.apsusc.2010.10.066
