Fine-Grained W-Ni-Fe Heavy Alloys Prepared by Spark Plasma Sintering

Abstract:

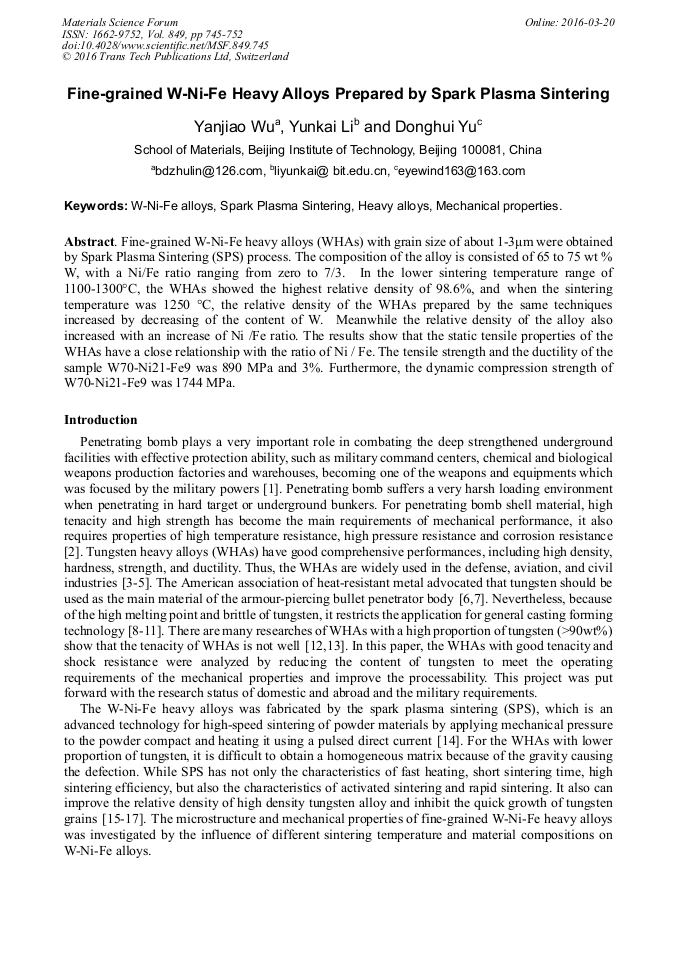

Fine-grained W-Ni-Fe heavy alloys (WHAs) with grain size of about 1-3μm were obtained by Spark Plasma Sintering (SPS) process. The composition of the alloy is consisted of 65 to 75 wt % W, with a Ni/Fe ratio ranging from zero to 7/3. In the lower sintering temperature range of 1100-1300°C, the WHAs showed the highest relative density of 98.6%, and when the sintering temperature was 1250 °C, the relative density of the WHAs prepared by the same techniques increased by decreasing of the content of W. Meanwhile the relative density of the alloy also increased with an increase of Ni /Fe ratio. The results show that the static tensile properties of the WHAs have a close relationship with the ratio of Ni / Fe. The tensile strength and the ductility of the sample W70-Ni21-Fe9 was 890 MPa and 3%. Furthermore, the dynamic compression strength of W70-Ni21-Fe9 was 1744 MPa.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 745-752
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.745
• Online since: March 2016
• Authors: Yan Jiao Wu, Yun Kai Li, Dong Hui Yu
• Keywords: Heavy Alloys, Mechanical Properties, Spark Plasma Sintering, W-Ni-Fe Alloys

References

[1] H.W. Mc, A.R. Bentley, The development of high strength and toughness fibrous microstructures in Tungsten-Nickel-Iron alloys for kinetic energy penetrator application, Proceeding of Tungsten Refractory Metal. 15 (5) (1994) 37-45.

[2] T. Wang, W.L. Yu, S.L. Wang, Burrow weapons to the current situation and trend of development of abroad, Missile and space launch technology. 5 (2005) 51-56.

[3] S. Park, K. Kim, Lee S, Dynamic deformation behavior of an oxide-dispersed tungsten heavy alloy fabricated by mechanical alloying, Metall. Mater. Trans. A. 32 (2001) 2011-(2020).

DOI: 10.1007/s11661-001-0013-1

[4] Z.H. Zhang, F.C. Wang, Hydrostatic extrusion deformation and fracture of 93 tungsten alloy is studied, Rare metal materials science and engineering. 34 (12) (2005) 1990-(1993).

[5] D.P. Xiang, L. Ding, Y.Y. Li, J.B. Li, X.Q. Li, C. Li, Microstructure and mechanical properties of fine-grained W–7Ni–3Fe heavy alloy by spark plasma sintering. Mater. Sci. Eng. A. 551 (2012) 95-99.

DOI: 10.1016/j.msea.2012.04.099

[6] B.S. Zhang, Z.J. Kang, High-density tungsten alloy characteristics and its application, Chinese tungsten industry. 1 (1999) 178-182.

[7] C.X. Zhang, L.B. Qin, Penetrator with the latest progress in the study of tungsten alloy in our country and prospect, Powder metallurgy materials science and engineering. 11 (2006) 127-132.

[8] J.F. Yu, The application of tungsten-From the electronic materials to military ammunition, Chinese tungsten industry. 16 (2001) 39-41.

[9] D. Lv, W.P. Zhou, The development of China's tungsten heavy alloys, Chinese tungsten industry. 24 (2009) 109.

[10] Z.W. Zhang, G. Ran, J.G. Zhou. The research progress of high-density tungsten alloy, Heat Treat. Met. 28 (2003) 9.

[11] B.S. Zhang, Z.J. Kang, The penetrating characteristics and its applications of the high-density tungsten alloys, Chinese tungsten industry, 14 (1999) 178-181.

[12] Y.Y. Li, K. Hu, X.Q. Li, X. Ai, S.G. Qu, Fine-grained 93W–5. 6Ni–1. 4Fe heavy alloys with enhanced performance prepared by spark plasma sintering, Mater. Sci. Eng. A. 573 (2013) 245-252.

DOI: 10.1016/j.msea.2013.02.069

[13] L. Ding, D.P. Xiang, Y.Y. Li, C. Li, J.B. Li, Effects of sintering temperature on fine-grained tungsten heavy alloy produced by high-energy ball milling assisted spark plasma sintering, Int. J. Refract. Met. Hard Mater. 33 (2012) 65-69.

DOI: 10.1016/j.ijrmhm.2012.02.017

[14] V.N. Chuvildeev, D.V. Panov, M.S. Boldin, A.V. Nokhrin, Yu.V. Blagoveshchensky, N.V. Sakharov, S.V. Shotin, D.N. Kotkov, Structure and properties of advanced materials obtained by Spark Plasma Sintering, Acta Astronautica. 109 (2015) 172-176.

DOI: 10.1016/j.actaastro.2014.11.008

[15] M. Tokita, Chapter 11. 2. 3—spark plasma sintering (SPS) method, systems, and applications, Handbook of Advanced Ceramics, second edition, 2013, 1149-1177.

DOI: 10.1016/b978-0-12-385469-8.00060-5

[16] Z.J. Shen, M. Johnsson, Z. Zhao, M. Nygren, Spark plasma sintering of alumina, J. Am. Ceram. Soc. 85 (2002) 1921-(1927).

DOI: 10.1111/j.1151-2916.2002.tb00381.x

[17] T. Takeuchi, M. Tabuchi, Y. Suyama, H. Kageyama, Preparation of dense BaTiO3 ceramics with submicrometer grains by spark plasma sintering, J. Am. Ceram. Soc. 82 (1999) 939-943.

DOI: 10.1111/j.1151-2916.1999.tb01857.x

[18] K. Hu, X.Q. Li, C. Yang, Y.Y. Li, Densification and microstructure evolution during SPS consolidation process in W-Ni-Fe system, Trans. Nonferrous Met. Soc. China. 21 (2011) 493-501.

DOI: 10.1016/s1003-6326(11)60742-5
