Preparation, Corrosion and Cytocompatability In Vitro of Fluoride-Coated Mg-Zn-Zr Alloy

Abstract:

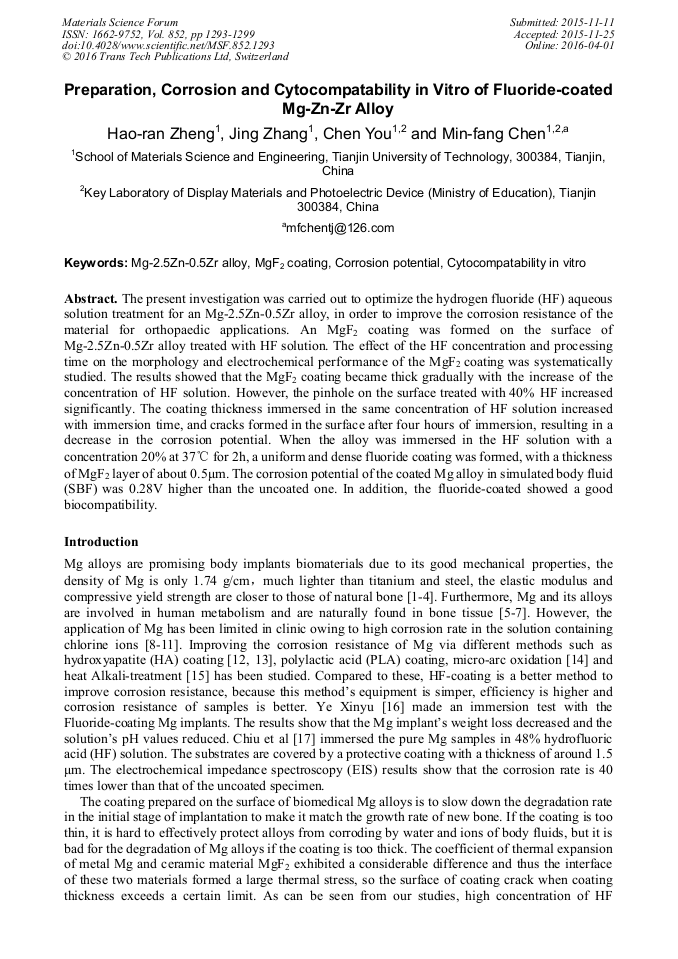

The present investigation was carried out to optimize the hydrogen fluoride (HF) aqueous solution treatment for an Mg-2.5Zn-0.5Zr alloy, in order to improve the corrosion resistance of the material for orthopaedic applications. An MgF₂ coating was formed on the surface of Mg-2.5Zn-0.5Zr alloy treated with HF solution. The effect of the HF concentration and processing time on the morphology and electrochemical performance of the MgF₂ coating was systematically studied. The results showed that the MgF₂ coating became thick gradually with the increase of the concentration of HF solution. However, the pinhole on the surface treated with 40% HF increased significantly. The coating thickness immersed in the same concentration of HF solution increased with immersion time, and cracks formed in the surface after four hours of immersion, resulting in a decrease in the corrosion potential. When the alloy was immersed in the HF solution with a concentration 20% at 37°C for 2h, a uniform and dense fluoride coating was formed, with a thickness of MgF₂ layer of about 0.5μm. The corrosion potential of the coated Mg alloy in simulated body fluid (SBF) was 0.28V higher than the uncoated one. In addition, the fluoride-coated showed a good biocompatibility.

• Periodical: Materials Science Forum (Volume 852)
• Pages: 1293-1299
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.852.1293
• Online since: April 2016
• Authors: Hao Ran Zheng, Jing Zhang, Chen You, Min Fang Chen
• Keywords: Corrosion Potential, Cytocompatability In Vitro, Mg-2.5Zn-0.5Zr Alloy, MgF₂ Coating

References

[1] Avedesian, Michael M., Hugh Baker: AsmInternational, (1999).

[2] Hunt T S: Am. J. Sci., 2nd Ser., 28 (1859): 377.

[3] Jürgen Vormann: Molecular Aspects of Medicine 24 (2003) 27.

[4] B. Vamsi Krishna, Susmita Bose, Amit Bandyopadhyay: Acta Biomaterialia 3 (2007) 997.

[5] P. Anastalsadis, S. Atassi, M. Rimpler: Journal of Perinatal Medicine 9 (1981) 228.

[6] H.D. Kruse, Elsa R. Orent, E.V. McCollum: The Journal of Biological Chemistry 96 (1932) 519.

[7] J. Luis Noronha, George M. Matuschak: Applied Physiology in Intensive Care Medicine (2006)：157.

[8] Ozgur Duygulu, R. Alper Kaya, Gizem Oktay, A. Arslan Kaya: Materials Science Forum 546-549 (2007) 421.

DOI: 10.4028/www.scientific.net/msf.546-549.421

[9] G. Song, A. Atrens, D. St John, X. Wu, J. Nairn: Corrosion Science 39 (1997) (1981).

[10] R. Zeng, W. Dietzel, F. Witte, N. Hort, C. Blawert: Advanced Engineering Materials 10 (2008) B3.

[11] SONG Guang-Ling, SONG Shi-Zhe: Acta Physico-Chimica Sinica 22 (2006) 1222.

[12] Cong Wang, J Ma, Wen Cheng, Ruifang Zhang: Materials Letters 57 (2002) 99.

[13] J. Ma, C.H. Liang, L.B. Kong, C. Wang: Journal of Materials Science: Materials in Medicine 14 (2003) 797.

[14] J.H. Gao, S.K. Guan, J. Chen, L.G. Wang, S.J. Zhu, Z.W. Ren: Applied Surface Science 257 (2011) 2231.

[15] Liying Qiao, Jiacheng Gao, Yong Wang, Fengyu Xie: Advanced Materials Research 415-417 (2012) 1279.

[16] Xin-Yu Ye, Min-Fang Chen, Chen You, De-Bao Liu: The influence of HF treatment on corrosion resistance and in vitro biocompatibility of Mg-Zn-Zr alloy, Frontiers of Materials Science in China 4 (2010) 132.

DOI: 10.1007/s11706-010-0025-0

[17] K.Y. Chiu, M.H. Wong, F.T. Cheng, H.C. Man: Surface and Coatings Technology 202 (2007) 590.
