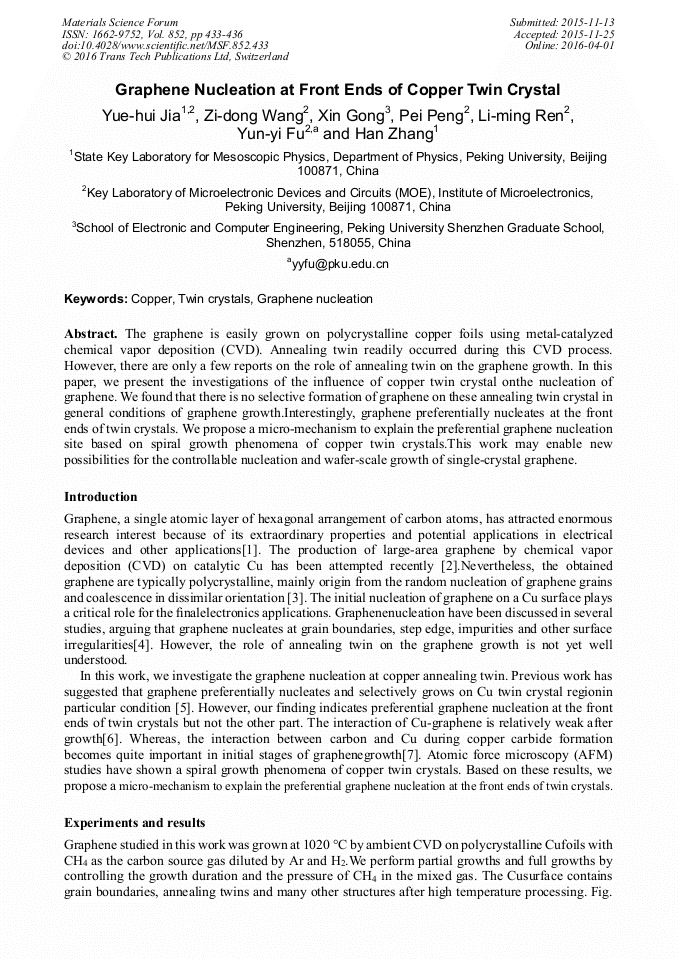

Graphene Nucleation at Front Ends of Copper Twin Crystal

Abstract:

The graphene is easily grown on polycrystalline copper foils using metal-catalyzed chemical vapor deposition (CVD). Annealing twin readily occurred during this CVD process. However, there are only a few reports on the role of annealing twin on the graphene growth. In this paper, we present the investigations of the influence of copper twin crystal onthe nucleation of graphene. We found that there is no selective formation of graphene on these annealing twin crystal in general conditions of graphene growth.Interestingly, graphene preferentially nucleates at the front ends of twin crystals. We propose a micro-mechanism to explain the preferential graphene nucleation site based on spiral growth phenomena of copper twin crystals.This work may enable new possibilities for the controllable nucleation and wafer-scale growth of single-crystal graphene.

• Periodical: Materials Science Forum (Volume 852)
• Pages: 433-436
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.852.433
• Online since: April 2016
• Authors: Yue Hui Jia, Zi Dong Wang, Xin Gong, Pei Peng, Li Ming Ren, Yun Yi Fu, Han Zhang
• Keywords: Copper, Graphene Nucleation, Twin Crystals

References

[1] Geim, A.K., Graphene: Status and Prospects. SCIENCE, 2009. 324(5934): pp.1530-1534.

DOI: 10.1126/science.1158877

[2] Li, X., et al., Large-Area Synthesis of High-Quality and Uniform Graphene Films on Copper Foils. Science, 2009. 324(5932): pp.1312-1314.

DOI: 10.1126/science.1171245

[3] Yu, Q., et al., Control and characterization of individual grains and grain boundaries in graphene grown by chemical vapour deposition. Nature Materials, 2011. 10(6): pp.443-449.

[4] Han, G.H., et al., Influence of Copper Morphology in Forming Nucleation Seeds for Graphene Growth. Nano Letters, 2011. 11(10): pp.4144-4148.

DOI: 10.1021/nl201980p

[5] Hayashi, K., et al., Selective Graphene Formation on Copper Twin Crystals. Journal of the American Chemical Society, 2012. 134(30): pp.12492-12498.

DOI: 10.1021/ja300811p

[6] Giovannetti, G., et al., Doping graphene with metal contacts. PHYSICAL REVIEW LETTERS, 2008. 101(0268032).

[7] Esconjauregui, S., C.M. Whelan and K. Maex, The reasons why metals catalyze the nucleation and growth of carbon nanotubes and other carbon nanomorphologies. Carbon, 2009. 47(3): pp.659-669.

DOI: 10.1016/j.carbon.2008.10.047

[8] Wood, J.D., et al., Effects of Polycrystalline Cu Substrate on Graphene Growth by Chemical Vapor Deposition. Nano Letters, 2011. 11(11): pp.4547-4554.

DOI: 10.1021/nl201566c
