Investigations on Hot Tearing Susceptibility and its Mechanism of Mg-Zn-Y Alloys

Abstract:

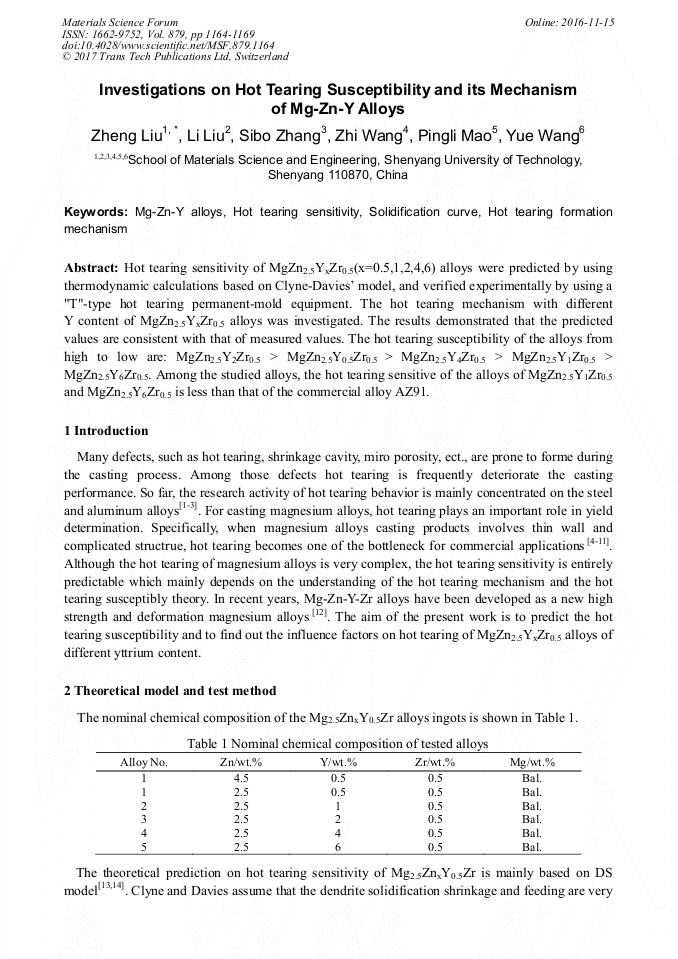

Hot tearing sensitivity of MgZn_2.5Y_xZr_0.5(x=0.5,1,2,4,6) alloys were predicted by using thermodynamic calculations based on Clyne-Davies’ model, and verified experimentally by using a "T"-type hot tearing permanent-mold equipment. The hot tearing mechanism with different Y content of MgZn_2.5Y_xZr_0.5 alloys was investigated. The results demonstrated that the predicted values are consistent with that of measured values. The hot tearing susceptibility of the alloys from high to low are: MgZn_2.5Y₂Zr_0.5 > MgZn_2.5Y_0.5Zr_0.5 > MgZn_2.5Y₄Zr_0.5 > MgZn_2.5Y₁Zr_0.5 > MgZn_2.5Y₆Zr_0.5. Among the studied alloys, the hot tearing sensitive of the alloys of MgZn_2.5Y₁Zr_0.5 and MgZn_2.5Y₆Zr_0.5 is less than that of the commercial alloy AZ91.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 1164-1169
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.1164
• Online since: November 2016
• Authors: Zheng Liu*, Li Liu, Si Bo Zhang, Zhi Wang, Ping Li Mao, Yue Wang
• Keywords: Hot Tearing Formation Mechanism, Hot Tearing Sensitivity, Mg-Zn-Y Alloy, Solidification Curve

References

[1] Ankara A, Ari HB, Determination of hot crack susceptibility in various kinds of steels[J], Mater Des. 17(1996) 261-5.

DOI: 10.1016/s0261-3069(97)00019-8

[2] Li M, Wang HW, Wei ZJ, Zhu ZJ. The effect of Y on the hot-tearing resistance of Al-5 wt. % Cu based alloy[J], Mater Des. 31(2010) 2483-7.

[3] Zhi Wang, Yuanding Huang, Amirthalingam Srinivasan, et al. Hot tearing susceptibility of binary Mg–Y alloy castings[J], Materials and Design. 47(2013) 90-100.

DOI: 10.1016/j.matdes.2012.12.044

[4] Mark A. Easto N, Mark A. Gibson, et al. An a priori hot-tearing indicator applied to die-cast magnesium-rare earth alloys[J], Metallurgical and Materials Transactions A. 45A(2014)3586-3595.

DOI: 10.1007/s11661-014-2272-7

[5] Hansen P N, Sahm P R. How to Select and Use Criterion Functions in Solidification Simulation[J], AFS Transaction. 51(1993) 443-446.

[6] Clyne T W, Davies G J. The Influence of Composition on Solidification Cracking Susceptibility in Binary Alloy Systems[J], The British Foundryman. 74(1981) 65-73.

[7] Rappaz M, Drezet J M, Gremaud M. A New Hot-Cracking Criterion[J], Metallurgical and Materials Transactions A. 30A(2)(1999) 448-455.

DOI: 10.1007/s11661-999-0334-z

[8] Wang Henglin, Zheng Xianshu, Yao Shan, Jin Junze. Equivalent strain criterion for hot cracking prediction[J], Journal of Dalian University of Technology. 38(2)(1998)194-197.

[9] Li Huaji, Li Gesheng, Zhang Rong, Zhen Bingren. Using the Finite Element Method to Predict the Dispersed Shrinkage and Hot Tearing of the Pump Shell Castings[J], Jorunal of Chongqing University. 21(4)(1998 ) 84-89.

[10] Cao Luhua, Ding Hao, Fu Hengzhi. SEM Micro analysis for Hot cracks[J], Foundry Technology. (1)(1997) 47-48.

[11] Huang Zhanghong, Zhang Yan, Chen Rongshi, Han Enhou. Hot Tearing Susceptibility of Mg-Zn-Y-Zr Alloys[J], Foundry. 58(8)(2009) 788-792.

[12] Yang Shuqi, Guo Huaming, Liu Zili. Effects of Y on microstructure and mechanical properties of Mg-Zn alloys[J], Materials for Mechanical Engineering. 31(8)(2007) 60-63.

[13] Clyne T W, Davies G J. The Influence of Composition on Solidification Cracking Susceptibility in Binary Alloy Systems, Brit. Found. 74(1981) 65-73.

[14] Clyne T W, Davies G J. A Quantitative solidification Cracking Test for Castings and an Evaluation of Cracking in Al-Mg Alloys, Brit. Found. 68(1975) 238-244.

[15] Z. Liu*, S. B. Zhang, P. L. Mao and F. Wang. Effects of Y on Hot Tearing Formation Mechanism of Mg–Zn–Y–Zr Alloys, Materials Science and Technology. 30 (2014 )1214-1222.

DOI: 10.1179/1743284713y.0000000437

[16] Pingli Mao, Feng Wang, Zheng Liu, Thermodynamics and Phase Diagram of Magnesium Alloy[M}, Beijing: Machinery Industry Press. 2014. 249-250.

[17] Feng Juanni, Guo Xuefeng, Xu Chunjie, Zhang Zhongming, The Casting Microstructure and Its Phase Transition Point of Mg-Zn-Y Alloys[J], Journal of The Chinese Rare Earth Societ. 24(1) (2006) 86-90.
