Analysis of the Static Recrystallization Behavior of Nb-Ti Microalloyed Steels Including Low Strain Levels

L. Sanz; Beatriz Pereda; B. López

doi:10.4028/www.scientific.net/MSF.879.1170

Paper Titles

Microstructure of Z-Phase Strengthened Martensitic Steels: Meeting the 650°C Challenge
p.1147

Morphological Evolution of Carbides in DZ125 Superalloy during Heat Treatment
p.1153

Quasi-Static and Dynamic Properties of Ti-3.5Al-2.5V-1.5Fe-0.25O Titanium Alloy Plates
p.1159

Investigations on Hot Tearing Susceptibility and its Mechanism of Mg-Zn-Y Alloys
p.1164

Analysis of the Static Recrystallization Behavior of Nb-Ti Microalloyed Steels Including Low Strain Levels
p.1170

Macrosegregation of Alloying Elements in Hot Top of Large Size High Strength Steel Ingot
p.1176

Influence of Coiling on Microstructural Evolution and Mechanical Properties of Strip-Cast Low-Carbon Low-Niobium Steel
p.1182

Preparation and Squeeze Casting of Nano-SiC_P/A356 Composite Assisted with Ultrasonic Vibration Process
p.1188

Enabling Diamond Deposition with Cold Spray through the Coated Particle Method
p.1194

HomeMaterials Science ForumMaterials Science Forum Vol. 879Analysis of the Static Recrystallization Behavior...

Analysis of the Static Recrystallization Behavior of Nb-Ti Microalloyed Steels Including Low Strain Levels

Abstract:

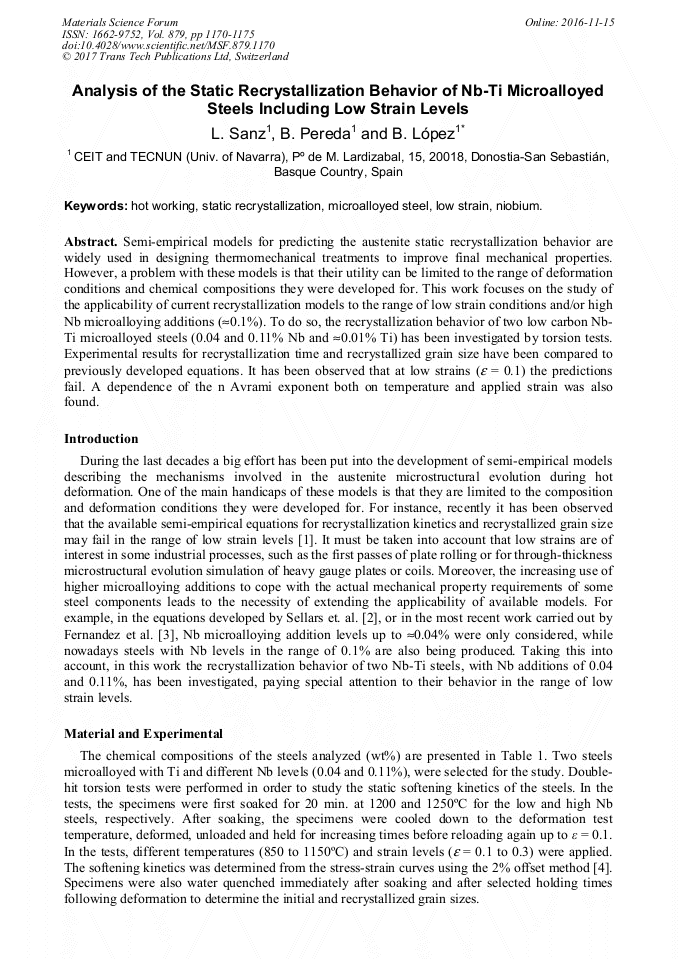

Semi-empirical models for predicting the austenite static recrystallization behavior are widely used in designing thermomechanical treatments to improve final mechanical properties. However, a problem with these models is that their utility can be limited to the range of deformation conditions and chemical compositions they were developed for. This work focuses on the study of the applicability of current recrystallization models to the range of low strain conditions and/or high Nb microalloying additions (≈0.1%). To do so, the recrystallization behavior of two low carbon Nb-Ti microalloyed steels (0.04 and 0.11% Nb and ≈0.01% Ti) has been investigated by torsion tests. Experimental results for recrystallization time and recrystallized grain size have been compared to previously developed equations. It has been observed that at low strains (ε = 0.1) the predictions fail. A dependence of the n Avrami exponent both on temperature and applied strain was also found.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volume 879)

Pages:

1170-1175

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.879.1170

Citation:

Cite this paper

Online since:

November 2016

Authors:

L. Sanz, Beatriz Pereda, B. López*

Keywords:

Hot Working, Low Strain, Microalloyed Steel, Niobium, Static Recrystallization

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[10] for the low Nb steel at these strain conditions are relatively good. To study the effect of strain on the recrystallized microstructure, in Fig. 7(b) logDSRX vs loge has been plotted. The slope of the linear regression of the data provides the strain exponent for recrystallized grain size calculation (DSRX∝ε-m). The experimental value determined from the data, m = 0. 47, is lower than those reported in the equations considered in Fig. 7(a). However, m values in the range of those obtained in the present work have also been reported for C-Mn and microalloyed steels [7, 8]. Difficulties in the measurement of austenite grain size due to martensitic transformation may in part explain the spread in the literature data.

Google Scholar
