Temperature Field Evolution during Flash Butt Welding of Railway Rails

Article Preview

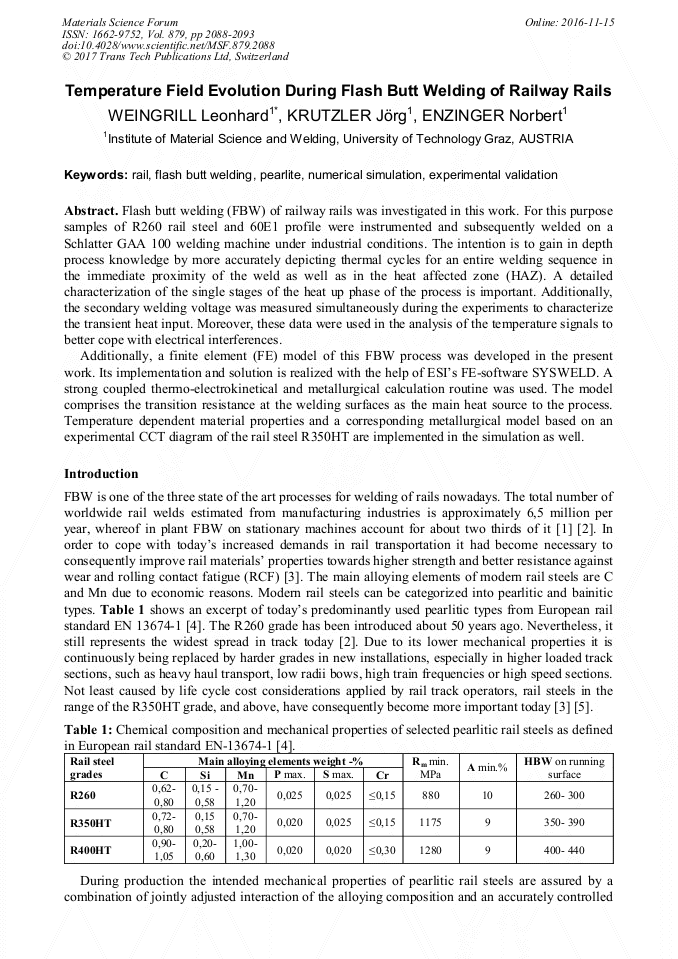

Abstract:

Flash butt welding (FBW) of railway rails was investigated in this work. For this purpose samples of R260 rail steel and 60E1 profile were instrumented and subsequently welded on a Schlatter GAA 100 welding machine under industrial conditions. The intention is to gain in depth process knowledge by more accurately depicting thermal cycles for an entire welding sequence in the immediate proximity of the weld as well as in the heat affected zone (HAZ). A detailed characterization of the single stages of the heat up phase of the process is important. Additionally, the secondary welding voltage was measured simultaneously during the experiments to characterize the transient heat input. Moreover, these data were used in the analysis of the temperature signals to better cope with electrical interferences. Additionally, a finite element (FE) model of this FBW process was developed in the present work. Its implementation and solution is realized with the help of ESI’s FE-software SYSWELD. A strong coupled thermo-electrokinetical and metallurgical calculation routine was used. The model comprises the transition resistance at the welding surfaces as the main heat source to the process. Temperature dependent material properties and a corresponding metallurgical model based on an experimental CCT diagram of the rail steel R350HT are implemented in the simulation as well.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

2088-2093

Citation:

Online since:

November 2016

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2017 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] J. Keichel and R. Gehrmann, Neues Thermit-Schweißverfahren SkV-Elite, Elektro Thermit GmbH & Co KG Halle Germany, EI-Eisenbahingenieur, p.50–53, Sep-(2008).

Google Scholar

[2] A. Zlatnik, Welding Competence Center voestalpine Schienen GmbH. Donawitz AUSTRIA, (2015).

Google Scholar

[3] G. Girsch, J. Keichel, R. Gehrmann, A. Zlatnik, and N. Frank, Advanced Rail Steels for Heavy Haul Application-Track Performance and Weldability, 9th Int. Heavy Haul Conf., p.171–178, (2009).

Google Scholar

[4] EN 13674-1: 2011 Bahnanwendungen - Oberbau -Schienen Teil 1: Vignolschienen ab 46kg/m;, Österreichisches Normungsinstitut, (2011).

Google Scholar

[5] S. Prohaska and J. Albert, Next-generation super-premium rail steels hit the tracks, " voestalpine Schienen GmbH, Austria, 2015. [Online]. Available: http: /www. railjournal. com/index. php/track/next-generation-super-premium-rail-steels-hit-the-tracks. html, channel=531.

Google Scholar

[6] D. Embury, 8 - The formation of pearlite in steels, Phase Transform. Steels Fundam. Diffus. Transform., vol. 1, no. 1930, p.276–310, (2012).

DOI: 10.1533/9780857096104.2.276

Google Scholar

[7] E. M. Taleff, J. J. Lewandowski, and B. Pourladian, Microstructure-property relationships in pearlitic eutectoid and hypereutectoid carbon steels, Jom, vol. 54, no. 7, p.25–30, (2002).

DOI: 10.1007/bf02700982

Google Scholar

[8] F. G. Caballero, C. García De Andrés, and C. Capdevila, Characterization and morphological analysis of pearlite in a eutectoid steel, Mater. Charact., vol. 45, no. 2, p.111–116, (2000).

DOI: 10.1016/s1044-5803(00)00056-5

Google Scholar

[9] M. D. G. M. da F. Gomes, L. H. de Almeida, L. C. F. C. Gomes, and I. Le May, Effects of Microstructural Parameters on the Mechanical Properties of Eutectoid Rail Steels, Mater. Charact., vol. 39, no. 97, p.1–14, (1997).

DOI: 10.1016/s1044-5803(97)00086-7

Google Scholar

[10] K. M. Wu and H. K. D. H. Bhadeshia, Extremely fine pearlite by continuous cooling transformation, Scr. Mater., vol. 67, no. 1, p.53–56, (2012).

DOI: 10.1016/j.scriptamat.2012.03.019

Google Scholar

[11] M. Maalekian, Friction Welding of Rails, PhD Th. Graz University of Technology, (2007).

Google Scholar

[12] A. Skyttebol and B. L. Josefson, Numerical Simulation of Flash-Butt-Welding of Railway Rails, in Mathematical Modelling of Weld Phenomena 7, 2004, p.21.

Google Scholar

[13] D. Tawfik, P. J. Mutton, and W. K. Chiu, Modifying residual stress levels in rail flash-butt welds using localised rapid post-weld heat treatment and accelerated cooling, Int. Heat Treat. Surf. Eng., vol. 2, no. 3–4, p.126–130, (2008).

DOI: 10.1179/174951508x429212

Google Scholar

[14] Y. Li and F. Zhang, Numerical Simulation Of Flash Butt Welding Of High Manganese Steel Crossing With Carbon Steel Rail, Adv. Mater. Res., vol. 123–125, p.571–574, (2010).

DOI: 10.4028/www.scientific.net/amr.123-125.571

Google Scholar

[15] X. -F. Xu, L. Liu, and G. Zji-Ke, Finite element analysis on the temperature field distribution of flash butt welding of rail, J. Shanghai Jiaotong Univ. China, vol. 42, no. 5, p.778–781, (2008).

Google Scholar

[16] T. Kuroda and M. Shimada, Micro flash butt welding of super duplex stainless steel with Zr-based metallic glass insert, Vacuum, vol. 83, no. 1, p.153–156, (2008).

DOI: 10.1016/j.vacuum.2008.03.089

Google Scholar
