Solid-State Bonding of 5052 Aluminum Alloy/316L Stainless Steel by Using Organic Salt Formation/Decomposition Reaction

Abstract:

The effect of metal salt coating process on the bond strength of the bonded interface of 5052 aluminum alloy and 316L stainless steel was investigated by SEM observations of interfacial microstructures and fractured surfaces. Aluminum alloy surfaces were coated by boiling in 5% aqueous solution of NaOH for 5 s and 98% formic acid and 99.7% acetic acid for 20 s and 20 s respectively. Bonding process was performed at bonding temperature of 733 ~ 773 K under a pressure of 20 MPa (bonding time of 900 s). From this study, it is found out that the bonded strength of the joint increased with the rise in bonding temperature with or without metal salt coating process. However, it is understood that with metal salt coating process, high strength joint can be achieved with lesser deformation and lower bonding temperature. From the experimental results, it is found out that metal salt generation processing is effective at removing oxide film and substitution to a metal salt on the aluminum surface.

You might also be interested in these eBooks

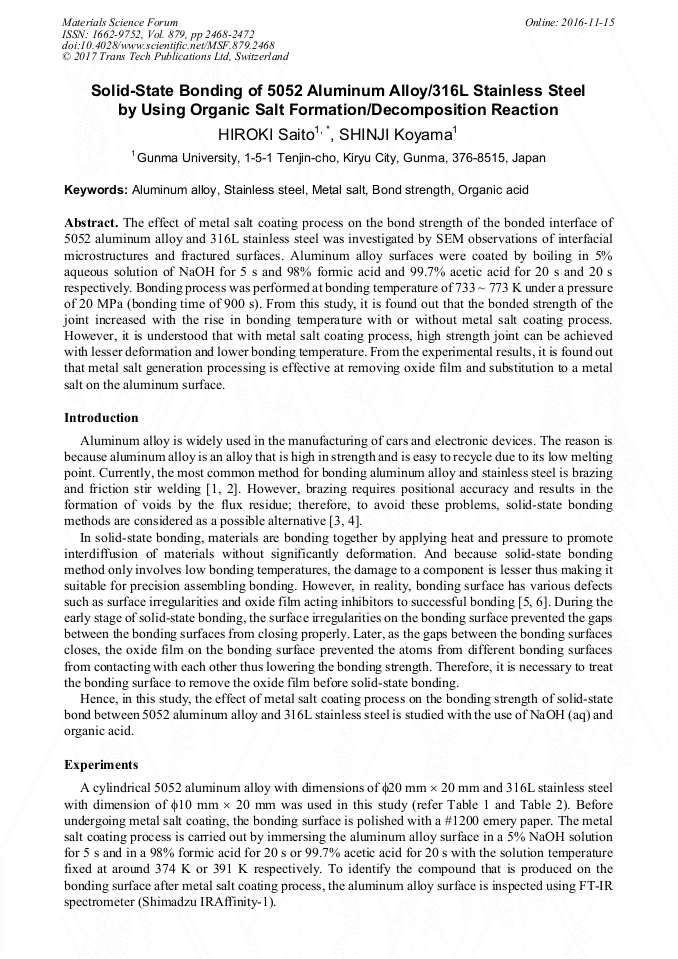

View Preview

Info:

Periodical:

Materials Science Forum (Volume 879)

Pages:

2468-2472

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.879.2468

Citation:

Cite this paper

Online since:

November 2016

Authors:

Hiroki Saito*, Shinji Koyama

Keywords:

Aluminum Alloy, Bond Strength, Metal Salt, Organic Acid, Stainless Steel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] W. Dai, S. Xue, J. Lou and S. Wang, Development of Al–Si–Zn–Sr filler metals for brazing 6061 aluminum alloy, Mater. Des. 42 (2012) 395-402.

DOI: 10.1016/j.matdes.2012.06.031

Google Scholar

[2] F. M. Ghaini, M. Sheikhi, M. J. Torkamany and J. Sabbaghzadeh, The relation between liquation and solidification cracks in pulsed laser welding of 2024 aluminium alloy, Mater. Sci. Eng. A 519 (2009) 167-171.

DOI: 10.1016/j.msea.2009.04.056

Google Scholar

[3] J. Hu and Q. Zhang, Investigation of pseudo-ternary system AlF3–KF–KCl, Thermochim. Acta 404 (2003) 3-7.

DOI: 10.1016/s0040-6031(03)00161-8

Google Scholar

[4] W. Dai, S. Xue, J. Lou, Y. Low and S. Wang, Torch brazing 3003 aluminum alloy with Zn—Al filler metal, Trans. Nonfer. Met. Soc. China 22 (2012) 30-35.

DOI: 10.1016/s1003-6326(11)61135-7

Google Scholar

[5] S. Koyama, M. Takahashi and K. Ikeuchi, Behavior of Oxide Film in Transient-Liquid-Phase Bonding of Tin with Filler of Bismuth Film, Mater. Sci. Forum 539-543 (2007) 3503-3507.

DOI: 10.4028/www.scientific.net/msf.539-543.3503

Google Scholar

[6] S. Koyama, M. Takahashi and K. Ikeuchi, Influence of surface treatment on interfacial microstructure and bond strength of diffusion-bonded tin, Solid State Ion. 172 (2004) 397-401.

DOI: 10.1016/j.ssi.2004.03.023

Google Scholar

[7] Y. Liu, Z. F. Zhang, J. Halloran and R. M. Laine, Yttrium aluminum garnet fibers from metalorganic process, J. Am. Ceram. Soc. 81 (1998) 629-645.

DOI: 10.1111/j.1151-2916.1998.tb02383.x

Google Scholar

[8] V. Yu. Tregubenko, I. E. Udras, V. A. Drozdov and A. S. Belyi, Effect of Pseudoboehmite Peptization by Organic Acids on Texture Characteristics of Obtained Aluminum Oxides, Russ. J. Appl. Chem. 84 (2011) 9-16.

DOI: 10.1134/s1070427211010022

Google Scholar
