Stereolithographic Additive Manufacturing of Ceramic Components by Using Nanoparticle Paste Feeding

Article Preview

Abstract:

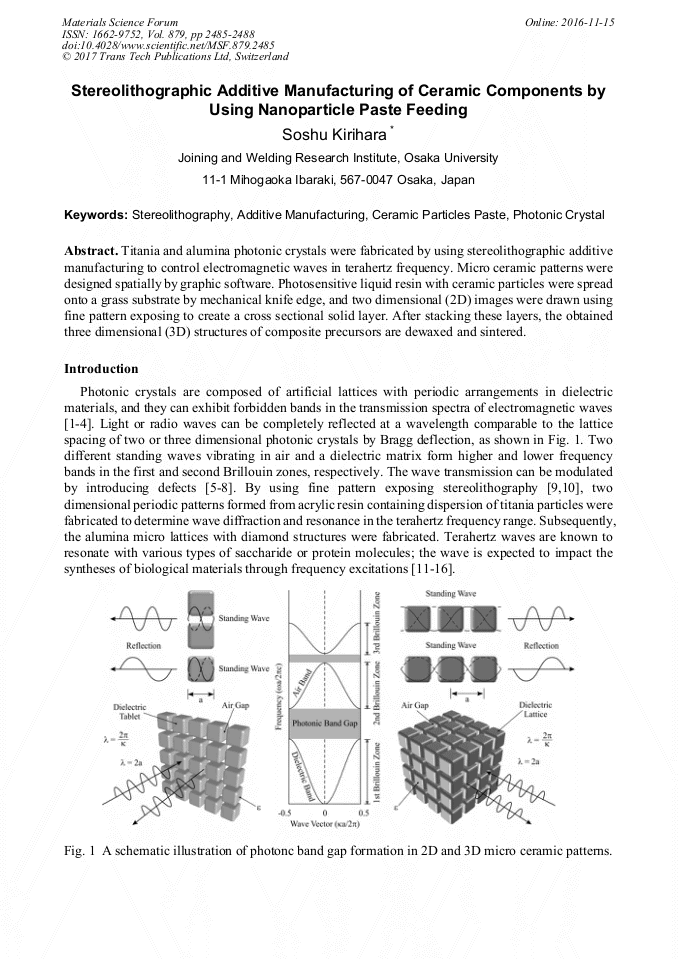

Titania and alumina photonic crystals were fabricated by using stereolithographic additive manufacturing to control electromagnetic waves in terahertz frequency. Micro ceramic patterns were designed spatially by graphic software. Photosensitive liquid resin with ceramic particles were spread onto a grass substrate by mechanical knife edge, and two dimensional (2D) images were drawn using fine pattern exposing to create a cross sectional solid layer. After stacking these layers, the obtained three dimensional (3D) structures of composite precursors are dewaxed and sintered.
