Revealing the Individual Hardening Effects of Twins, Dislocations, Grain Boundaries and Solid Solution in a Twinning-Induced Plasticity Steel

Abstract:

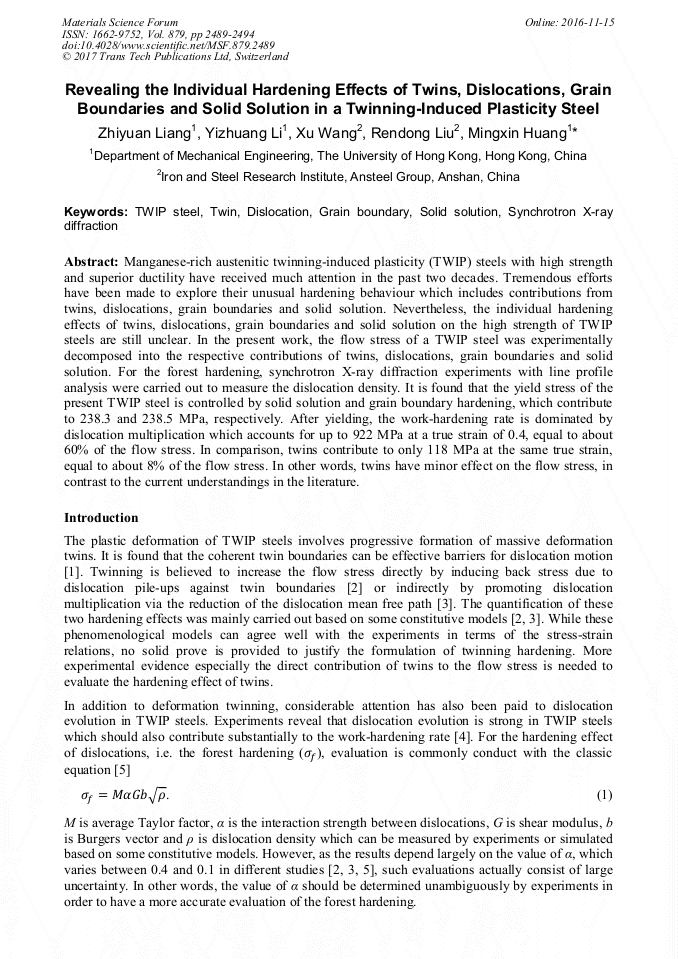

Manganese-rich austenitic twinning-induced plasticity (TWIP) steels with high strength and superior ductility have received much attention in the past two decades. Tremendous efforts have been made to explore their unusual hardening behaviour which includes contributions from twins, dislocations, grain boundaries and solid solution. Nevertheless, the individual hardening effects of twins, dislocations, grain boundaries and solid solution on the high strength of TWIP steels are still unclear. In the present work, the flow stress of a TWIP steel was experimentally decomposed into the respective contributions of twins, dislocations, grain boundaries and solid solution. For the forest hardening, synchrotron X-ray diffraction experiments with line profile analysis were carried out to measure the dislocation density. It is found that the yield stress of the present TWIP steel is controlled by solid solution and grain boundary hardening, which contribute to 238.3 and 238.5 MPa, respectively. After yielding, the work-hardening rate is dominated by dislocation multiplication which accounts for up to 922 MPa at a true strain of 0.4, equal to about 60% of the flow stress. In comparison, twins contribute to only 118 MPa at the same true strain, equal to about 8% of the flow stress. In other words, twins have minor effect on the flow stress, in contrast to the current understandings in the literature.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 2489-2494
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.2489
• Online since: November 2016
• Authors: Zhi Yuan Liang, Ying Zhuang Liu, Xu Wang, Ren Dong Liu, Ming Xin Huang*
• Keywords: Dislocation, Grain Boundary, Solid Solution, Synchrotron X-Ray Diffraction, Twin, Twinning-Induced Plasticity Steel

References

[1] L. Remy, Acta Metallurgica, 26 (1978) 443-451.

[2] O. Bouaziz, S. Allain, C. Scott, Scripta Materialia, 58 (2008) 484-487.

[3] D.R. Steinmetz, T. Jäpel, B. Wietbrock, P. Eisenlohr, I. Gutierrez-Urrutia, A. Saeed–Akbari, T. Hickel, F. Roters, D. Raabe, Acta Materialia, 61 (2013) 494-510.

DOI: 10.1016/j.actamat.2012.09.064

[4] C.P. Scott, B. Remy, J.L. Collet, A. Cael, C. Bao, F. Danoix, B. Malard, C. Curfs, Precipitation strengthening in high manganese austenitic TWIP steels, Hanser, Munich, ALLEMAGNE, (2011).

DOI: 10.3139/146.110508

[5] G. Dini, R. Ueji, A. Najafizadeh, S.M. Monir-Vaghefi, Materials Science and Engineering: A, 527 (2010) 2759-2763.

DOI: 10.1016/j.msea.2010.01.033

[6] O. Bouaziz, H. Zurob, B. Chehab, J.D. embury, S. Allain, M. Huang, Materials Science and Technology, 27 (2011) 707-709.

DOI: 10.1179/026708309x12535382371852

[7] B.C. De Cooman, O. Kwon, K.G. Chin, Materials Science and Technology, 28 (2012) 513-527.

[8] G. Ribárik, T. Ungár, J. Gubicza, Journal of applied crystallography, 34 (2001) 669-676.
