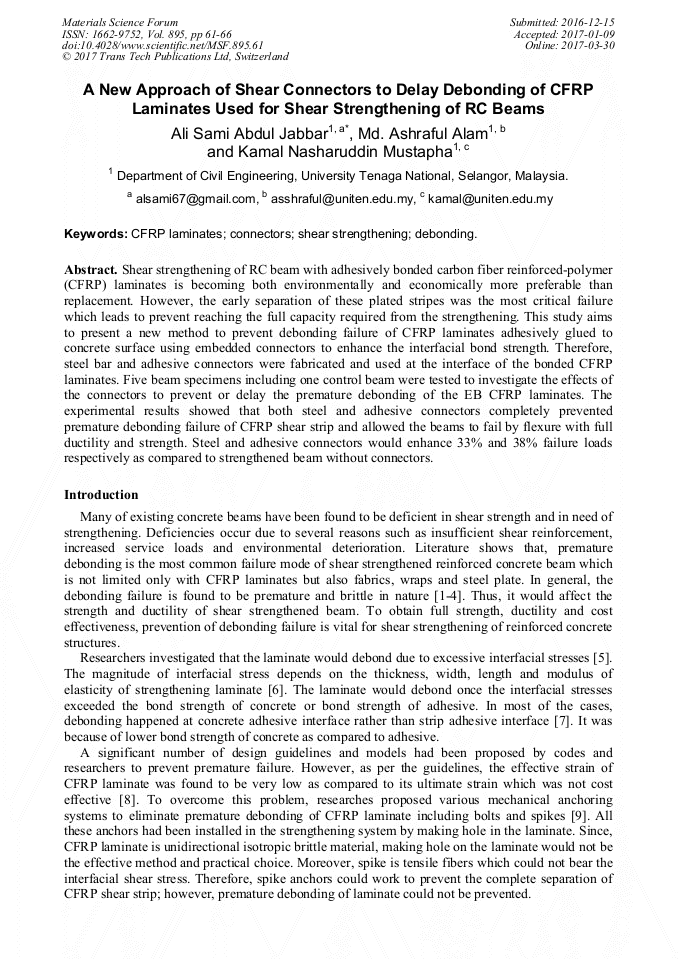

A New Approach of Shear Connectors to Delay Debonding of CFRP Laminates Used for Shear Strengthening of RС Beams

Abstract:

Shear strengthening of RC beam with adhesively bonded carbon fiber reinforced-polymer (CFRP) laminates is becoming both environmentally and economically more preferable than replacement. However, the early separation of these plated stripes was the most critical failure which leads to prevent reaching the full capacity required from the strengthening. This study aims to present a new method to prevent debonding failure of CFRP laminates adhesively glued to concrete surface using embedded connectors to enhance the interfacial bond strength. Therefore, steel bar and adhesive connectors were fabricated and used at the interface of the bonded CFRP laminates. Five beam specimens including one control beam were tested to investigate the effects of the connectors to prevent or delay the premature debonding of the EB CFRP laminates. The experimental results showed that both steel and adhesive connectors completely prevented premature debonding failure of CFRP shear strip and allowed the beams to fail by flexure with full ductility and strength. Steel and adhesive connectors would enhance 33% and 38% failure loads respectively as compared to strengthened beam without connectors.

You might also be interested in these eBooks

Material Engineering and Smart Materials

View Preview

Info:

Periodical:

Materials Science Forum (Volume 895)

Pages:

61-66

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.895.61

Citation:

Cite this paper

Online since:

March 2017

Authors:

Ali Sami Abdul Jabbar*, Md. Ashraful Alam, Kamal Nasharuddin Mustapha

Keywords:

CFRP Laminates, Connectors, Debonding, Shear Strengthening

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Z. Zhang, C.T.T. Hsu, Shear strengthening of reinforced concrete beams using carbon-fiber-reinforced polymer laminates, J. Compo. Constr. 9 (2005) 158-169.

DOI: 10.1061/(asce)1090-0268(2005)9:2(158)

Google Scholar

[2] B.B. Adhikary, H. Mutsuyoshi, M. Ashraf, Shear strengthening of reinforced concrete beams using fiber-reinforced polymer sheets with bonded anchorage, Struc. J. 101 (2004) 660-668.

DOI: 10.1142/9789812704863_0042

Google Scholar

[3] M.Z. Jumaat, M.A. Rahman, M.A. Alam, M.M. Rahman, Premature failures in laminate bonded strengthened RC beams with an emphasis on premature shear: A review, Inter. J. Phys. Sci. 6(2011) 156-168.

Google Scholar

[4] S.H. Alsayed, N.A. Siddiqui, Reliability of shear-deficient RC beams strengthened with CFRP-strips, Const. & Buil. Mater. 42 (2013) 238–247.

DOI: 10.1016/j.conbuildmat.2013.01.024

Google Scholar

[5] A. Li, J. Assih, Y. Delmas, Shear strengthening of RC beams with externally bonded CFRP sheets, J. Struc. Engi. 127(2001) 374-380.

DOI: 10.1061/(asce)0733-9445(2001)127:4(374)

Google Scholar

[6] J. Dong, Q. Wang, Z. Guan, Structural behaviour of RC beams with external flexural and flexural–shear strengthening by FRP sheets, Compo. Part B: Engi. 44 (2013) 604–612.

DOI: 10.1016/j.compositesb.2012.02.018

Google Scholar

[7] S.J.E. Dias, J.A.O. Barros, Shear strengthening of RC T-section beams with low strength concrete using NSM CFRP laminates, Cem. & Concr. Compos. 33 (2011) 334–345.

DOI: 10.1016/j.cemconcomp.2010.10.002

Google Scholar

[8] A. Mofidi, O. Chaallal, B. Benmokrane, K. Neale, Performance of end-anchorage systems for RC beams strengthened in shear with epoxy-bonded FRP, J. Compos. Constr. 16 (2011) 322-331.

DOI: 10.1061/(asce)cc.1943-5614.0000263

Google Scholar

[9] L. Koutas, T.C. Triantafillou, Use of anchors in shear strengthening of reinforced concrete T-beams with FRP, J. Compos. Constr. 17 (2012) 101-107.

DOI: 10.1061/(asce)cc.1943-5614.0000316

Google Scholar

[10] A.S. Jabbar, M.A. Alam, K.N. Mustapha, Investigation of the effects of connectors to enhance bond strength of externally bonded steel plates and CFRP laminates with concrete, Stel. & Compos. Struc. 20(2016)1275-1303.

DOI: 10.12989/scs.2016.20.6.1275

Google Scholar

[11] M.A. Alam, A.S. Jabbar, M.Z. Jumaat, K.N. Mustapha, Effective method of repairing RC beam using externally bonded steel plate, Appl. Mech. & Mater. 567 (2014) 399-404.

DOI: 10.4028/www.scientific.net/amm.567.399

Google Scholar
