Effect of Bimodal Granularity Distribution on the Properties of Silica-Based Ceramic Cores

Xiao Guang Liu; Xin Li; Ding Zhong Tang; Jian Sheng Yao; Shu Xin Niu

doi:10.4028/www.scientific.net/MSF.898.1724

Paper Titles

Dielectric Performance of (Pb_1-xSr_x)Nb₂O₆-NaNbO₃ Thin Film Materials System: Substitution Effects
p.1699

Microstructure of Silicon Nitride Fibers at Elevated Temperatures
p.1705

Combustion Synthesis: A Rapid Way for Preparing Bulk Cu₂SnSe₃ Thermoelectric Materials
p.1712

Combustion Synthesis of β-SiAlON Using 3D Ball Milling
p.1717

Effect of Bimodal Granularity Distribution on the Properties of Silica-Based Ceramic Cores
p.1724

Permeability Test Method of the Material for Graphite Pressure Vessel
p.1732

Surface Modification of Graphene Oxide with Pyrene Derivatives and their Photo-Switching Behaviors
p.1739

Transmission Loss of Membrane-Type Acoustic Metamaterial with Negative Effective Mass
p.1749

Complex Permittivity and Permeability Spectra of Nickel/Polyphenylene Sulfide Composite in Radio Frequency Range
p.1757

HomeMaterials Science ForumMaterials Science Forum Vol. 898Effect of Bimodal Granularity Distribution on the...

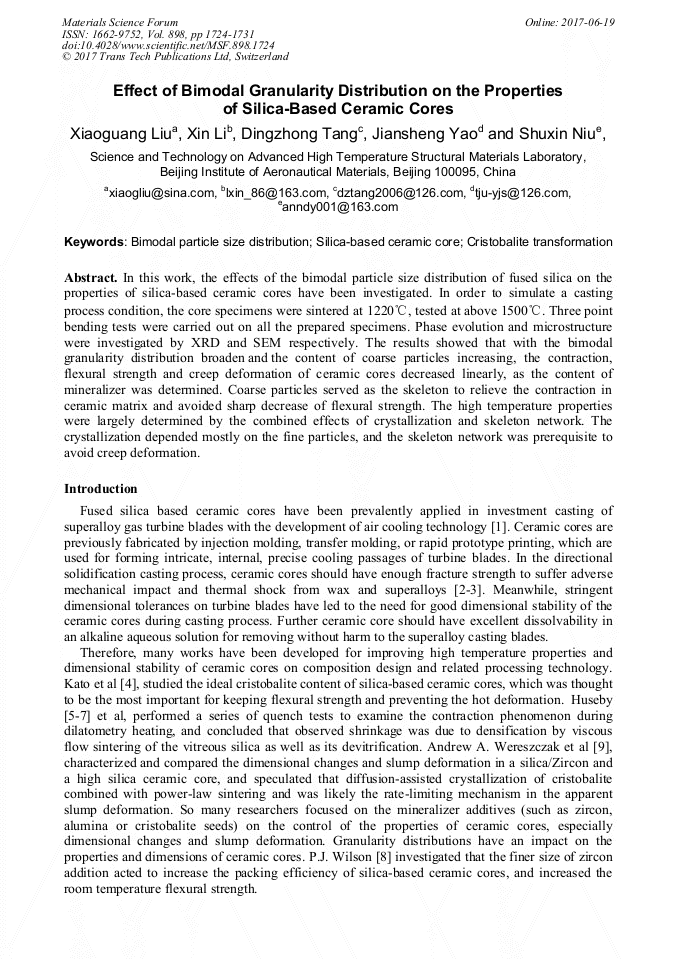

Effect of Bimodal Granularity Distribution on the Properties of Silica-Based Ceramic Cores

Abstract:

In this work, the effects of the bimodal particle size distribution of fused silica on the properties of silica-based ceramic cores have been investigated. In order to simulate a casting process condition, the core specimens were sintered at 1220°C, tested at above 1500°C. Three point bending tests were carried out on all the prepared specimens. Phase evolution and microstructure were investigated by XRD and SEM respectively. The results showed that with the bimodal granularity distribution broaden and the content of coarse particles increasing, the contraction, flexural strength and creep deformation of ceramic cores decreased linearly, as the content of mineralizer was determined. Coarse particles served as the skeleton to relieve the contraction in ceramic matrix and avoided sharp decrease of flexural strength. The high temperature properties were largely determined by the combined effects of crystallization and skeleton network. The crystallization depended mostly on the fine particles, and the skeleton network was prerequisite to avoid creep deformation.
