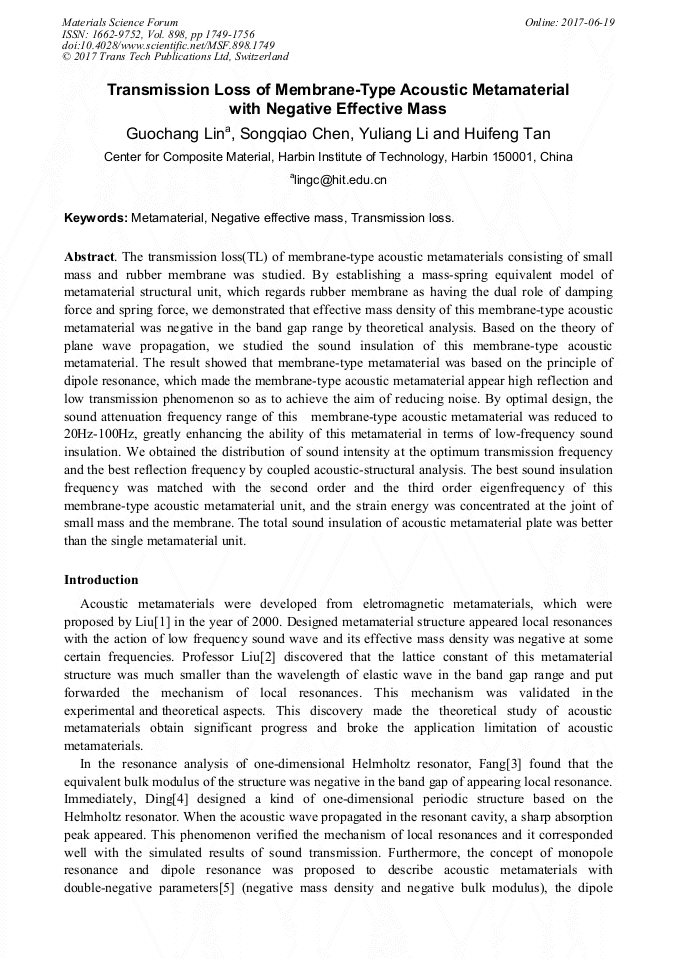

Transmission Loss of Membrane-Type Acoustic Metamaterial with Negative Effective Mass

Abstract:

The transmission loss (TL) of membrane-type acoustic metamaterials consisting of small mass and rubber membrane was studied. By establishing a mass-spring equivalent model of metamaterial structural unit, which regards rubber membrane as having the dual role of damping force and spring force, we demonstrated that effective mass density of this membrane-type acoustic metamaterial was negative in the band gap range by theoretical analysis. Based on the theory of plane wave propagation, we studied the sound insulation of this membrane-type acoustic metamaterial. The result showed that membrane-type metamaterial was based on the principle of dipole resonance, which made the membrane-type acoustic metamaterial appear high reflection and low transmission phenomenon so as to achieve the aim of reducing noise. By optimal design, the sound attenuation frequency range of this membrane-type acoustic metamaterial was reduced to 20Hz-100Hz, greatly enhancing the ability of this metamaterial in terms of low-frequency sound insulation. We obtained the distribution of sound intensity at the optimum transmission frequency and the best reflection frequency by coupled acoustic-structural analysis. The best sound insulation frequency was matched with the second order and the third order eigenfrequency of this membrane-type acoustic metamaterial unit, and the strain energy was concentrated at the joint of small mass and the membrane. The total sound insulation of acoustic metamaterial plate was better than the single metamaterial unit.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1749-1756
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1749
• Online since: June 2017
• Authors: Guo Chang Lin*, Song Qiao Chen, Yu Liang Li, Hui Feng Tan
• Keywords: Metamaterial, Negative Effective Mass, Transmission Loss

References

[1] Z. Y. Liu, X. X. Zhang, Y. W. Mao, Y. Y. Zhu, Z. Y. Yang, C. T. Chan and P. Sheng, Science. 289, 1734(2000).

[2] Z. Y. Liu, C. T. Chan and P. Sheng, Phys. Rea. B. 71, 014103 (2005).

[3] N. Fang, D. J. Xi, J. Y. Xu, M. Ambati, W. Srituravanich, C. Sun and X. Zhang, Nature Mater. 5, 452 (2006).

[4] C. L. Ding and X. P. Zhao, Acta. Phys. Sin. Ch. Ed. 58, 6351 (2009).

[5] Q. Y. Ding, Y. Z. Liu, C. Y. Qiu and J. Shi, Phys. Rev. Lett. 99, 093904 (2007).

[6] Z. Yang, J. Mei, M. Yang, N. H. Chan, and P. Sheng, Phys. Rev. Lett. 101, 204301 (2008).

[7] H.H. Huang and C.T. Sun, J. Mech. Phys. Solids. 59, 2070 (2011).

[8] J. Mei, G. C. Ma, M. Yang, Z. Y. Yang, W. J. Wen, and P. Sheng, Nat. Commun. 10, 1038 (2012).

[9] Y. G. Zhang, J. H. Wen, Y. Xiao, X. S. Wen, and J. W. Wang, Phys. Lett. A. 376, 1489 (2012).

[10] H. J. Chen, H. C. Zeng, C. L. Ding, C. R. Luo and X. P. Zhao, J. Appl. Phys. 113, 104902 (2013).

[11] M. Yang, G. C. Ma, Z. Y. Yang and P. Sheng, Phys. Rev. Lett. 110, 134301 (2013).

[12] V. Romero-Garća, A. Krynkin, L. M. Garcia-Raffi, O. Umnova and J.V. Sánchez-Pérez, J. Sound. Vib. 332, 184 (2013).

DOI: 10.1016/j.jsv.2012.08.003

[13] J. Q. Zhu, Acta. Mech. Solida. Sin. 13, 114 (1992).
