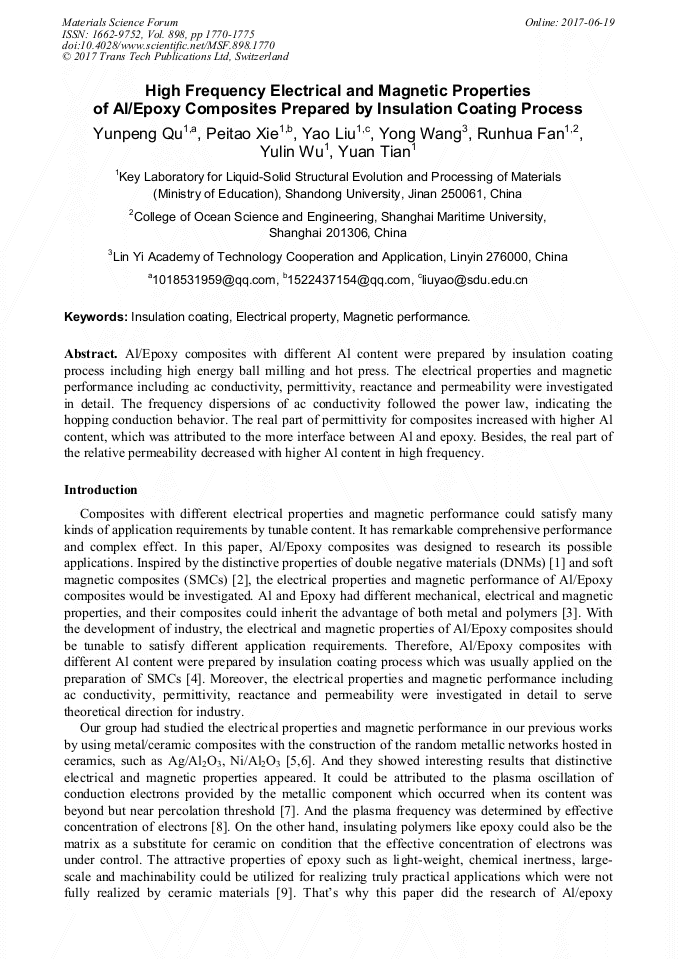

High Frequency Electrical and Magnetic Properties of Al/Epoxy Composites Prepared by Insulation Coating Process

Abstract:

Al/Epoxy composites with different Al content were prepared by insulation coating process including high energy ball milling and hot press. The electrical properties and magnetic performance including ac conductivity, permittivity, reactance and permeability were investigated in detail. The frequency dispersions of ac conductivity followed the power law, indicating the hopping conduction behavior. The real part of permittivity for composites increased with higher Al content, which was attributed to the more interface between Al and epoxy. Besides, the real part of the relative permeability decreased with higher Al content in high frequency.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 1770-1775
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.1770
• Online since: June 2017
• Authors: Yun Peng Qu*, Pei Tao Xie, Yao Liu, Yong Wang, Run Hua Fan, Yu Lin Wu, Yuan Tian
• Keywords: Electrical Properties, Insulation Coating, Magnetic Performance

References

[1] Engheta N. Circuits with light at nanoscales: optical nanocircuits inspired by metamaterials [J]. Science, 2007, 317(5845): 1698-1702.

DOI: 10.1126/science.1133268

[2] Maeda T, Toyoda H, Igarashi N, et al. Development of super low iron-loss P/M soft magnetic material[J]. SEI TECHNICAL REVIEW-ENGLISH EDITION-, 2005, 60: 3.

[3] Shi Z, Fan R, Zhang Z, et al. Random composites of nickel networks supported by porous alumina toward double negative materials[J]. Advanced Materials, 2012, 24(17): 2349-2352.

DOI: 10.1002/adma.201200157

[4] Tajima S, Hattori T, Kondoh M, et al. Properties of high-density magnetic composite fabricated from iron powder coated with a new type phosphate insulator[J]. IEEE transactions on magnetics, 2005, 41(10): 3280-3282.

DOI: 10.1109/tmag.2005.854722

[5] Hou Q, Yan K, Fan R, et al. Negative permittivity in Fe–Si–Ni/epoxy magnetic composite materials at high-frequency [J]. Materials Chemistry and Physics, 2016, 170: 113-117.

DOI: 10.1016/j.matchemphys.2015.12.027

[6] Shi Z C, Fan R H, Zhang Z D, et al. Experimental and theoretical investigation on the high frequency dielectric properties of Ag/Al2O3 composites [J]. Applied Physics Letters, 2011, 99(3): 032903.

DOI: 10.1063/1.3608156

[7] Sun K, Fan R H, Zhang Z D, et al. The tunable negative permittivity and negative permeability of percolative Fe/Al2O3 composites in radio frequency range [J]. Applied Physics Letters, 2015, 106(17): 172902.

DOI: 10.1063/1.4918998

[8] Shi Z, Fan R, Yan K, et al. Preparation of iron networks hosted in porous alumina with tunable negative permittivity and permeability [J]. Advanced Functional Materials, 2013, 23(33): 4123-4132.

DOI: 10.1002/adfm.201202895

[9] Hou Q, Sun K, Xie P, et al. Ultrahigh dielectric loss of epsilon-negative copper granular composites[J]. Materials Letters, 2016, 169: 86-89.

DOI: 10.1016/j.matlet.2016.01.092

[10] Wu S, Sun A, Lu Z, et al. Magnetic properties of iron-based soft magnetic composites with SiO2 coating obtained by reverse microemulsion method [J]. Journal of Magnetism and Magnetic Materials, 2015, 381: 451-456.

DOI: 10.1016/j.jmmm.2015.01.030

[11] Cheng C, Yan K, Fan R, et al. Negative permittivity behavior in the carbon/silicon nitride composites prepared by impregnation-carbonization approach [J]. Carbon, 2016, 96: 678-684.

DOI: 10.1016/j.carbon.2015.10.003

[12] Hou Q, Zhang Z, Chen M, et al. Experimental realization of tunable negative permittivity in percolative Fe78Si9B13/epoxy composites [J]. RSC ADVANCES, 2015, 5(13): 9472-9475.

DOI: 10.1039/c4ra15274c

[13] Wang X, Shi Z, Chen M, et al. Tunable electromagnetic properties in Co/Al2O3 cermets prepared by wet chemical method [J]. Journal of the American Ceramic Society, 2014, 97(10): 3223-3229.

DOI: 10.1111/jace.13113

[14] Wang X, Chen M, Sun K, et al. Microstructure and dielectric properties of ion-doped La0. 7Sr0. 3MnO3 lossy ceramics at radio frequencies [J]. RSC ADVANCES, 2014, 4(49): 25804-25808.

DOI: 10.1039/c4ra03364g

[15] Prasad S K, Kumar M V, Shilpa T, et al. Enhancement of electrical conductivity, dielectric anisotropy and director relaxation frequency in composites of gold nanoparticle and a weakly polar nematic liquid crystal [J]. RSC Advances, 2014, 4(9): 4453-4462.

DOI: 10.1039/c3ra45761c

[16] Sun K, Li A, Cui X, et al. Sintering technology research of Fe3Al/Al2O3 ceramic composites [J]. Journal of Materials Processing Technology, 2001, 113(1): 482-485.

DOI: 10.1016/s0924-0136(01)00608-2
