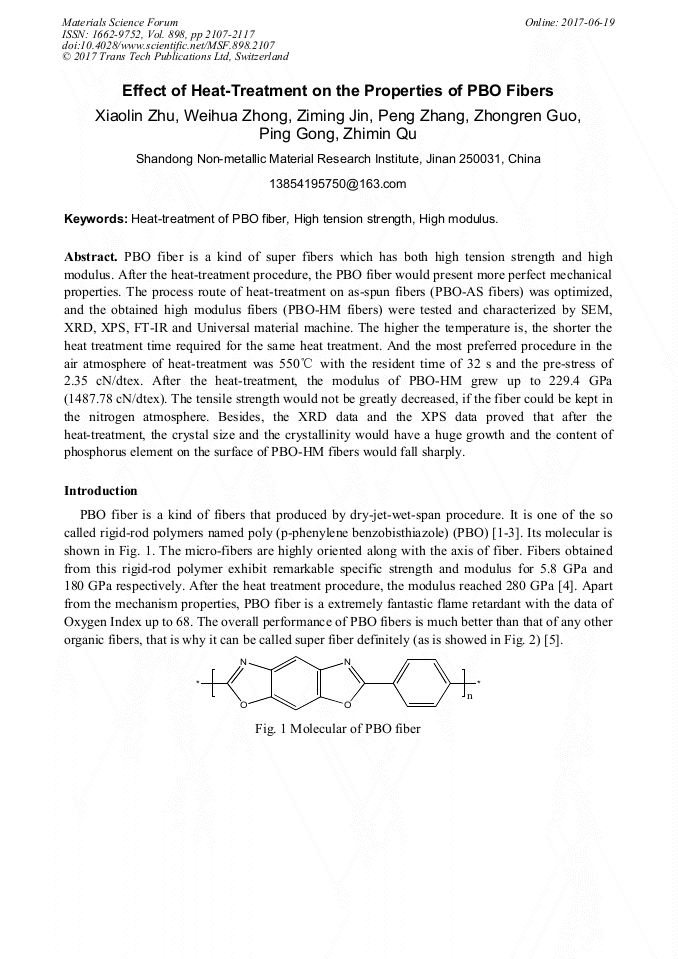

Effect of Heat-Treatment on the Properties of PBO Fibers

Abstract:

PBO fiber is a kind of super fibers which has both high tension strength and high modulus. After the heat-treatment procedure, the PBO fiber would present more perfect mechanical properties. The process route of heat-treatment on as-spun fibers (PBO-AS fibers) was optimized, and the obtained high modulus fibers (PBO-HM fibers) were tested and characterized by SEM, XRD, XPS, FT-IR and Universal material machine. The higher the temperature is, the shorter the heat treatment time required for the same heat treatment. And the most preferred procedure in the air atmosphere of heat-treatment was 550°C with the resident time of 32 s and the pre-stress of 2.35 cN/dtex. After the heat-treatment, the modulus of PBO-HM grew up to 229.4 GPa (1487.78 cN/dtex). The tensile strength would not be greatly decreased, if the fiber could be kept in the nitrogen atmosphere. Besides, the XRD data and the XPS data proved that after the heat-treatment, the crystal size and the crystallinity would have a huge growth and the content of phosphorus element on the surface of PBO-HM fibers would fall sharply.

• Periodical: Materials Science Forum (Volume 898)
• Pages: 2107-2117
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.898.2107
• Online since: June 2017
• Authors: Xiao Lin Zhu*, Wei Hua Zhong, Zi Ming Jin, Peng Zhang, Zhong Ren Guo, Ping Gong, Zhi Min Qu
• Keywords: Heat-Treatment of PBO Fiber, High Modulus, High Tension Strength

References

[1] Orndoff E. Development and evaluation of polybenzoxazole fibrous structures[M]. National Aeronautics and Space Administration, (1995).

[2] Koshiyo Horikawa, Yukihiro Nomura, Yutaka Kitagawa, etc. Influence of strain rate on tensile strength of high modulus type PBO fiber [J]. Japan Society of Mechanical Engineers paper A, 2012, 78 (788): 421-431.

DOI: 10.1299/kikaia.78.421

[3] Yabuki Kazuyuki, Kato Katsuhiko Polyparaphenylene Bezobisoxazole (PBO) fiber Ultra High Performance Fiber [J]. Journal of the Society of Fiber Science and Technology, 1996, 52 (3): 143-147.

[4] Liu D, Chen M, et al. Surface modification of high performance PBO fibers using radio frequency argon plasma[J]. Surface and Coatings Technology, 2012, 206(16): 3534-3541.

DOI: 10.1016/j.surfcoat.2012.02.033

[5] Kitagawa T, Yabuki K, Wright A C, et al. An investigation into the relationship between processing, structure and properties for high-modulus PBO fibres: part 3: analysis of fibre microstructure using transmission electron microscopy[J]. Journal of Materials Science, 2014, 49(18): 6467-6474.

DOI: 10.1007/s10853-014-8377-y

[6] Vázquez-Santos M B, Martínez-Alonso A, Tascón J M D, et al. Nanostructure evolution in heat-treated porous carbons derived from PBO polymer[J]. Journal of Alloys and Compounds, 2012, 536: 464-468.

DOI: 10.1016/j.jallcom.2011.10.072

[7] Handbook of technical textiles[M]. Elsevier, (2000).

[8] Mills M E, Teramoto Y, Faley T L, et al. Method for stable rapid spinning of a polybenzoxazole or polybenzothiazole fiber: U.S. Patent 5, 385, 702[P]. 1995-1-31.

[9] Aleksadr W E, Chao C C, Ferraz T L. Improved method after textile finishing for PBO fiber: CN, CN1087138A[P]. (1999).

[10] Japan TOYOBO Company PBO FIBER ZYLON Products [EB/OL]. http: /www. toyobo. co. jp/e/seihin/kc/pbo/technical. pdf.

[11] Kitagawa T, Kiriyama K, Shimizu Y. A Novel Random Preferential Orientation of the Crystal A-axis Along the Radial Direction Confirmed on the Poly-p-phenylenebenzobisoxazole (PBO) Fiber Made with a Water[J]. Journal of the Society of Fiber Science and Technology, 2015, 71(7): 224-231.

DOI: 10.2115/fiber.71.224

[12] K. Tamargo-Martı́nez, S. Villar-Rodil, J.I. Paredes, et al. Thermal decomposition of poly(p-phenylene benzobisoxazole) fibres: monitoring the chemical and nanostructural changes by Raman spectroscopy and scanning probe microscopy[J]. Polymer Degradation & stability, 2004, 86(2): 263–268.

DOI: 10.1016/j.polymdegradstab.2004.05.004

[13] Cohen Y, Gartstein E, Arndt K F, et al. The effect of heat treatment on the microfibrillar network of poly(p-phenylene benzobisthiazole)[J]. Societyofplasticsengineers Inc, 1996, 36(10): 1355–1359.

DOI: 10.1002/pen.10530

[14] Kitagawa T, Sugihara H, Tsutsumi M. The Effect of Non-Aqueous Coagulation in the Structure of Poly- p -phenylenebenzobisoxazole (PBO) Fibers[J]. Fiber, 2015, 71(2): 105-111.

DOI: 10.2115/fiber.71.105

[15] Liu Xiaoyun, et al. PBO fiber microstructure development and mechanical properties of structural changes in the heat treatment process[C]/ 2007 National Polymer academic report abstracts (Volume One). (2007).
