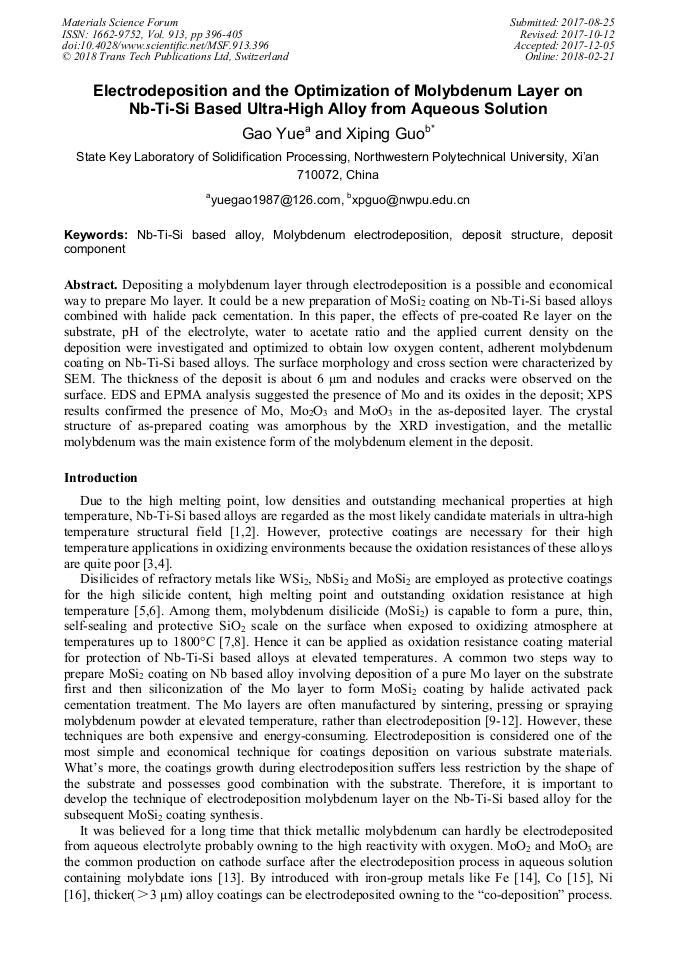

Electrodeposition and the Optimization of Molybdenum Layer on Nb-Ti-Si Based Ultra-High Alloys from Aqueous Solution

Abstract:

Depositing a molybdenum layer through electrodeposition is a possible and economical way to prepare Mo layer. It could be a new preparation of MoSi₂ coating on Nb-Ti-Si based alloys combined with halide pack cementation. In this paper, the effects of pre-coated Re layer on the substrate, pH of the electrolyte, water to acetate ratio and the applied current density on the deposition were investigated and optimized to obtain low oxygen content, adherent molybdenum coating on Nb-Ti-Si based alloys. The surface morphology and cross section were characterized by SEM. The thickness of the deposit is about 6 μm and nodules and cracks were observed on the surface. EDS and EPMA analysis suggested the presence of Mo and its oxides in the deposit; XPS results confirmed the presence of Mo, Mo₂O₃ and MoO₃ in the as-deposited layer. The crystal structure of as-prepared coating was amorphous by the XRD investigation, and the metallic molybdenum was the main existence form of the molybdenum element in the deposit.

• Periodical: Materials Science Forum (Volume 913)
• Pages: 396-405
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.913.396
• Online since: February 2018
• Authors: Gao Yue, Xi Ping Guo*
• Keywords: Deposit Component, Deposit Structure, Molybdenum Electrodeposition, Nb-Ti-Si Based Alloy

References

[1] B.P. Bewlay, M.R. Jackson, J.C. Zhao, P.R. Subramanian, A review of very-hightemperature Nb-silicide-based composites, Metall. Mater. Trans. A. 34 (2003) (2043).

DOI: 10.1007/s11661-003-0269-8

[2] X.P. Guo, L.M. Gao, P. Guan, K. Kusabiraki, H.Z. Fu, Microstructure and mechanical properties of an advanced niobium based ultrahigh temperature alloy, Mater. Sci. Forum. 539-543 (2007) 3690.

DOI: 10.4028/www.scientific.net/msf.539-543.3690

[3] B. Voglewede, V.R. Rangel, S.K. Varma, The effects of uncommon silicides on the oxidation behavior of alloys from the Nb-Cr-Si system, Corros. Sci. 61 (2012) 123-133.

DOI: 10.1016/j.corsci.2012.04.029

[4] W Wang, B.Y. Zhang, C.G. Zhou. Formation and oxidation resistance of Hf and Al modified silicide coating on Nb-Si based alloy, Corros. Sci. 86 (2014) 304-309.

DOI: 10.1016/j.corsci.2014.06.011

[5] D.Z. Yao, R. Cai, C.G. Zhou, J.B. Sha, H.R. Jiang. Experimental study and modeling of high temperature oxidation of Nb-base in situ composites, Corros. Sci. 51 (2009) 364-370.

DOI: 10.1016/j.corsci.2008.11.004

[6] R. Mitra. Mechanical behavior and oxidation resistance of structural silicides, Int Mater Rev. 51 (2006) 13-64.

[7] M.Z. Alam, B. Venkataraman, B. Sarma, D.K. Das. MoSi2 coating on Mo substrate for short-term oxidation protection in air, J. Alloy. Compd. 487 (2009) 335-340.

DOI: 10.1016/j.jallcom.2009.07.141

[8] Y.Q. Liu, G. Shao, P. Tsakiropoulos. On the Oxidation Behaviour of MoSi2, Intermetallics. 9 (2001) 125-136.

DOI: 10.1016/s0966-9795(00)00114-x

[9] S. Majumdar, A. Kumar, D. Schliephake, H. -J. Christ, X. Jiang, M. Heilmaier. Mate. Sci. Eng., A. 573 (2013) 257-263.

[10] H.S. Huang, K.S. Hwang, Deoxidation of molybdenum during vacuum sintering, Metall. Mater. Tran. A. 33 (2002) 657-664.

DOI: 10.1007/s11661-002-0127-0

[11] J. Y. Wu, W. Wang, C. G Zhou. Microstructure and oxidation resistance of Mo-Si-B coating on Nb based in situ composites, Corros. Sci. 87 (2014) 421-426.

DOI: 10.1016/j.corsci.2014.07.006

[12] A. Vaidya, T. Streibl, L. Li, S. Sampath, O. Kovarik, R. Greenlaw, An integrated study of thermal spray process-structure-property correlations: A case study for plasma sprayed molybdenum coating, Mater. Sci. Eng., A. 403 (2005) 191-204.

DOI: 10.1016/j.msea.2005.04.056

[13] E. Go´mez, E. Pellicer, E. Valle´s. Intermediate molybdenum oxides involved in binary and ternary induced electrodeposition, J. Electroanal. Chem. 580 (2005) 238-244.

DOI: 10.1016/j.jelechem.2005.03.031

[14] L.S. Sanches, C.B. Marino, L.H. Mascaro. Investigation of the codeposition of Fe and Mo from sulphate-citrate acid solutions, J. Alloys and Compd. 439 (2007) 342-345.

DOI: 10.1016/j.jallcom.2006.08.231

[15] E. Go´mez, E. Pellicer, E. Valle´s. Developing plating baths for the production of cobalt–molybdenum films, Surf. Coat. Technol. 197 (2005) 238-246.

DOI: 10.1016/j.surfcoat.2004.09.017

[16] Paulo N. S. Casciano, Ramon L. Benevides, Pedro de Lima-Neto, Adriana N. Int. J. Electrochem. Sci., 9 (2014) 4413-4428.

[17] M.J. Ksycki, L.F. Yntema. The Electrodeposition of Molybdenum from Aqueous Solutions, Soc. 96 (1949) 48-56.

DOI: 10.1149/1.2776770

[18] T.J. Morley, L. Penner, P. Schaffer, T.J. Ruth, F. Bénard, E. Asselin. Electrochem. Commun. 15 (2012) 78-80.

[19] R. Syed, S.K. Ghosh, P.U. Sastry, G. Sharma, R.C. Hubli, J.K. Chakravartty. Surf. Coat. Technol. 261 (2015) 15-20.

[20] F. Nemla, D. Cherrad. Appl. Surf. Sci. 375 (2016)1-8.

[21] E. Sugiarti, Y. Wang, N. Hashimoto, S. Ohnuki, T. Narita. Phase Characterization of Re-Based Diffusion Barrier Layer on Nb Substrate, Mater. Trans. 52 (2011) 319-323.

DOI: 10.2320/matertrans.mb201022

[22] Y. Harada, Y. Funato, M. Morinaga, A. Ito, Y. Sugita. Solid Solubilities of Ternary Elements and Their Effects on Microstructure of MoSi2, J. Jpn. I. Met. 58 (1994) 1239-1247.

[23] K. Saito, S. Hayashi, T. Narita, I. Iwanaga, R. Tanaka. Development of an oxidation resistant coating on Nb-based ultra-high temperature alloy, Mater. Sci. Forum. 522-523 (2006) 309-316.

DOI: 10.4028/www.scientific.net/msf.522-523.309

[24] H.I. Karunadasa, C.J. Chang, J.R. Long, A molecular molybdenum-oxo catalyst for generating hydrogen from water, Nature. 464 (2010) 1329-1333.

DOI: 10.1038/nature08969
