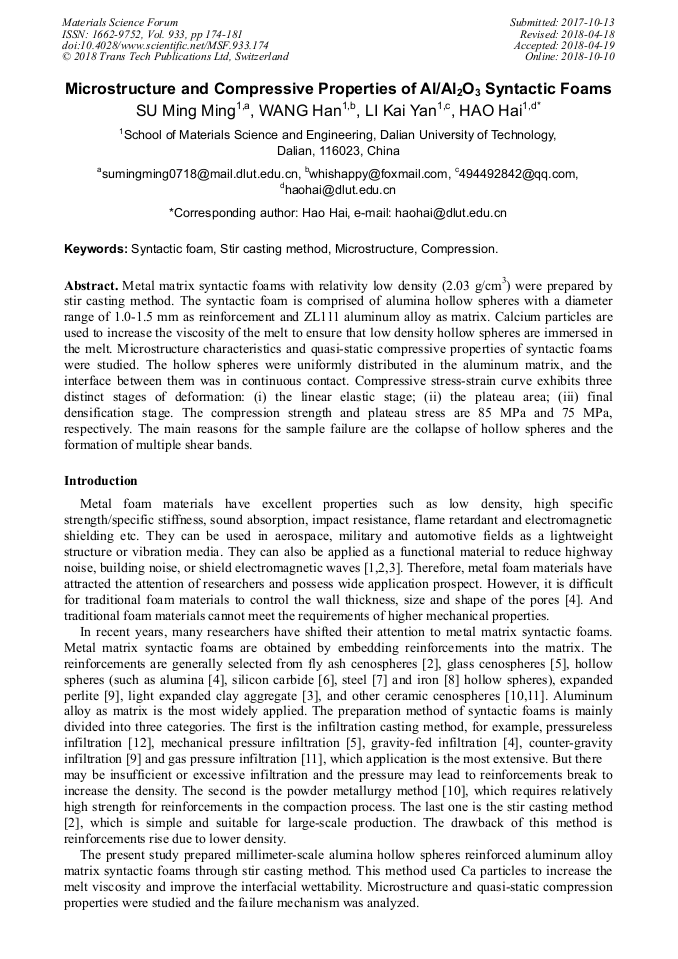

Microstructure and Compressive Properties of Al/Al₂O₃ Syntactic Foams

Abstract:

Metal matrix syntactic foams with relativity low density (2.03 g/cm³) were prepared by stir casting method. The syntactic foam is comprised of alumina hollow spheres with a diameter range of 1.0-1.5 mm as reinforcement and ZL111 aluminum alloy as matrix. Calcium particles are used to increase the viscosity of the melt to ensure that low density hollow spheres are immersed in the melt. Microstructure characteristics and quasi-static compressive properties of syntactic foams were studied. The hollow spheres were uniformly distributed in the aluminum matrix, and the interface between them was in continuous contact. Compressive stress-strain curve exhibits three distinct stages of deformation: (i) the linear elastic stage; (ii) the plateau area; (iii) final densification stage. The compression strength and plateau stress are 85 MPa and 75 MPa, respectively. The main reasons for the sample failure are the collapse of hollow spheres and the formation of multiple shear bands.

• Periodical: Materials Science Forum (Volume 933)
• Pages: 174-181
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.933.174
• Online since: October 2018
• Authors: Ming Ming Su, Han Wang, Kai Yan Li, Hai Hao*
• Keywords: Compression, Microstructure, Stir Casting Method, Syntactic Foam

References

[1] J. Banhart, Manufacture, characterisation and application of cellular metals and metal foams, Prog. Mater. Sci. 46.6 (2001) 559-632.

DOI: 10.1016/s0079-6425(00)00002-5

[2] A. Daoud, Synthesis and characterization of novel ZnAl22 syntactic foam composites via casting, Mater. Sci. Eng. A. 488.1 (2008) 281-295.

DOI: 10.1016/j.msea.2007.11.020

[3] S.B. Bonabi, J.K. Khabushan, R. Kahani, A.H. Raouf, Fabrication of metallic composite foam using ceramic porous spheres Light Expanded Clay Aggregate, via casting process, Mater. Des. 64 (2014) 310-315.

DOI: 10.1016/j.matdes.2014.07.061

[4] G. Castro, S.R. Nutt, X. Wenchen, Compression and low-velocity impact behavior of aluminum syntactic foam, Mater. Sci. Eng. A. 578 (2013) 222-229.

DOI: 10.1016/j.msea.2013.04.081

[5] Y. Lin, Q. Zhang, X. Ma, G. Wu, Mechanical behavior of pure Al and Al–Mg syntactic foam composites containing glass cenospheres, Composites Part A. 87 (2016) 194-202.

DOI: 10.1016/j.compositesa.2016.05.001

[6] D.D. Luong, O.M. Strbik, V.H. Hammond, N. Gupta, K. Cho, Development of high performance lightweight aluminum alloy/SiC hollow sphere syntactic foams and compressive characterization at quasi-static and high strain rates, J. Alloys Compd. 550 (2013).

DOI: 10.1016/j.jallcom.2012.10.171

[7] B.P. Neville, A. Rabiei, Composite metal foams processed through powder metallurgy, Mater. Des. 29.2 (2008) 388-396.

DOI: 10.1016/j.matdes.2007.01.026

[8] A. Szlancsik, B. Katona, K. Bobor, K. Májlinger, I.N. Orbulov, Compressive behaviour of aluminium matrix syntactic foams reinforced by iron hollow spheres, Mater. Des. 83 (2015) 230-237.

DOI: 10.1016/j.matdes.2015.06.011

[9] M. Taherishargh, I.V. Belova, G.E. Murch, T. Fiedler, Low-density expanded perlite–aluminium syntactic foam, Mater. Sci. Eng. A. 604 (2014) 127-134.

DOI: 10.1016/j.msea.2014.03.003

[10] C.A. Vogiatzis, A. Tsouknidas, D.T. Kountouras, S. Skolianos, Aluminum–ceramic cenospheres syntactic foams produced by powder metallurgy route, Mater. Des. 85 (2015) 444-454.

DOI: 10.1016/j.matdes.2015.06.154

[11] K. Myers, B. Katona, P. Cortes, I.N. Orbulov, Quasi-static and high strain rate response of aluminum matrix syntactic foams under compression, Composites Part A. 79 (2015) 82-91.

DOI: 10.1016/j.compositesa.2015.09.018

[12] M.Y. Omar, C. Xiang, N. Gupta, O.M. Strbik, K. Cho, Syntactic foam core metal matrix sandwich composite: compressive properties and strain rate effects, Mater. Sci. Eng. A. 643 (2015) 156-168.

DOI: 10.1016/j.msea.2015.07.033

[13] F. Pan, D. Zhang, Aluminum alloy and application, first ed., Chemical Industry Press, Beijing, (2006).

[14] J.A. Santa Maria, B.F. Schultz, J.B. Ferguson, P.K. Rohatgi, Al–Al2O3 syntactic foams–Part I: Effect of matrix strength and hollow sphere size on the quasi-static properties of Al-A206/Al2O3 syntactic foams, Mater. Sci. Eng. A. 582 (2013).

DOI: 10.1016/j.msea.2013.05.081

[15] L. Ma, Z. Song, Cellular structure control of aluminium foams during foaming process of aluminium melt, Scripta Mater. 39.11 (1998) 1523-1528.

DOI: 10.1016/s1359-6462(98)00361-3

[16] L. Licitra, D.D. Luong, O.M. Strbik, N. Gupta, Dynamic properties of alumina hollow particle filled aluminum alloy A356 matrix syntactic foams, Mater. Des. 66 (2015) 504-515.

DOI: 10.1016/j.matdes.2014.03.041
