Melting and Solidification Behavior of High-Strength Aluminum Alloy during Selective Laser Melting

Abstract:

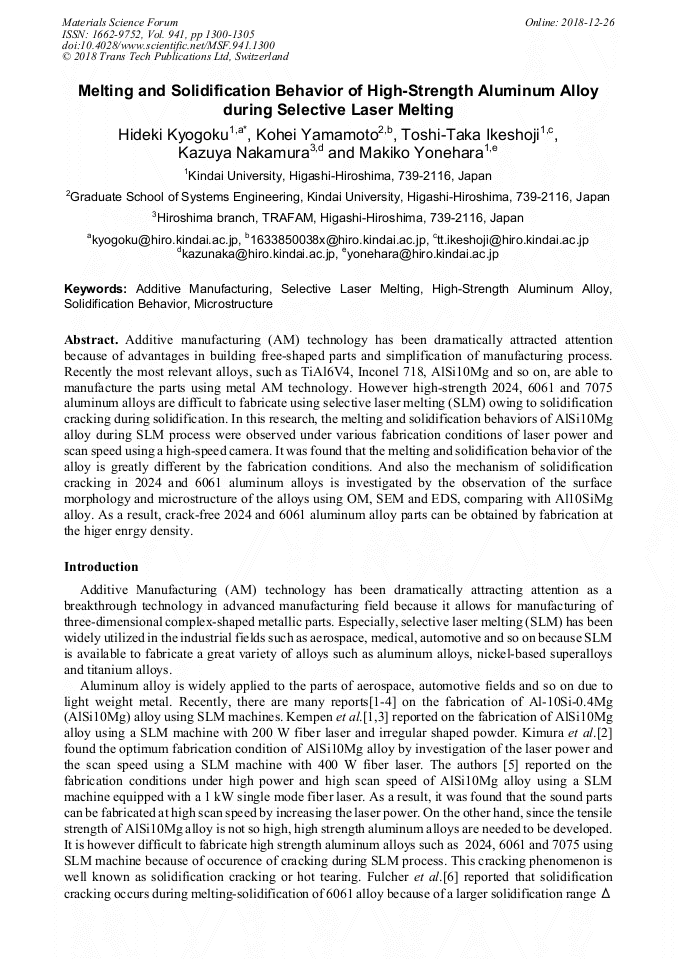

Additive manufacturing (AM) technology has been dramatically attracted attention because of advantages in building free-shaped parts and simplification of manufacturing process. Recently the most relevant alloys, such as TiAl6V4, Inconel 718, AlSi10Mg and so on, are able to manufacture the parts using metal AM technology. However high-strength 2024, 6061 and 7075 aluminum alloys are difficult to fabricate using selective laser melting (SLM) owing to solidification cracking during solidification. In this research, the melting and solidification behaviors of AlSi10Mg alloy during SLM process were observed under various fabrication conditions of laser power and scan speed using a high-speed camera. It was found that the melting and solidification behavior of the alloy is greatly different by the fabrication conditions. And also the mechanism of solidification cracking in 2024 and 6061 aluminum alloys is investigated by the observation of the surface morphology and microstructure of the alloys using OM, SEM and EDS, comparing with Al10SiMg alloy. As a result, crack-free 2024 and 6061 aluminum alloy parts can be obtained by fabrication at the higer enrgy density.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 1300-1305
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.1300
• Online since: December 2018
• Authors: Hideki Kyogoku*, Kohei Yamamoto, Toshi Taka Ikeshoji, Kazuya Nakamura, Makiko Yonehara
• Keywords: Additive Manufacturing (AM), High-Strength Aluminum Alloy, Microstructure, Selective Laser Melting, Solidification Behavior

References

[1] K. Kempen, L. Thijs, J. Van Humbeeck, J.-P. Kruth, Mechanical properties of AlSi10Mg produced by selective laser melting, Physics Procedia, 39(2012)439-446.

DOI: 10.1016/j.phpro.2012.10.059

[2] T. Kimura, T. Nakamoto, Microstructures and mechanical properties of Al-10%Si-0.4%Mg fabricated by selective laser melting, J. Jpn. Soc. Powder Powder Metallurgy, 61(2014)531-537.

DOI: 10.2497/jjspm.61.531

[3] K. Kempen, L. Thijs, J. Van-Humbeeck, J.-P. Kruth, Processing AlSi10Mg by selective laser melting: parameter optimization and material characterization, Materials Science and Technology, 31(2015)917-923.

DOI: 10.1179/1743284714y.0000000702

[4] N. Read, W. Wang, K. Essa, M.M. Attallah, Selective laser melting of AlSi10Mg alloy: Process optimization and mechanical properties development, Materials and Design, 65(2015)417-424.

DOI: 10.1016/j.matdes.2014.09.044

[5] M. Araki, S. Kusakawa, K. Nakamura, M. Yonehara, T.-T. Ikeshoji, H. Kyogoku, Parameter optimization on the fabrication of Al-10Si-0.4Mg Alloy using selective laser melting process, submitted to J. Jpn. Soc. Powder Powder Metallurgy.

DOI: 10.2497/jjspm.65.383

[6] B.A. Fulcher, D.K. Leigh, T.J. Watt, Comparison of AlSi10Mg and AL6061 processed through DMLS, Proceedings of SFF symposium 2014, (2014)404-419.

[7] S.Z. Uddin, D. Espalin, J. Mireles, P. Morton, C. Terrazas, S. Collins, L.E. Murr, R. Wicker, Laser powder bed fusion fabrication and characterization of crack-free aluminum alloy 6061 using in-process powder bed induction heating, Proceedings of SFF symposium 2017, (2017)214-227.

DOI: 10.1016/j.addma.2018.05.047

[8] H. Zhang, H. Zhu, T. Qi, Z. hu, X. Zeng: Selective laser melting of high strength Al-Cu-Mg alloys; processing, microstructure and mechanical properties, Materials Science & Engineering A, 656(2016)47-54.

DOI: 10.1016/j.msea.2015.12.101

[9] S.A. Khairallah, A.T. Anderson, A. Rubenchik, W.E. King, Laser power-bed fusion additive manufacturing: Physics of complex melt flow and formation mechanisms of pores, spatter, and denudation zones Acta Materialia, 108(2016)36-45.

DOI: 10.1016/j.actamat.2016.02.014

[10] C. Qiu, C. Panwisawas, M. Ward, H.C. Basoalto, J.W. Brooks, M.M. Attallah, On the role of melt flow into the surface structure and porosity development during selective laser melting, Acta Materialia 96(2015)72-79.

DOI: 10.1016/j.actamat.2015.06.004

[11] S. Kou, A criterion for cracking during solidification, Acta Materialia, 88(2015)366-374.

DOI: 10.1016/j.actamat.2015.01.034
