Effect of Tempering on Hardness of Q&T Steel Plate

Abstract:

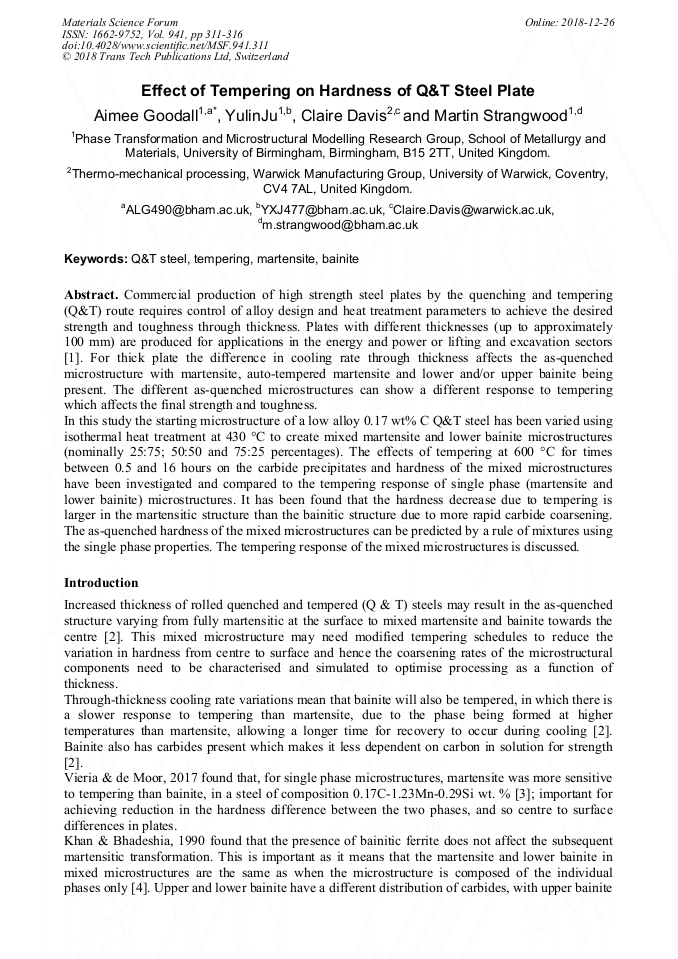

Commercial production of high strength steel plates by the quenching and tempering (Q&T) route requires control of alloy design and heat treatment parameters to achieve the desired strength and toughness through thickness. Plates with different thicknesses (up to approximately 100 mm) are produced for applications in the energy and power or lifting and excavation sectors. For thick plate the difference in cooling rate through thickness affects the as-quenched microstructure with martensite, auto-tempered martensite and lower and/or upper bainite being present. The different as-quenched microstructures can show a different response to tempering which affects the final strength and toughness.In this study the starting microstructure of a low alloy 0.17 wt% C Q&T steel has been varied using isothermal heat treatment at 430 °C to create mixed martensite and lower bainite microstructures (nominally 25:75; 50:50 and 75:25 percentages). The effects of tempering at 600 °C for times between 0.5 and 16 hours on the carbide precipitates and hardness of the mixed microstructures have been investigated and compared to the tempering response of single phase (martensite and lower bainite) microstructures. It has been found that the hardness decrease due to tempering is larger in the martensitic structure than the bainitic structure due to more rapid carbide coarsening. The as-quenched hardness of the mixed microstructures can be predicted by a rule of mixtures using the single phase properties. The tempering response of the mixed microstructures is discussed.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 311-316
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.311
• Online since: December 2018
• Authors: Aimee Goodall*, Yu Lin Ju, Claire Davis, Martin Strangwood
• Keywords: Bainite, Martensite, Q&T Steels, Tempering

References

[1] Davis, J.R. and A.I.H. Committee, Carbon and Alloy Steels. 1996: ASM International.

[2] Bhadeshia, H.K.D.H., Bainite in Steels: Transformations, Microstructure and Properties. 2001: IOM Communications, London.

[3] Vieira, I.D.M. and E. de Moor, Tempering response of bainitic and martensitic microstrctures. in 3rd Pan American Materials Congress. (2017).

DOI: 10.1007/978-3-319-52132-9_78

[4] Khan, S.A. and H.K.D.H. Bhadeshia, Kinetics of Martensitic transformation in partially bainitic 300M steel. Materials Science and Engineering: A, 1990. 129(2): pp.257-272.

DOI: 10.1016/0921-5093(90)90273-6

[5] Bhadeshia, H.K.D.H. and D.V. Edmonds, The bainite transformation in a silicon steel. Metallurgical Transactions A, 1979. 10(7): pp.895-907.

DOI: 10.1007/bf02658309

[6] Alibeyki, M., H. Mirzadeh, M Najafi and A Kalhor, Modification of Rule of Mixtures for Estimation of the Mechanical Properties of Dual-Phase Steels. Journal of Materials Engineering and Performance, 2017. 26(6): pp.2683-2688.

DOI: 10.1007/s11665-017-2687-6

[7] Young, C.H. and H.K.D.H. Bhadeshia, Strength of mixtures of bainite and martensite. Materials Science and Technology, 1994. 10(3): pp.209-214.

DOI: 10.1179/mst.1994.10.3.209

[8] Tomita, Y., Effect of martensite morphology on mechanical properties of low alloy steels having mixed structure of martensite and lower bainite. Materials Science and Technology, 1991. 7(4): pp.299-306.

DOI: 10.1179/mst.1991.7.4.299

[9] Park, K.-T. and H.-J. Kwon, Interpretation of the strengthening of steel with lower bainite and martensite mixed microstructure. Metals and Materials International, 2001. 7(2): pp.95-99.

DOI: 10.1007/bf03026946

[10] ASTM, Standard Test Method for Determining Volume Fraction by Systematic Manual Point Count, in E562-11. 2016. p.7.

[11] Totten, G.E. and M.A.H. Howes, Steel Heat Treatment Handbook. 1997: CRC Press, Boca Raton, Florida.

[12] Ju. Y. Goodall, A.D., C. Davis and M. Strangwood, Characterization of precipitation and coarsening of carbides during tempering in a low alloyed quenched and tempered steel, in Thermec 2018. 2018: Paris, France.

DOI: 10.4028/www.scientific.net/msf.941.33
