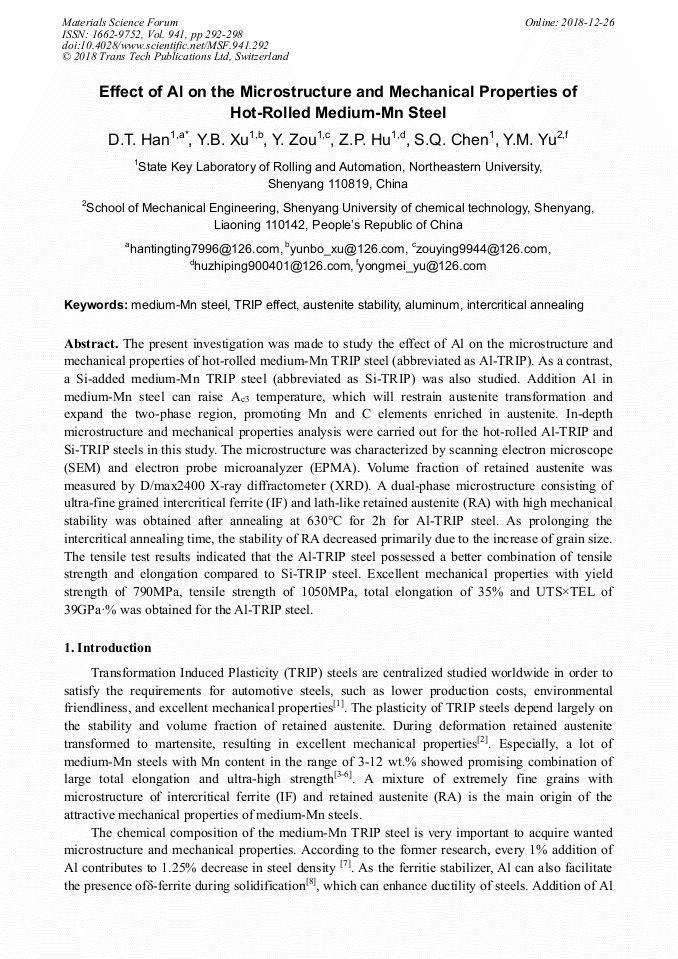

Effect of Al on the Microstructure and Mechanical Properties of Hot-Rolled Medium-Mn Steel

Abstract:

The present investigation was made to study the effect of Al on the microstructure and mechanical properties of hot-rolled medium-Mn TRIP steel (abbreviated as Al-TRIP). As a contrast, a Si-added medium-Mn TRIP steel (abbreviated as Si-TRIP) was also studied. Addition Al in medium-Mn steel can raise Ac3 temperature, which will restrain austenite transformation and expand the two-phase region, promoting Mn and C elements enriched in austenite. In-depth microstructure and mechanical properties analysis were carried out for the hot-rolled Al-TRIP and Si-TRIP steels in this study. The microstructure was characterized by scanning electron microscope (SEM) and electron probe microanalyzer (EPMA). Volume fraction of retained austenite was measured by D/max2400 X-ray diffractometer (XRD). A dual-phase microstructure consisting of ultra-fine grained intercritical ferrite (IF) and lath-like retained austenite (RA) with high mechanical stability was obtained after annealing at 630°C for 2h for Al-TRIP steel. As prolonging the intercritical annealing time, the stability of RA decreased primarily due to the increase of grain size. The tensile test results indicated that the Al-TRIP steel possessed a better combination of tensile strength and elongation compared to Si-TRIP steel. Excellent mechanical properties with yield strength of 790MPa, tensile strength of 1050MPa, total elongation of 35% and UTS×TEL of 39GPa·% was obtained for the Al-TRIP steel.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 292-298
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.292
• Online since: December 2018
• Authors: Ding Ting Han, Yun Bo Xu*, Ying Zou, Zhi Ping Hu, Shu Qing Chen, Yong Mei Yu
• Keywords: Aluminium, Austenite Stability, Intercritical Annealing, Medium-Mn Steel, TRIP Effect

References

[1] MERTINGER V, NAGY E, TRANTA F, et al. Strain-induced martensitic transformation in textured austenitic stainless steels[J]. Materials Science and Engineering: A, 2008,481-482:718-722.

DOI: 10.1016/j.msea.2007.02.165

[2] JACQUES P J. Transformation-induced plasticity for high strength formable steels[J]. Current Opinion in Solid State and Materials Science, 2004,8(3-4):259-265.

DOI: 10.1016/j.cossms.2004.09.006

[3] Lee S, Cooman B C D. Tensile Behavior of Intercritically Annealed 10 pct Mn Multi-phase Steel[J]. Metallurgical & Materials Transactions A, 2014, 45(2):709-716.

DOI: 10.1007/s11661-013-2047-6

[4] Lee S, Cooman B C D. Annealing Temperature Dependence of the Tensile Behavior of 10 pct Mn Multi-phase TWIP-TRIP Steel[J]. Metallurgical & Materials Transactions A, 2014, 45(13):6039-6052.

DOI: 10.1007/s11661-014-2540-6

[5] Zhao X, Shen Y, Qiu L, et al. Effects of Intercritical Annealing Temperature on Mechanical Properties of Fe-7.9Mn-0.14Si-0.05Al-0.07C Steel[J]. Materials, 2014, 7(12):7891.

DOI: 10.3390/ma7127891

[6] LEE C, JEONG J, HAN J, et al. Coupled strengthening in a medium manganese lightweight steel with an inhomogeneously grained structure of austenite[J]. Acta Materialia, 2015,84:1-8.

DOI: 10.1016/j.actamat.2014.10.032

[7] CAI Z H, CAI B, DING H, et al. Microstructure and deformation behavior of the hot-rolled medium manganese steels with varying aluminum-content[J]. Materials Science and Engineering: A, 2016,676:263-270.

DOI: 10.1016/j.msea.2016.08.119

[8] SUH D, PARK S, OH C, et al. Influence of partial replacement of Si by Al on the change of phase fraction during heat treatment of TRIP steels[J]. Scripta Materialia, 2007,57(12):1097-1100.

DOI: 10.1016/j.scriptamat.2007.08.022

[9] SUH D, PARK S, LEE T, et al. Influence of Al on the Microstructural Evolution and Mechanical Behavior of Low-Carbon, Manganese Transformation-Induced-Plasticity Steel[J]. 2010,41(2):397-408.

DOI: 10.1007/s11661-009-0124-7

[10] PARK S J, HWANG B, LEE K H, et al. Microstructure and tensile behavior of duplex low-density steel containing 5mass% aluminum[J]. Scripta Materialia, 2013,68(6):365-369.

DOI: 10.1016/j.scriptamat.2012.09.030

[11] LEE S, De COOMAN B C. Effect of the Intercritical Annealing Temperature on the Mechanical Properties of 10?Pct Mn Multi-phase Steel[J]. 2014,45(11):5009-5016.

DOI: 10.1007/s11661-014-2449-0

[12] Zurob H S, Panahi D, Hutchinson C R, et al. Self-Consistent Model for Planar Ferrite Growth in Fe-C-X Alloys[J]. Metallurgical & Materials Transactions A, 2013, 44(8):3456-3471.

DOI: 10.1007/s11661-012-1479-8

[13] Speer J G, Assunção F C R, Matlock D K, et al. The quenching and partitioning, process: background and recent progress[J]. Materials Research, 2005, 8(4).

DOI: 10.1590/s1516-14392005000400010

[14] CAI Z H, DING H, MISRA R D K, et al. Austenite stability and deformation behavior in a cold-rolled transformation-induced plasticity steel with medium manganese content[J]. Acta Materialia, 2015,84:229-236.

DOI: 10.1016/j.actamat.2014.10.052

[15] Wang J, Zwaag S V D. Stabilization mechanisms of retained austenite in transformation-induced plasticity steel[J]. Metallurgical & Materials Transactions A, 2001, 32(6):1527-1539.

DOI: 10.1007/s11661-001-0240-5

[16] LEE S, LEE S, De COOMAN B C. Mn partitioning during the intercritical annealing of ultrafine-grained 6% Mn transformation-induced plasticity steel[J]. Scripta Materialia, 2011,64(7):649-652.

DOI: 10.1016/j.scriptamat.2010.12.012

[17] Itami A, Takahashi M, Ushioda K. Plastic Stability of Retained Austenite in the Cold-rolled 0.14%C-1.9%Si1.7%Mn Sheet Steel[J]. Isij International, 2007, 35(9):1121-1127.

DOI: 10.2355/isijinternational.35.1121

[18] Lee S J, Lee Y K. Effect of Austenite Grain Size on Martensitic Transformation of a Low Alloy Steel[J]. Materials Science Forum, 2005, 475:3169-3172.

DOI: 10.4028/www.scientific.net/msf.475-479.3169
