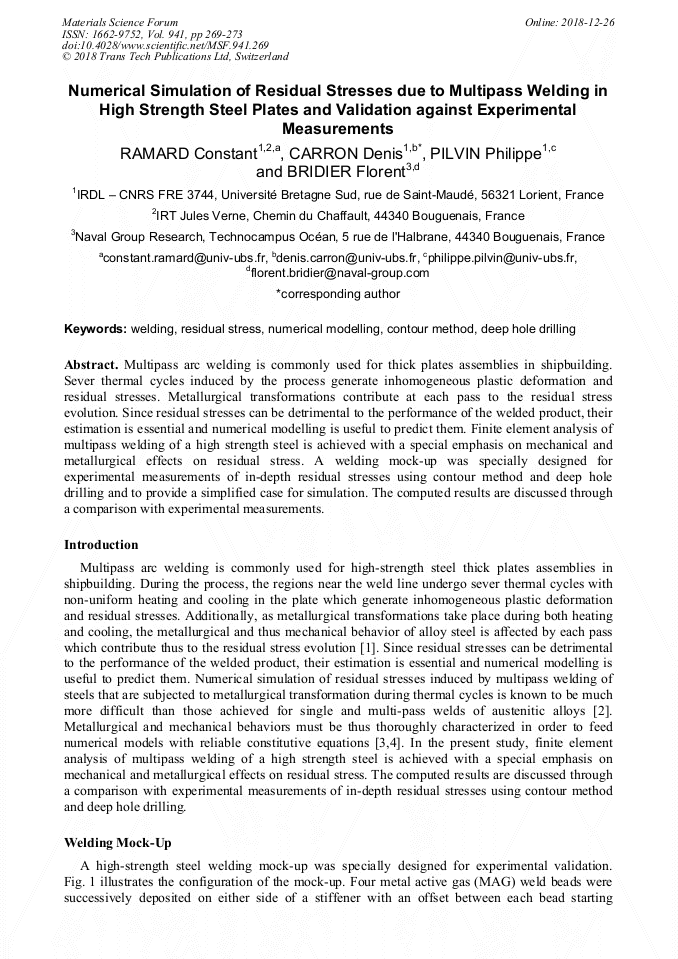

Numerical Simulation of Residual Stresses due to Multipass Welding in High Strength Steel Plates and Validation against Experimental Measurements

Abstract:

Multipass arc welding is commonly used for thick plates assemblies in shipbuilding. Sever thermal cycles induced by the process generate inhomogeneous plastic deformation and residual stresses. Metallurgical transformations contribute at each pass to the residual stress evolution. Since residual stresses can be detrimental to the performance of the welded product, their estimation is essential and numerical modelling is useful to predict them. Finite element analysis of multipass welding of a high strength steel is achieved with a special emphasis on mechanical and metallurgical effects on residual stress. A welding mock-up was specially designed for experimental measurements of in-depth residual stresses using contour method and deep hole drilling and to provide a simplified case for simulation. The computed results are discussed through a comparison with experimental measurements.

• Periodical: Materials Science Forum (Volume 941)
• Pages: 269-273
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.941.269
• Online since: December 2018
• Authors: Constant Ramard, Denis Carron*, Philippe Pilvin, Florent Bridier
• Keywords: Contour Method, Deep Hole Drilling, Numerical Modelling, Residual Stress, Welding

References

[1] J. A. Francis, H. K. D. H. Bhadeshia, P. J. Withers, Welding residual stresses in ferritic power plant steels, Mat. Sci. and Technology 23, 9 (2007) 1009-1020.

DOI: 10.1179/174328407x213116

[2] E. Feulvarch, V. Robin, J. M. Bergheau, Welding residual stresses in ferritic power plant steels, Sci. and Tech. of Welding and Joining 16,3 (2011) 221-226.

[3] A. De, T. DebRoy, A perspective on residual stresses in welding, Sci. and Tech. of Welding and Joining 16,3 (2011) 204-208.

DOI: 10.1179/136217111x12978476537783

[4] C. J. Hamelin et al., Validation of a numerical model used to predict phase distribution and residual stress in ferritic steel weldments, Acta Materialia 75 (2014) 1–19.

DOI: 10.1016/j.actamat.2014.04.045

[5] J. A. Goldak, A. Chakravarti, J. Bibby, A new finite element model for welding heat sources, Metall. Trans. B 15, 2 (1984) 299–305.

DOI: 10.1007/bf02667333

[6] J.B. Leblond, J.C. Devaux, A new kinetic model for anisothermal metallurgical transformations in steels including effect of austenite grain size, Acta Metallurgica, 32, 1 (1984) 137-146.

DOI: 10.1016/0001-6160(84)90211-6

[7] M. B. Prime, Cross-sectional mapping of residual stresses by measuring the surface contour after a cut, J. Eng. Mat. & Techn. 123 (2001) 162-168.

DOI: 10.1115/1.1345526

[8] P. Pagliaro et al., Measuring inaccessible residual stresses using multiple methods and superposition, Exp. Mechanics, 5,7 (2011) 1123-1134.

DOI: 10.1007/s11340-010-9424-5

[9] B. Levieil et al., User Influence on Two Complementary Residual Stress Determination Methods: Contour Method and Incremental X-Ray Diffraction, Exp. Mechanics, 56, 9 (2016) 1641-1652.

DOI: 10.1007/s11340-016-0189-3
