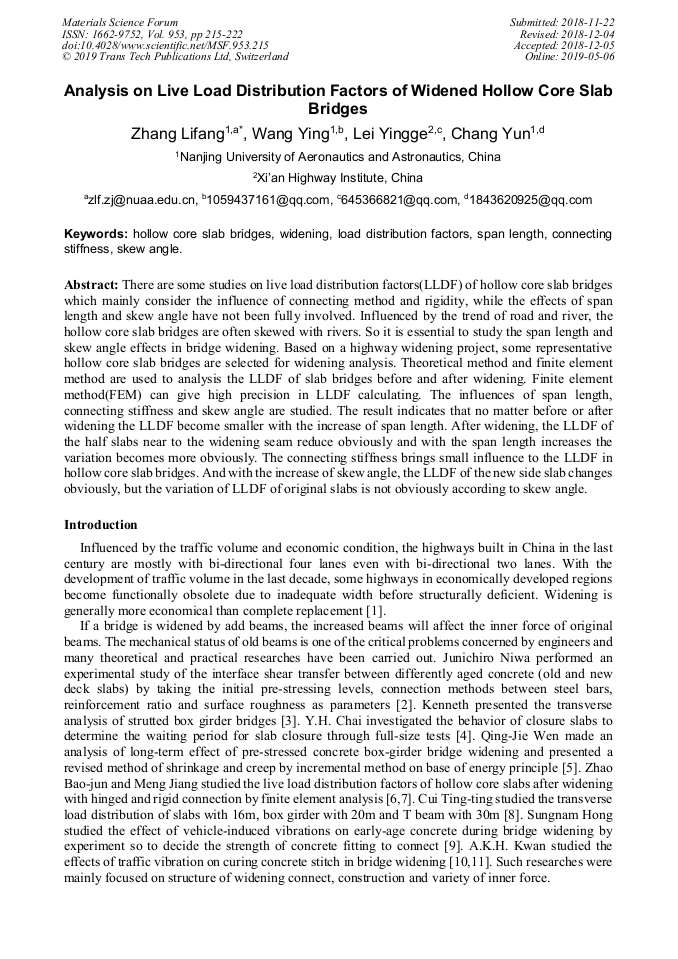

Analysis on Live Load Distribution Factors of Widened Hollow Core Slab Bridges

Abstract:

There are some studies on live load distribution factors(LLDF) of hollow core slab bridges which mainly consider the influence of connecting method and rigidity, while the effects of span length and skew angle have not been fully involved. Influenced by the trend of road and river, the hollow core slab bridges are often skewed with rivers. So it is essential to study the span length and skew angle effects in bridge widening. Based on a highway widening project, some representative hollow core slab bridges are selected for widening analysis. Theoretical method and finite element method are used to analysis the LLDF of slab bridges before and after widening. Finite element method(FEM) can give high precision in LLDF calculating. The influences of span length, connecting stiffness and skew angle are studied. The result indicates that no matter before or after widening the LLDF become smaller with the increase of span length. After widening, the LLDF of the half slabs near to the widening seam reduce obviously and with the span length increases the variation becomes more obviously. The connecting stiffness brings small influence to the LLDF in hollow core slab bridges. And with the increase of skew angle, the LLDF of the new side slab changes obviously, but the variation of LLDF of original slabs is not obviously according to skew angle.

• Periodical: Materials Science Forum (Volume 953)
• Pages: 215-222
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.953.215
• Online since: May 2019
• Authors: Li Fang Zhang*, Ying Wang, Ying Ge Lei, Yun Chang
• Keywords: Connecting Stiffness, Hollow Core Slab Bridges, Load Distribution Factors, Skew Angle, Span Length, Widening

References

[1] ACI Committee 345. Guide for widening highway bridges, ACI 345.2R-13, American Concrete Institute, Michigan, USA; (2013).

[2] Junichiro Niwa, Fakhruddin, Koji Matsumoto, etc. Experimental study on shear behavior of the interface between old and new deck slabs. Engineering Structures. 126(2016) 278-291.

DOI: 10.1016/j.engstruct.2016.07.063

[3] Kenneth W. Shushkewich. Transverse Analysis of Strutted Box Girder Bridges. Journal of Bridge Engineering. 11(2006) 33-47.

DOI: 10.1061/(asce)1084-0702(2006)11:1(33)

[4] Y.H. Chai and H.J. Hung. Waiting Period for Closure Pours in Bridge Widening or Staged Construction. Journal of Bridge Engineering. 21(2016) 04016006.

DOI: 10.1061/(asce)be.1943-5592.0000875

[5] Qing-Jie Wen. Long-term effect analysis of prestressed concrete box-girder bridge widening. Construction and Building Materials. 25(2011): 1580-1586.

DOI: 10.1016/j.conbuildmat.2010.09.041

[6] Zhao Bao-jun, Dang Zhi-ping, Zhu Guo-rui. Analysis on Coupling Force of New and Old Beams After Widening Hollow core slab Bridge. Journal of Architecure and Civil Engineering. 33(2016)61-66.

[7] Meng Jiang. Widening Design Method for Assembly Bridge. Chang'an University.2013.6.

[8] Cui Ting-ting. Research on Transverse Load Distribution and Lateral Reduction Coefficient in Widening of Highway Girder Bridges. Beijing Jiaotong University. 2016.6.

[9] Sungnam Hong, Sun-Kyu Park. Effect of vehicle-induced vibrations on early-age concrete during bridge widening. Construction and Building Materials. 77(2015) 179-186.

DOI: 10.1016/j.conbuildmat.2014.12.043

[10] A.K.H. Kwan, P.L.Ng. Effects of traffic vibration on curing concrete stitch: Part I-test method and control program. Engineering Structures. 29(2007) 2871-2880.

DOI: 10.1016/j.engstruct.2007.01.029

[11] P.L.Ng, A.K.H. Kwan. Effects of traffic vibration on curing concrete stitch: Part II-cracking, debonding and strength reduction. Engineering Structures. 29(2007) 2881-2892.

DOI: 10.1016/j.engstruct.2007.01.033

[12] Huang Xueyang, Xia Zhanghua, Zong Zhouhong, Chen Yangli. Research on bearing capacity of skewed hollow core slab bridge after widening based on model test. Journal of Fuzhou University (Natural Science Edition).43(2015)231-237.

[13] Xu Gang, Static Experimental Study on Longitudinal Connection Model in Widening of Skew Continuous Bridge with Hollow core slab. Journal of Highway and Transportation Research and Development. 28 (2011)67-72.

[14] Tevfik Terzioglu, Mary Beth D. Hueste, John B. Mander. Live Load Distribution Factors for Spread Slab Beam Bridges. Journal of Bridge Engineering. 22(2017) 04017067.

DOI: 10.1061/(asce)be.1943-5592.0001100

[15] Shin-Tai Song, Y.H. Chai, Susan E. Hida. Live-load Distribution Factors for Concrete Box-Girder Bridges. Journal of Bridge Engineering. 8(2003)273-280.

DOI: 10.1061/(asce)1084-0702(2003)8:5(273)
