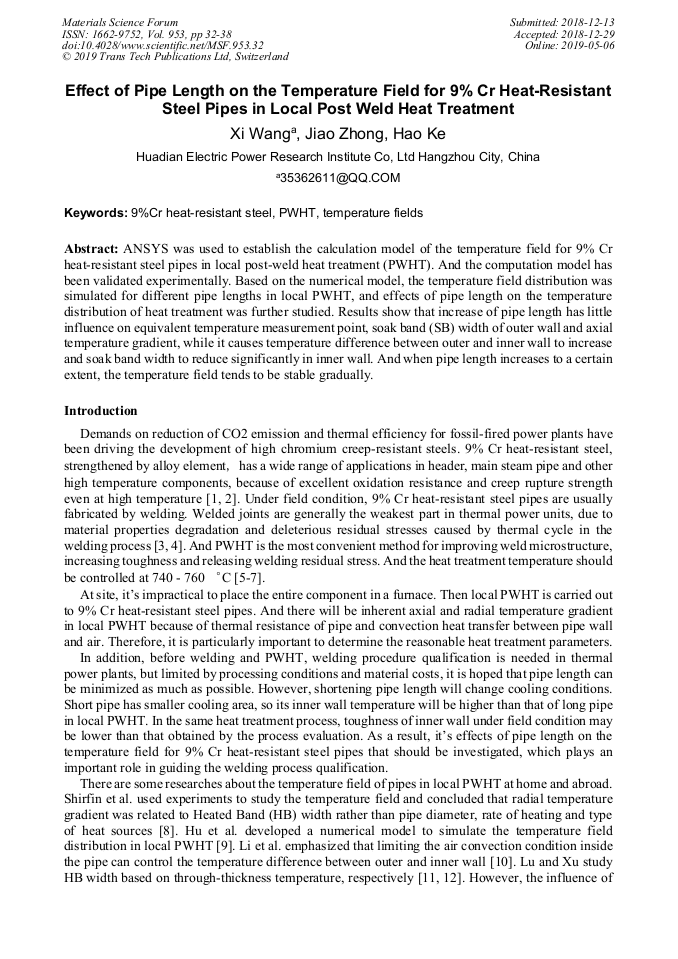

Effect of Pipe Length on the Temperature Field for 9% Cr Heat-Resistant Steel Pipes in Local Post Weld Heat Treatment

Abstract:

ANSYS was used to establish the calculation model of the temperature field for 9% Cr heat-resistant steel pipes in local post-weld heat treatment (PWHT). And the computation model has been validated experimentally. Based on the numerical model, the temperature field distribution was simulated for different pipe lengths in local PWHT, and effects of pipe length on the temperature distribution of heat treatment was further studied. Results show that increase of pipe length has little influence on equivalent temperature measurement point, soak band (SB) width of outer wall and axial temperature gradient, while it causes temperature difference between outer and inner wall to increase and soak band width to reduce significantly in inner wall. And when pipe length increases to a certain extent, the temperature field tends to be stable gradually.

• Periodical: Materials Science Forum (Volume 953)
• Pages: 32-38
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.953.32
• Online since: May 2019
• Authors: Xi Wang, Jiao Zhong, Hao Ke
• Keywords: 9%Cr Heat-Resistant Steel, PWHT, Temperature Fields

References

[1] Yang Fu, Li Weimin, Ren Yongning. Alloy steel used for supercritical and ultra-supercritical pressure boiler[J]. Electrical Equipment. 2004, 5(10):41-46.

[2] Bugge J, Kjær S, Blum R. High-efficiency coal-fired power plants development and perspectives[J]. Energy, 2006, 31(10–11):1437-1445.

DOI: 10.1016/j.energy.2005.05.025

[3] Zhang Yinglin, Wang Xue, Zhang Jianqiang. Discussion on P91 steel's welding joint property and its existing problems[J]. Water Conservancy & Electric Power Machinery, 2001, 23(1):22-26.

[4] Li Hongqiang, Zhang Chaoqun, Xu Yun, etc. Common defects and supervision measures of P91 steel pipe in thermal power plant[C]. The metal materials committee conference of China society for electrical engineering.(2015).

[5] Zhao Yongtao, Zhang Shaohui, Dong Junhui,etc. Effect of post welding heat treatment on microstructure and mechanical properties of P92 steel welded joint[J]. Heat Treatment of Metals, 2015, 40(7):33-36.

[6] Wang Xue, Zheng Jiangpeng, Shang Wei, etc. Prediction of Ac1 temperature in P92 steel weld metal[J]. China Welding, 2012,21(4):8-14.

[7] Xiao Ling, Zhu Ping, Shi Chuanyuan, etc. Suitable temper parameter for coarse grain zone of new type heat-resistant steel P92[J]. Welding, 2006(11):52-55.

[8] Shifrin G E, Rich M I. Effect of heat source width in local heat treatment of piping[J]. Welding Journal, 1973,53(12):792-799.

[9] Hu Lei, Wang Xue, Meng Qingyun, etc. Numerical simulation of temperature field in 9% Cr steel thick-wall pipe in local PWHT[J]. Transactions of the China Welding Institution, 2015(12):13-16.

[10] Li P, Fan R, Hao L. Temperature field analysis of main steam pipe under local post weld heat treatment[J]. Chinese Welding, 2010, 19(4):20-24.

[11] Lu H, Wang J, Murakawa H. Mechanical Behavior in Local Postweld Heat Treatment (Report III): Criteria for heated band width based on through-thickness temperature distribution (Mechanics, Strength & Structure Design) [J]. Transactions of Jwri, 2013, 27:89-95.

[12] Xu L, Miao Y, Jing H, et al. Experimental and Numerical Investigation of Heated Band Width for Local Post Weld Heat Treatment of ASME P92 Steel Pipe[J]. Journal of Pressure Vessel Technology, 2014, 136(1):011401.

DOI: 10.1115/1.4024582

[13] Deng D, Murakawa H. Numerical simulation of temperature field and residual stress in multi-pass welds in stainless steel pipe and comparison with experimental measurements[J]. Computational Materials Science, 2006, 37(3):269-277.

DOI: 10.1016/j.commatsci.2005.07.007

[14] Wang Xue, Hu Lei, Chen Dongxu, etc. Influence of internal air flow on temperature field of large diameter and thick wall P92 pipe during local PWHT[J]. Transactions of the China Welding Institution, 2016,37(11):104-108+133-134.
